Description
Twist plug, IP54, M_ x 1.5 mm, with closed sealing membrane, black
Sealing range 8 - 13,5 mm, Thread length 12 mm
#20302001 | Dimensions: 24 x 24 x 20 mm
Twist plug
Technical Data
electrical characteristics
| Type of protection | IP54 |
|---|
Colours
| Accessory colour | deep black |
|---|
Dimensions
| Width | 24 mm |
|---|---|
| Length | 24 mm |
| Height | 20 mm |
| Weight | 0.002 kg |
Material characteristics
| UV-resistant | no |
|---|---|
| Halogen free | yes |
mechanical properties
| for wall thickness max | 9 mm |
|---|---|
| for wall thickness min | 1 mm |
| for sealing range min | 8 mm |
| for sealing range max | 13.5 mm |
Ambient conditions
| Installation location | Indoors |
|---|
Sales Information
| EAN | 4013902891825 |
|---|---|
| ETIM Class | EC000451 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 50 |
Logistic data
Inner packaging
| EAN / GTIN | 4013902354870 |
|---|---|
| Width | 0.115 m |
| Weight | 0.1 kg |
| Height | 0.083 m |
| Quantity | 50 pieces |
| Depth | 0.083 m |
Outer packaging
| EAN / GTIN | 4013902332632 |
|---|---|
| Width | 0.357 m |
| Weight | 1.415 kg |
| Height | 0.127 m |
| Quantity | 600 pieces |
| Depth | 0.257 m |
Pallet
| EAN / GTIN | 4013902332649 |
|---|---|
| Width | 0.8 m |
| Weight | 170.82 kg |
| Height | 1.67 m |
| Quantity | 64800 pieces |
| Depth | 1.2 m |
Piece
| EAN / GTIN | 4013902891825 |
|---|---|
| Width | 0.024 m |
| Weight | 0.002 kg |
| Height | 0.02 m |
| Quantity | 1 pieces |
| Depth | 0.024 m |
Downloads
Download Data Sheet
Dimensioned drawing
Planningdata
Tender text
Tender text
(20302001.TXT 436 B)
Log in to download tender texts.
CAD-Data
CAD-Data
(Download 3D-CAD-Data)
Log in to download tender texts.
Similar products

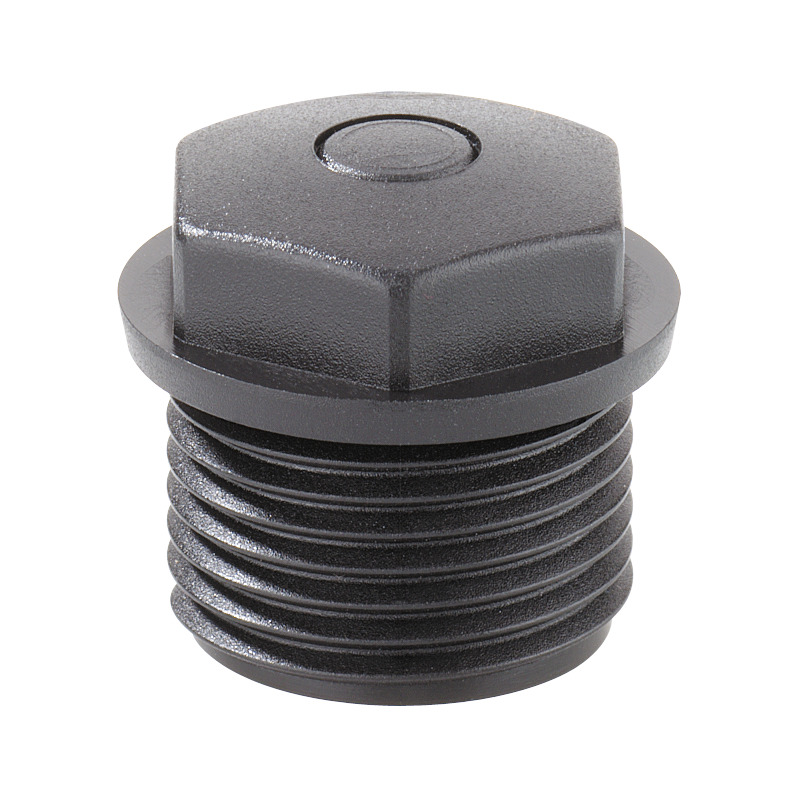

Twist plugWST M16/sw
