Description

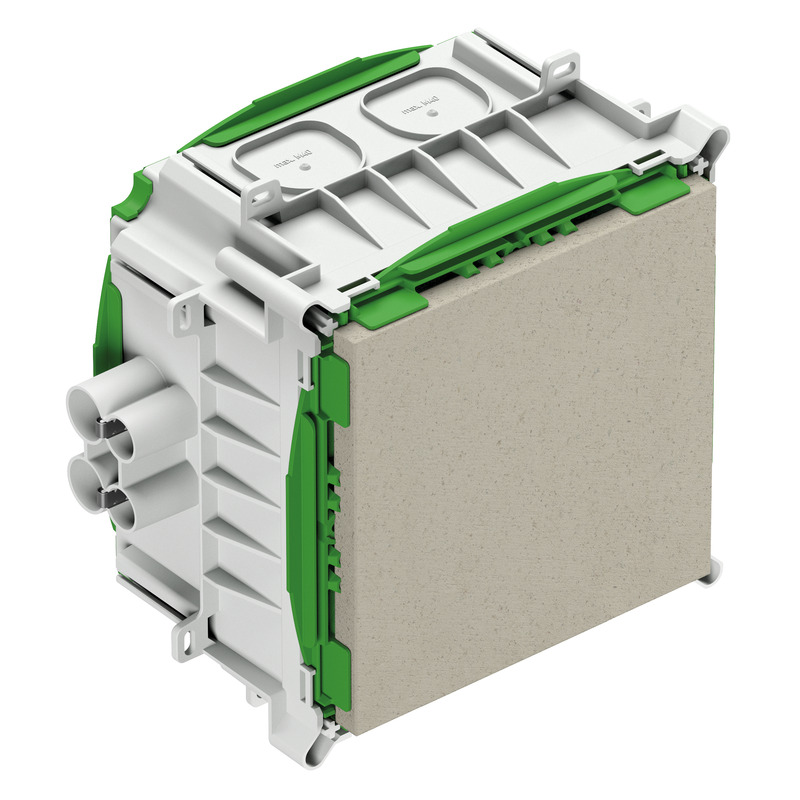

Installation housing, for prefabricated construction, halogen-free, for the installation of LV/HV/LED lights and speakers, announcement and call systems, for the installation of VDE-tested lights to DIN EN 60598 (VDE 0711), and with F or MM marking, protection class IP30, rated insulation voltage: 400V AC, Halogen free
maximum installation depth for luminaires, speakers, announcement and call systems: 100 mm, lamp output halogen max. 50 W, lamp output LED max. 20 W, Outlet aperture: Fermacell® plasterboard, variable to max. 150 mm x 150 mm, 8 combi-conduit entries 4 x 16 mm, 4 x 19 mm, integrated conduit stopper and strain relief for conduits 16 mm, 19 mm, adhesive fixing or nail installation, combination conduit insertion and membrane for perforation, sealing range M16 - M40
