Deep box, as top enclosure for all U 71 boxes when using large concrete conduits up to M25, screw spacing 60 mm, provides additional installation space of 44mm in depth, protection class IP00, rated insulation voltage: 400V AC, Halogen free

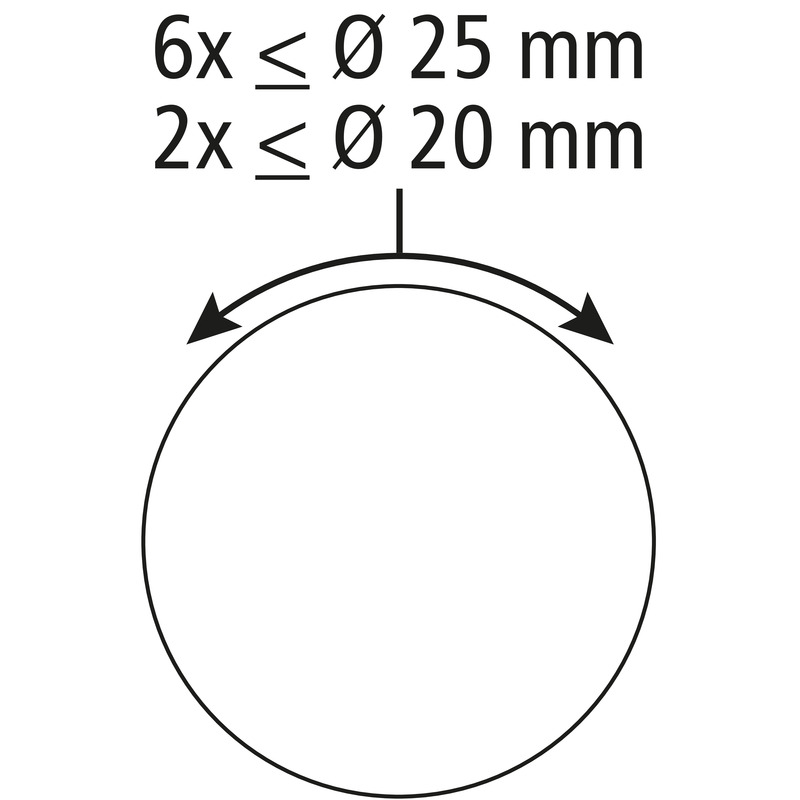

attachable, membrane for perforation, sealing range M16 - M25
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP00 |
| Suitable for | Concrete construction |
| UL Type Rating | not specified |
| Cover colour | other |
|---|
| Width | 71 mm |
|---|---|
| Length | 71 mm |
| Height | 49 mm |
| Weight | 0.02 kg |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| Type of fastening | attachable |
|---|
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| EAN | 4013902913053 |
|---|---|
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 1 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| EAN / GTIN | 4013902347445 |
|---|---|
| Width | 0.457 m |
| Weight | 2.42 kg |
| Height | 0.432 m |
| Quantity | 100 pieces |
| Depth | 0.23 m |
| EAN / GTIN | 4013902347452 |
|---|---|
| Width | 0.8 m |
| Weight | 85.76 kg |
| Height | 1.86 m |
| Quantity | 2800 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902913053 |
|---|---|
| Width | 0.071 m |
| Weight | 0.02 kg |
| Height | 0.049 m |
| Quantity | 1 pieces |
| Depth | 0.071 m |
