Prism terminal for connecting aluminium and copper conductors to PE and N terminals (GPE, GN) and to NH switchgear in AKi fuse and switch housings (AKi-SS, AKi-ST)
for AL/CU conductors 1x (16-70)rm/rf/sm, aluminium conductor see technical appendix, Set = 3 pcs.
| Number of poles | 1 |
|---|---|
| shockproof | No |
| Connection 1: Connection type | Screws |
| Connection 1: Clamping points per pole | 1 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Suitable for Al conductors | 1 |
| Connection 1: Connectable conductor cross-section, fine-wire without ferrule (min) | 16 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire without ferrule (max) | 70 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (min) | 16 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (max) | 70 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 16 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 70 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 16 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 70 mm² |
| Width | 27 mm |
|---|---|
| Length | 20.2 mm |
| Height | 21 mm |
| Weight | 0.089 kg |
| Connection 1: Tightening moment | 3.6 Nm |
|---|
| EAN | 4013902859016 |
|---|---|
| ETIM Class | EC002498 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 1 |
| EAN / GTIN | 4013902340873 |
|---|---|
| Width | 0.197 m |
| Weight | 1.59 kg |
| Height | 0.097 m |
| Quantity | 10 pieces |
| Depth | 0.14 m |
| EAN / GTIN | 4013902340866 |
|---|---|
| Width | 0.8 m |
| Weight | 966.46 kg |
| Height | 1.891 m |
| Quantity | 5940 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902859016 |
|---|---|
| Width | 0.027 m |
| Weight | 0.089 kg |
| Height | 0.021 m |
| Quantity | 1 pieces |
| Depth | 0.021 m |
Tender text
(07670001.TXT 530 B)
Log in to download tender texts.

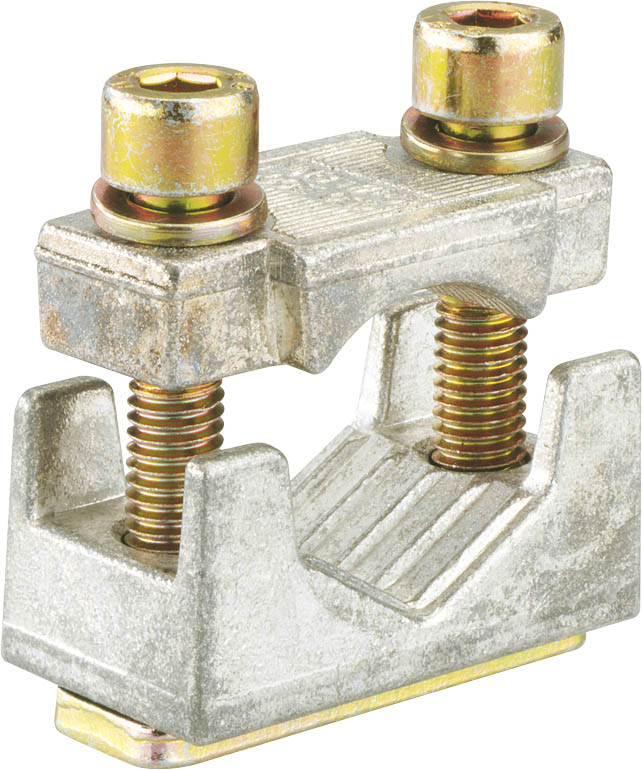

Prism terminal
KP NH 1
Productnumber 07670101
for AL/CU conductors 1x (70-150)rm/rf/sm, aluminium conductor see...
Prism terminal for connecting aluminium and copper conductors to PE and N terminals (GPE, GN) and to...

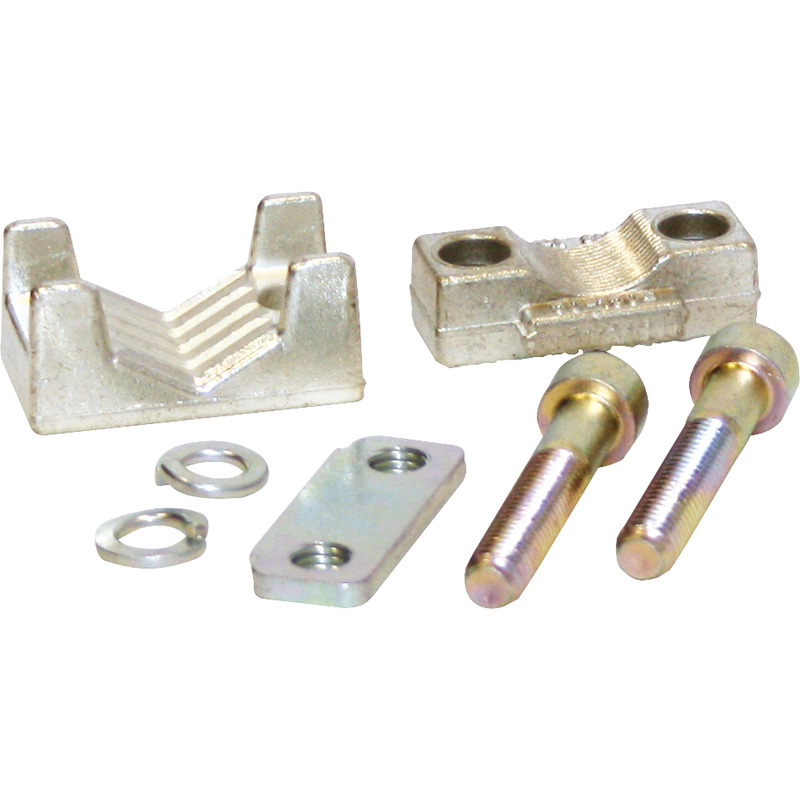

Prism terminal
