Description

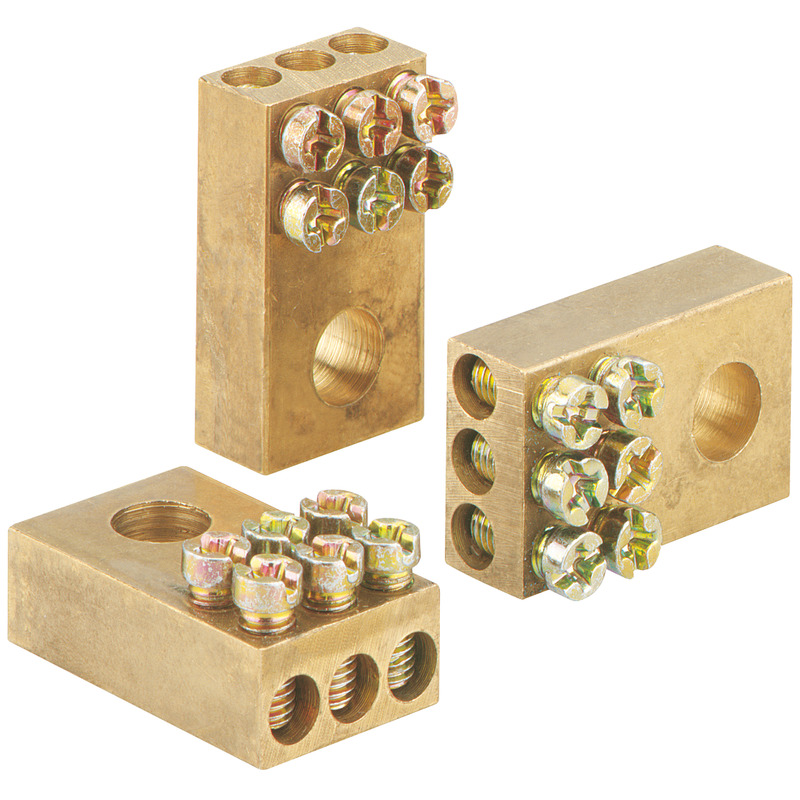

Tunnel terminal for NH 00 fuse switch disconnector for connecting 3 x 1.5-16 mm²
Set = 3 pcs.
This article is archived!
Technical Data
electrical characteristics
| shockproof | No |
|---|---|
| Connection 1: Connection type | Screws |
| Connection 1: Clamping points per pole | 1 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Suitable for Al conductors | 0 |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (min) | 2.5 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (max) | 16 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 2.5 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 25 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 2.5 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 25 mm² |
| Connection 2: Connection type | Screws |
| Connection 2: Suitable for Cu conductors | 1 |
| Connection 2: Suitable for Al conductors | 0 |
| Connection 2: Connectable conductor cross-section, fine-wire with ferrule (min) | 2.5 mm² |
| Connection 2: Connectable conductor cross-section, fine-wire with ferrule (max) | 10 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (min) | 2.5 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (max) | 16 mm² |
| Connection 2: Connectable conductor cross-section, stranded (min) | 2.5 mm² |
| Connection 2: Connectable conductor cross-section, stranded (max) | 16 mm² |
Dimensions
| Width | 22 mm |
|---|---|
| Length | 40 mm |
| Height | 18 mm |
| Weight | 0.189 kg |
mechanical properties
| Connection 1: Tightening moment | 2 Nm |
|---|
Sales Information
| EAN | 4013902858941 |
|---|---|
| ETIM Class | EC002498 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 1 |
Logistic data
Outer packaging
| EAN / GTIN | 4013902325726 |
|---|---|
| Width | 0.197 m |
| Weight | 1.96 kg |
| Height | 0.097 m |
| Quantity | 10 pieces |
| Depth | 0.14 m |
Pallet
| EAN / GTIN | 4013902325733 |
|---|---|
| Width | 0.8 m |
| Weight | 57.2 kg |
| Height | 1.891 m |
| Quantity | 200 pieces |
| Depth | 1.2 m |
Piece
| EAN / GTIN | 4013902858941 |
|---|---|
| Width | 0.022 m |
| Weight | 0.189 kg |
| Height | 0.018 m |
| Quantity | 1 pieces |
| Depth | 0.04 m |
