Description
Connecting terminal, 1-pole, stackable, for one or more-wired leads and for laminated flat copper
Upgrade kit for 5-pole 1-pole
#67065001 | Dimensions: 31 x 109 x 99 mm
Terminal
Technical Data
electrical characteristics
| Rated operating voltage AC | 690 V |
|---|---|
| Rated operating voltage DC | 750 V |
| Rated insulation voltage AC | 1000 V |
| Rated connecting capacity | 150 mm² |
| Rated current | 309 A |
| Number of poles | 1 |
| shockproof | No |
| Connection 1: Connection type | Screws |
| Connection 1: Strip length | 38 mm |
| Connection 1: Clamping points per pole | 2 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Suitable for Al conductors | 1 |
| Connection 1: Connectable conductor cross-section, fine-wire without ferrule (min) | 50 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire without ferrule (max) | 150 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (min) | 50 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (max) | 150 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 35 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 150 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 50 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 150 mm² |
Dimensions
| Width | 31 mm |
|---|---|
| Length | 109 mm |
| Height | 99 mm |
| Weight | 0.305 kg |
Material characteristics
| Flammability class according with UL94 | V2 |
|---|
mechanical properties
| Connection 1: Tightening moment | 20 Nm |
|---|
Sales Information
| EAN | 4013902859313 |
|---|---|
| ETIM Class | EC000897 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 1 |
Material
| Insulating body material | Thermoplastic |
|---|
Logistic data
Outer packaging
| EAN / GTIN | 4013902342464 |
|---|---|
| Width | 0.357 m |
| Weight | 7.84 kg |
| Height | 0.127 m |
| Quantity | 25 pieces |
| Depth | 0.257 m |
Pallet
| EAN / GTIN | 4013902342471 |
|---|---|
| Width | 0.8 m |
| Weight | 864.72 kg |
| Height | 1.67 m |
| Quantity | 2700 pieces |
| Depth | 1.2 m |
Piece
| EAN / GTIN | 4013902859313 |
|---|---|
| Width | 0.031 m |
| Weight | 0.305 kg |
| Height | 0.099 m |
| Quantity | 1 pieces |
| Depth | 0.109 m |
Downloads
Download Data Sheet
Planningdata
Tender text
Tender text
(67065001.TXT 396 B)
Log in to download tender texts.
Similar products

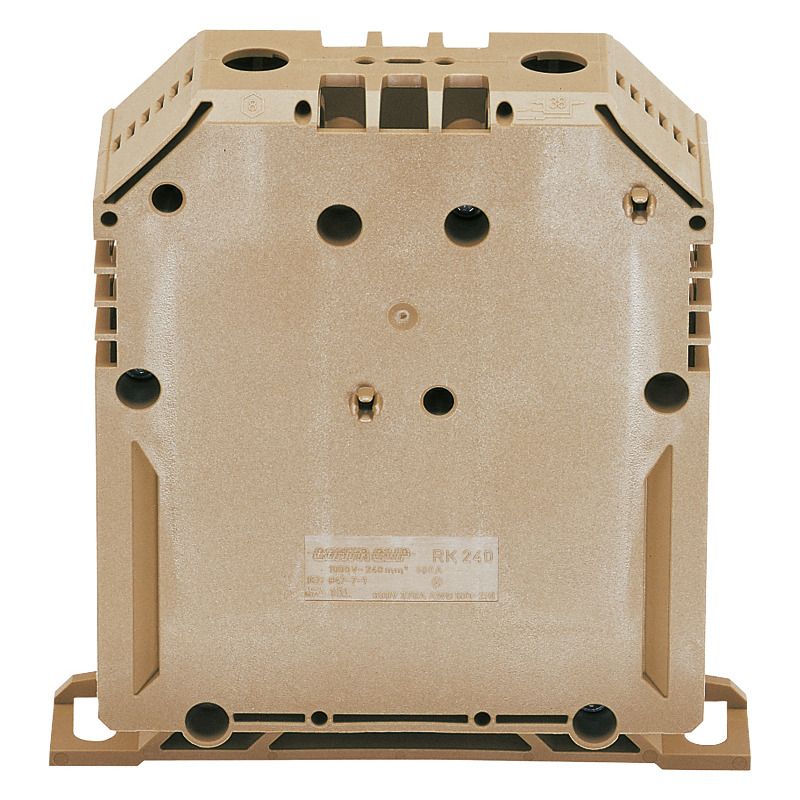

TerminalURS RK1-240mm²
