#04155301 | Dimensions: 640 x 440 x 179 mm
Busbar enclosures
Busbar housing with additional connection space, Busbar system, 5-pole, without terminals, for individual fitting, with transparent cover, 4 x enclosure connectors (GGV)
with busbar system, 5-pole 250A, with copper rails, L1...L3: 12 x 10 mm, N: 12 x 10 mm, PE: 12 x 10 mm
| Rated insulation voltage AC | 690 V |
|---|---|
| Protection class | II |
| Type of protection | IP65 |
| with rail system | yes |
| UL Type Rating | 3R |
| Width | 640 mm |
|---|---|
| Length | 440 mm |
| Height | 179 mm |
| Weight | 7.73 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Type of fastening | Surface mounted |
|---|---|
| Impact strength | IK08 |
| Cover screw torque | 2.5 Nm |
| Stackable | yes |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902987627 |
|---|---|
| ETIM Class | EC002274 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate |
| Sealing material | Polyurethane |
| Cover screw material | Polyamide, glass-fibre reinforced |
| EAN / GTIN | 4013902987627 |
|---|---|
| Width | 0.655 m |
| Weight | 8.41 kg |
| Height | 0.27 m |
| Quantity | 1 pieces |
| Depth | 0.455 m |
| EAN / GTIN | 4013902328840 |
|---|---|
| Width | 0.8 m |
| Weight | 152.56 kg |
| Height | 1.74 m |
| Quantity | 16 pieces |
| Depth | 1.2 m |
Tender text
(04155301.TXT 685 B)
Log in to download tender texts.

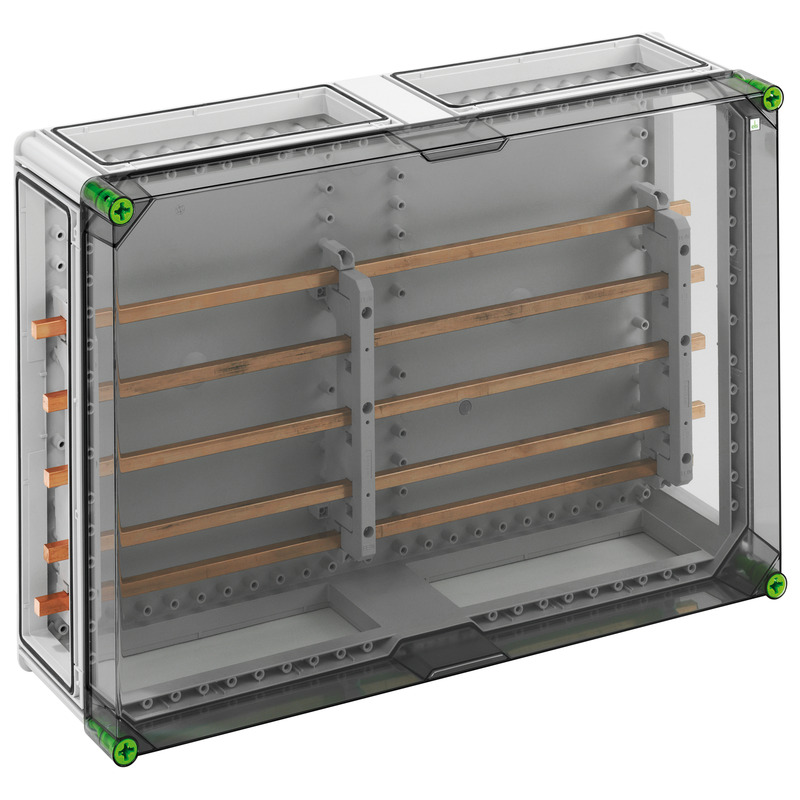

Busbar enclosures
GSi 554 Plus
Productnumber 04155401
with busbar system, 5-pole 400A, with copper rails, L1...L3: 20 x 10...
Busbar housing with additional connection space, Busbar system, 5-pole, without terminals, for...

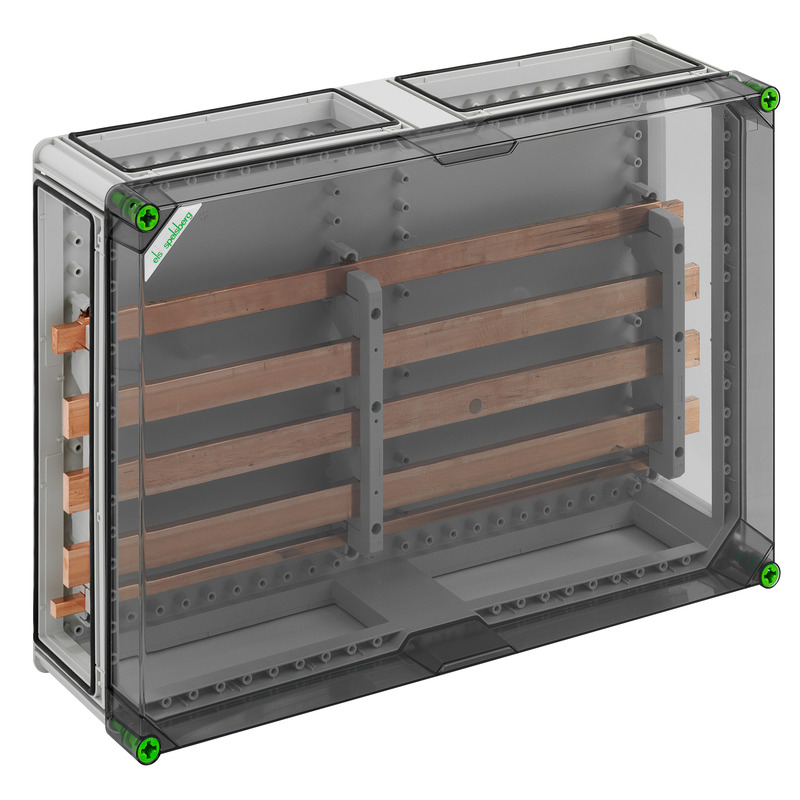

Busbar enclosures
