Description

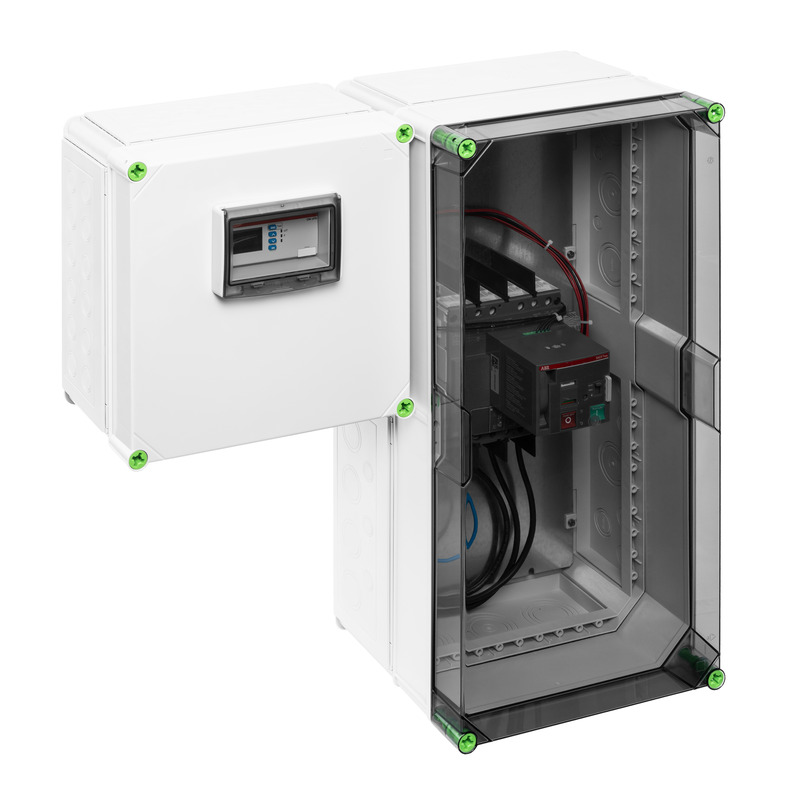

Network and system protection enclosure as disconnection point in accordance with VDE-AR-N 4105 for photovoltaic systems and combined heat and power plants, rated current of the circuit-breaker 100 A, ICu: 50 kA (415V), LS/I trip unit setting range: 40-100 A, rated power: 28-70 kVA, supplied in assemblies for individual configuration on installation location, simple combination using plug-in system and enclosed accessories, incl. with GFS 14-m flange set and two GFL 381-m flanges (3xM63/M50/M40) for closing the sides of the enclosure, can be individually extended with additional GTi enclosure solutions
3-pole for TN-S, TN-C, TN-C-S - Systems,
MCCB connections: M6 screw terminal, PE/N - Terminals: Clamp terminal 2 x 50 mm²
