Description

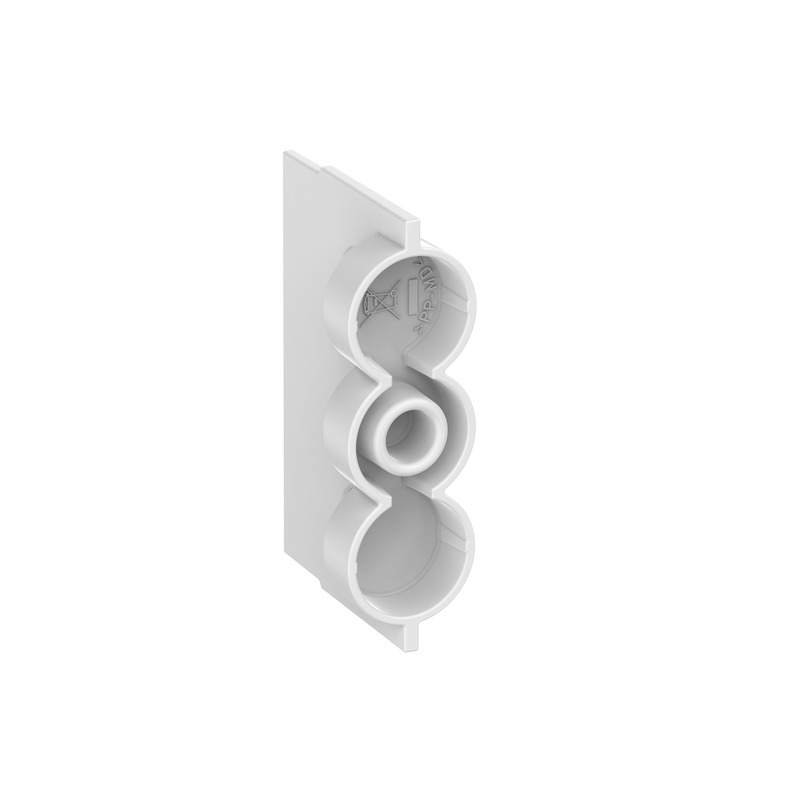

Partition wall in insulating material for separation of power circuits
for Abox 025/2
#89500201 | Dimensions: 23 x 72 x 43,5 mm
Partition wall
Technical Data
Colours
| Accessory colour | light grey |
|---|
Dimensions
| Width | 23 mm |
|---|---|
| Length | 72 mm |
| Height | 43.5 mm |
| Weight | 0.0102 kg |
mechanical properties
| Type of accessory | other |
|---|
Sales Information
| EAN | 4013902676590 |
|---|---|
| ETIM Class | EC002498 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 1 |
Material
| Accessory material | Polypropylene |
|---|
Logistic data
Piece
| EAN / GTIN | 4013902676590 |
|---|---|
| Width | 0.023 m |
| Weight | 0.0102 kg |
| Height | 0.044 m |
| Quantity | 1 pieces |
| Depth | 0.072 m |
Outer packaging
| EAN / GTIN | 4013902681068 |
|---|---|
| Width | 0.357 m |
| Weight | 1.6 kg |
| Height | 0.127 m |
| Quantity | 120 pieces |
| Depth | 0.257 m |
Pallet
| EAN / GTIN | 4013902688739 |
|---|---|
| Width | 0.8 m |
| Weight | 172.9 kg |
| Height | 1.67 m |
| Quantity | 12960 pieces |
| Depth | 1.2 m |
