#80247001 | Dimensions: 87 x 87 x 52 mm

Junction box

Abox SLK-2,5²

Junction box, protection class IP66, nominal cross-section 2.5 mm², U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion...

Color variants

Login to see price

Remember product

Description

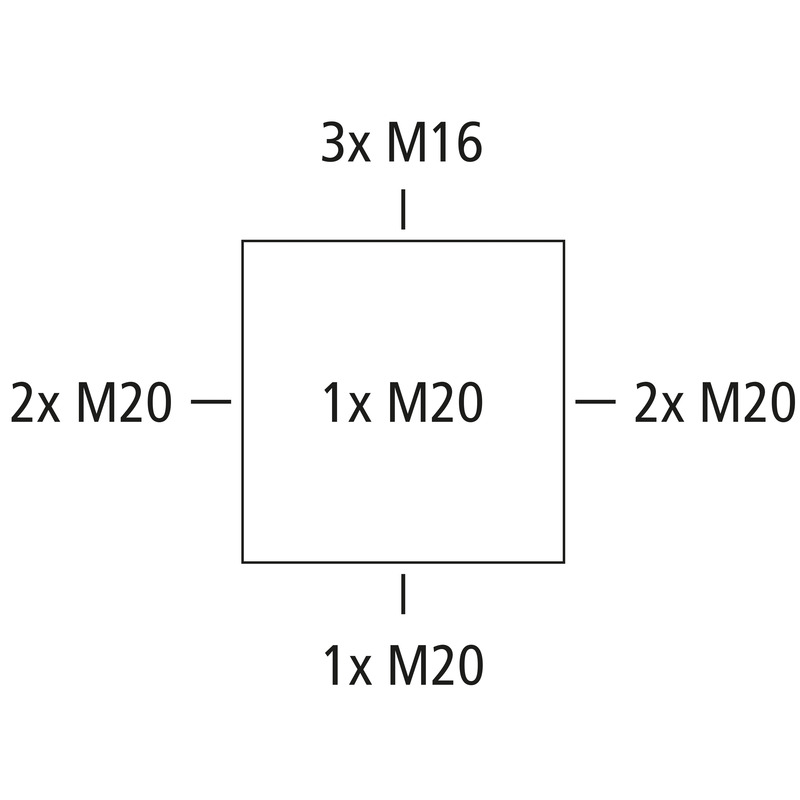

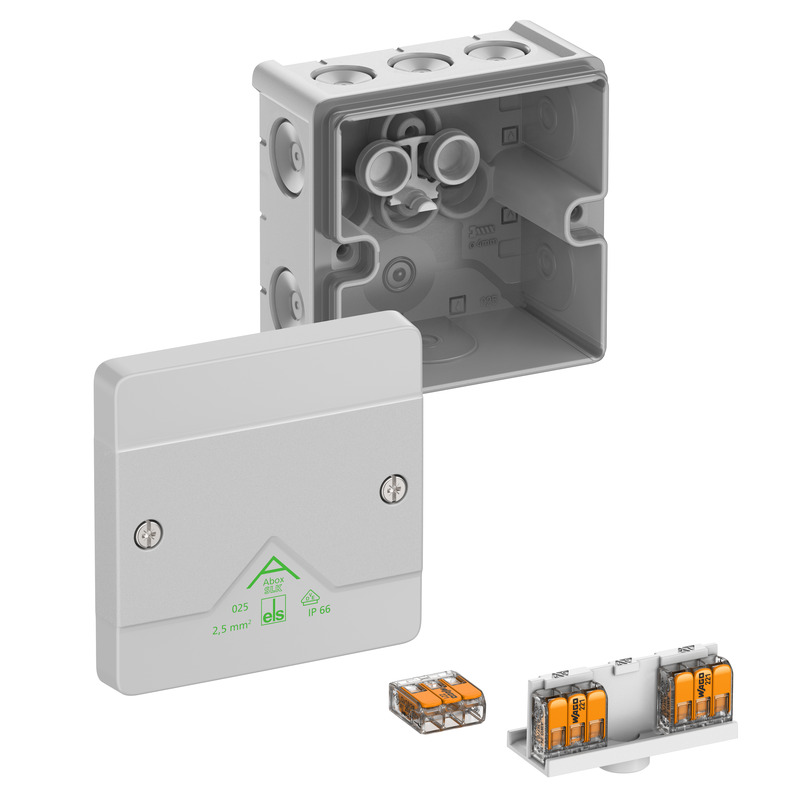

Junction box, protection class IP66, nominal cross-section 2.5 mm², U_i=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M16/M20, sealing range 4 - 16 mm, (1 rear, 8 side), internal fixing points, with screwless terminals and clamp holders, for standard indoor and protected outdoor installations

grey, I_n=24 A, with 3 floor-fixed, screwless 3-wire terminals, Wago 221-413 - 2.5 mm², clampable cross-sections per pole: 3 x 0.2 to 2.5 mm² rigid Cu and 3 x 0.14 to 2.5 mm² flexible Cu

Technical Data

electrical characteristics

Rated insulation voltage AC	450 V
Rated insulation voltage DC	450 V
Min. conductor cross section	0,2 mm²
Max. conductor cross section	2,5 mm²
Protection class	II
Type of protection	IP66
Rated current	24 A
Terminal type	screwless
Number of poles	3

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	87 mm
Length	87 mm
Height	52 mm
Inner length	75 mm
Inner width	75 mm
Inner height	37 mm
Weight	0.115 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	750 °C (EN 60695-2-11)

mechanical properties

for sealing range min	4 mm
for sealing range max	16 mm
Impact strength	IK07
Sealable	yes
Cover screw torque	1.2 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	55 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902661893
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polypropylene
Cover material	Polypropylene
Entry material	Thermoplastic elastomer
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel 1.4567 (V2A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)

Logistic data

Piece

EAN / GTIN	4013902661893
Width	0.087 m
Weight	0.115 kg
Height	0.052 m
Quantity	1 pieces
Depth	0.087 m

Outer packaging

EAN / GTIN	4013902661909
Width	0.35 m
Weight	19.4718 kg
Height	0.265 m
Quantity	60 pieces
Depth	0.26 m

Pallet

EAN / GTIN	4013902661916
Width	0.8 m
Weight	489.3232 kg
Height	0.978 m
Quantity	1440 pieces
Depth	1.2 m

Downloads

Download Data Sheet

Download Data Sheet (80247001.pdf)

Installation instructions

Assembly instruction FR/ES pdf (3 MB)

Assembly instruction DE/EN pdf (3 MB)

Dimensioned drawing

Dimensional drawing pdf (4 MB)

Dimensional drawing dwg (5 MB)

Dimensional drawing dxf (23 MB)

Certificate

CE Declaration DE/EN/PL pdf (94 KB)

UKCA Declaration EN pdf (167 KB)

DLG Approval DE pdf (752 KB)

VDE Certificate DE/EN pdf (207 KB)

CE Declaration DE/EN/FR pdf (34 KB)

DLG Approval EN pdf (727 KB)

Planningdata

Tender text

CAD-Data

Product videos

Accessories

Cable glandKVR M16-MGM

Cable gland - KVR M16-MGM

Cable gland

KVR M16-MGM

Productnumber 22741601

Sealing range 4 - 10 mm, Thread length 8 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...

Cable glandKVR M20-GDB/MGM

Cable gland - KVR M20-GDB/MGM

Cable gland

KVR M20-GDB/MGM

Productnumber 22742101

Sealing range 7 - 14 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...

Cable glandKVR M20-MGM

Cable gland - KVR M20-MGM

Cable gland

KVR M20-MGM

Productnumber 22742001

Sealing range 6 - 12 mm, Thread length 9 mm

Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...

Double-membrane sealsDMS M16

Double-membrane seals - DMS M16

Double-membrane seals

DMS M16

Productnumber 26041601

Sealing range 5 - 9 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

Double-membrane sealsDMS M20

Double-membrane seals - DMS M20

Double-membrane seals

DMS M20

Productnumber 26042001

Sealing range 7 - 13 mm

Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

Sealing kitAbox PST 025-100

Sealing kit - Abox PST 025-100

Sealing kit

Abox PST 025-100

Productnumber 89500101

Set with two sealing caps and screws

Set for subsequent sealing of junction boxes, for Abox 025/040/060/100 from 2024

Mast/pipe fixing setMABF 65-1

Mast/pipe fixing set - MABF 65-1

Mast/pipe fixing set

MABF 65-1

Productnumber 89601001

for junction boxes Abox / Abox Pro from 2024 onwards of the types Abox...

Mast/pipe fixing set in stainless steel V2A with fastening screws and quick release clamp for...

Cable tray fasteningKTB 1-100 new

Cable tray fastening - KTB 1-100

Cable tray fastening

KTB 1-100

Productnumber 89602901

Fixing element for mounting of enclosures on cable tray systems with elongated hole width of 7 mm...
