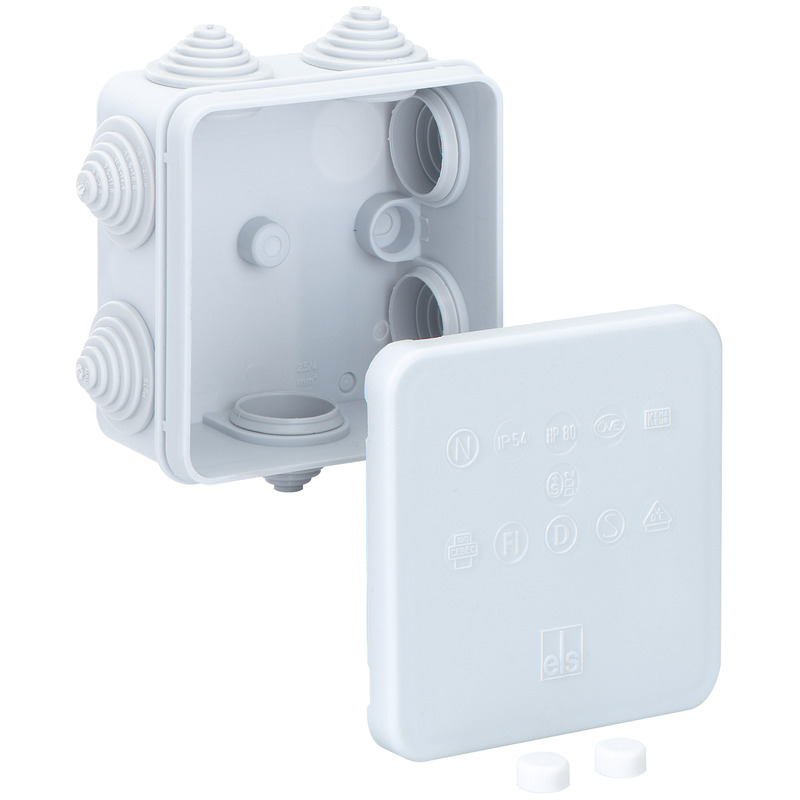

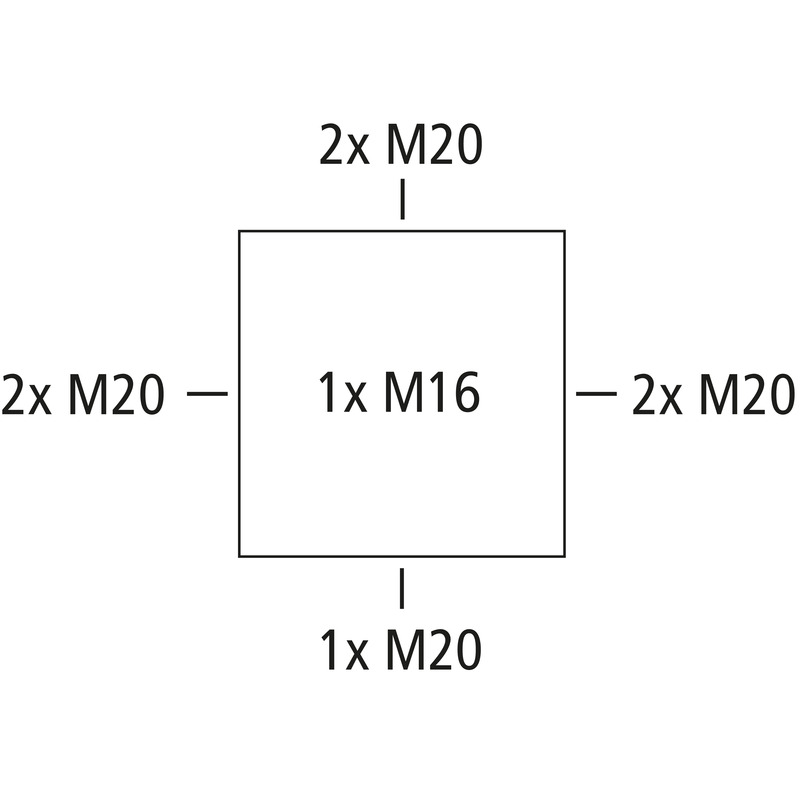

Junction box, protection class IP55, nominal cross-section 2.5 mm², Ui=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), stepped nipple, M20, sealing range 5 - 16 mm, (1 rear, 7 side), internal fixing points, for standard indoor installations
grey, without terminals
| Rated insulation voltage AC | 400 V |
|---|---|
| Max. conductor cross section | 2,5 mm² |
| Protection class | II |
| Type of protection | IP55 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 85 mm |
|---|---|
| Length | 85 mm |
| Height | 42 mm |
| Inner length | 78 mm |
| Inner width | 78 mm |
| Inner height | 38 mm |
| Weight | 0.06 kg |
| UV-resistant | no |
|---|---|
| Halogen free | no |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| for sealing range min | 5 mm |
|---|---|
| for sealing range max | 16 mm |
| Type of fastening | Wall/ceiling mounting |
| Impact strength | IK07 |
| Sealable | no |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902020133 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 50 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902339488 |
|---|---|
| Width | 0.437 m |
| Weight | 3.385 kg |
| Height | 0.212 m |
| Quantity | 50 pieces |
| Depth | 0.317 m |
| EAN / GTIN | 4013902339495 |
|---|---|
| Width | 0.8 m |
| Weight | 180.48 kg |
| Height | 1.85 m |
| Quantity | 2400 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902020133 |
|---|---|
| Width | 0.085 m |
| Weight | 0.06 kg |
| Height | 0.042 m |
| Quantity | 1 pieces |
| Depth | 0.085 m |
