#34560801 | Dimensions: 89 x 43 x 38 mm

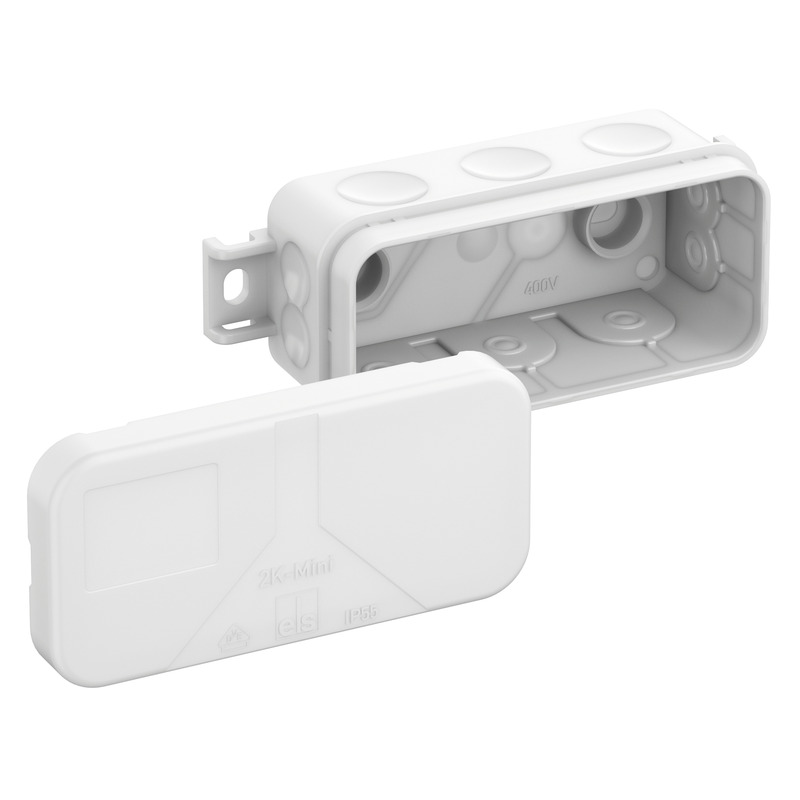

Junction box

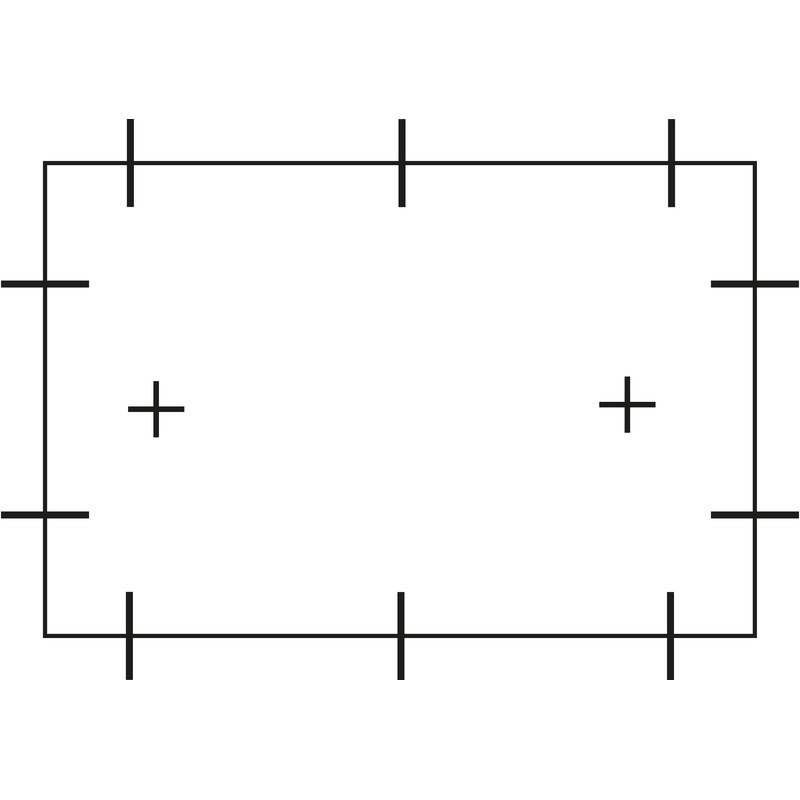

Junction box, protection class IP55, nominal cross-section 2.5 mm², Ui=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing, soft insertion membranes, sealing range 2 - 14 mm, (1 rear, 10 side), external fixing lugs, for standard indoor installations
white, without terminals
| Rated insulation voltage AC | 400 V |
|---|---|
| Max. conductor cross section | 2,5 mm² |
| Protection class | II |
| Type of protection | IP55 |
| Terminal type | none |
| UL Type Rating | not specified |
| Base unit colour | white |
|---|---|
| Cover colour | white |
| Width | 89 mm |
|---|---|
| Length | 43 mm |
| Height | 38 mm |
| Inner length | 33 mm |
| Inner width | 79 mm |
| Inner height | 33 mm |
| Weight | 0.0317 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| max. amount of terminals at 1,5² | 5 |
|---|---|
| max. amount of terminals at 2,5² | 3 |
| max. amount of wires at 1,5² | 15 |
|---|---|
| max. amount of wires at 2,5² | 9 |
| for sealing range min | 2 mm |
|---|---|
| for sealing range max | 14 mm |
| Impact strength | IK07 |
| Sealable | no |
| Type of fastening | Wall/ceiling mounting |
| Fastening | external fixing lugs |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902642519 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 10 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| Entry material | Thermoplastic elastomer |
| Sealing material | Thermoplastic elastomer |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902642526 |
|---|---|
| Width | 0.435 m |
| Weight | 0.317 kg |
| Height | 0.113 m |
| Quantity | 10 pieces |
| Depth | 0.037 m |
| EAN / GTIN | 4013902642540 |
|---|---|
| Width | 0.444 m |
| Weight | 2.1124 kg |
| Height | 0.165 m |
| Quantity | 60 pieces |
| Depth | 0.23 m |
| EAN / GTIN | 4013902642533 |
|---|---|
| Width | 0.8 m |
| Weight | 169.868 kg |
| Height | 1.917 m |
| Quantity | 4200 pieces |
| Depth | 1.306 m |
| EAN / GTIN | 4013902642519 |
|---|---|
| Width | 0.089 m |
| Weight | 0.0317 kg |
| Height | 0.038 m |
| Quantity | 1 pieces |
| Depth | 0.043 m |
Tender text
(34560801.TXT 788 B)
Log in to download tender texts.
CAD-Data
(Download 3D-CAD-Data)
Log in to download tender texts.
Cable tray fastening
KTB 2
Productnumber 89601901
Fastening element for tool-free mounting by snapping enclosures of the Red Range with external...
Cable tray fastening
KTB 1-100
Productnumber 89602901
Fixing element for mounting of enclosures on cable tray systems with elongated hole width of 7 mm...

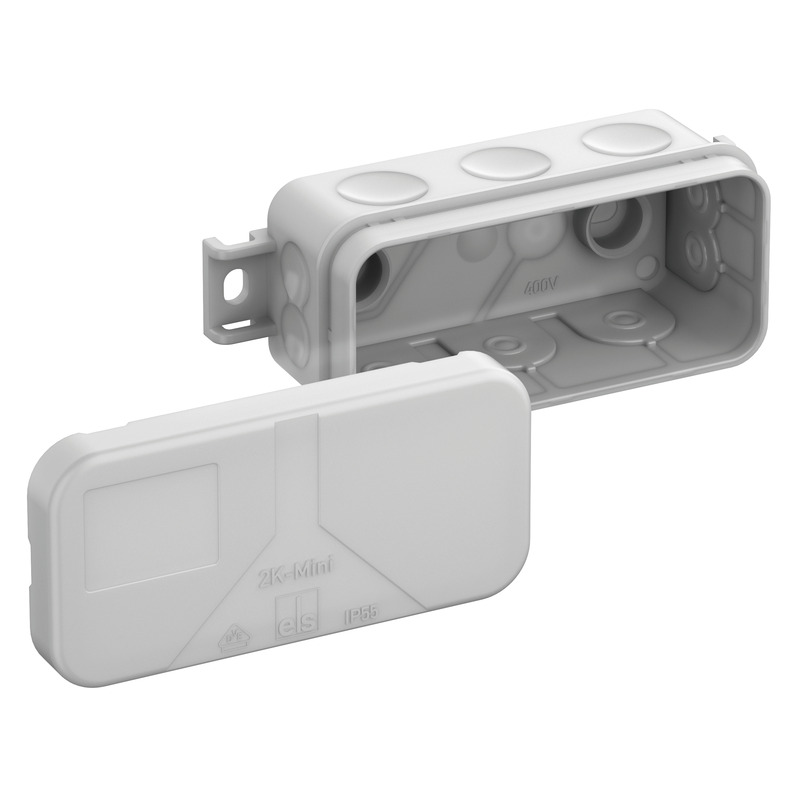

Junction box
2K-Mini AB-L
Productnumber 34590801
grey, without terminals
Junction box, protection class IP55, nominal cross-section 2.5 mm², Ui=400 V AC, certified by VDE...

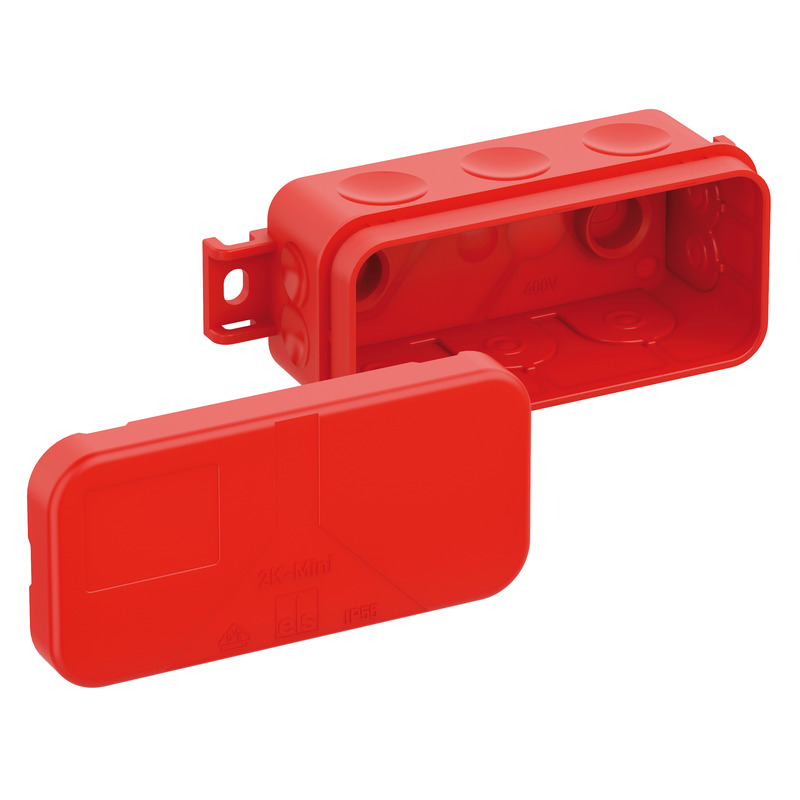

Junction box
