Description

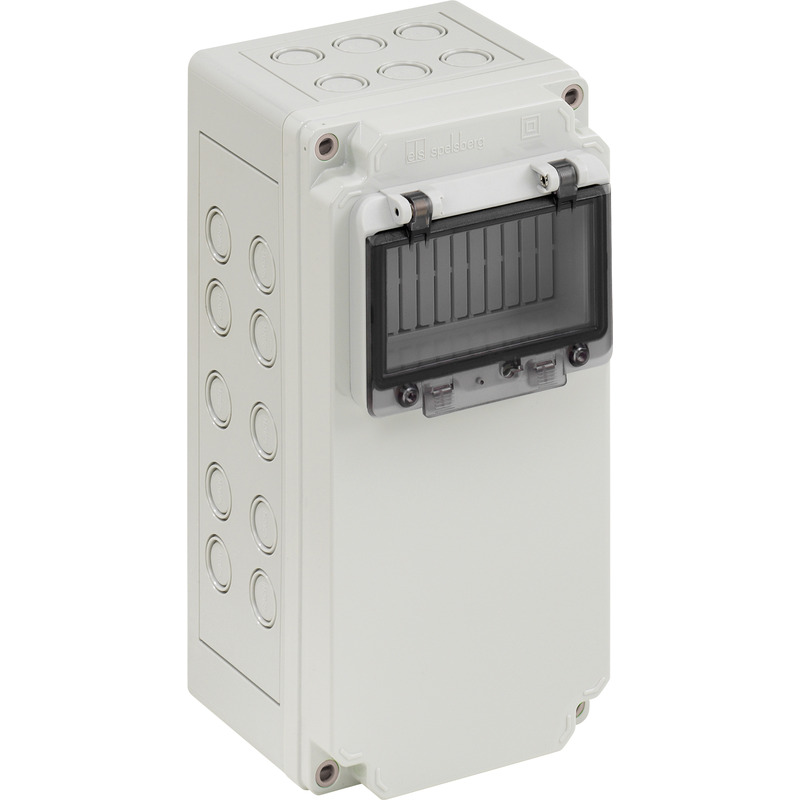

Module enclosure 1-row
6 distribution units, arranged at the top, with hinged window,
1x PE/N terminal (2x (1 x 25 mm² + 7 x 4(6) mm²))
#59106101 | Dimensions: 150 x 300 x 156 mm
Distribution board
Technical Data
electrical characteristics
| Rated operating voltage AC | 400 V |
|---|---|
| Protection class | II |
| Type of protection | IP65 |
| Number of modules | 6 |
| UL Type Rating | not specified |
Dimensions
| Width | 150 mm |
|---|---|
| Length | 300 mm |
| Height | 156 mm |
| Weight | 1.2732 kg |
Material characteristics
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
mechanical properties
| Type of fastening | Surface mounting |
|---|---|
| Impact strength | IK07 |
Ambient conditions
| Max. ambient temperature | 80 °C |
|---|---|
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
Sales Information
| EAN | 4013902826179 |
|---|---|
| ETIM Class | EC000248 |
| Custom tariff number | 85369095 |
| Minimum order quantity | 1 |
Material
| Base unit material | Plastic |
|---|
Logistic data
Outer packaging
| EAN / GTIN | 4013902826179 |
|---|---|
| Width | 0.32 m |
| Weight | 1.2739 kg |
| Height | 0.192 m |
| Quantity | 1 pieces |
| Depth | 0.2 m |
Pallet
| EAN / GTIN | 4013902412891 |
|---|---|
| Width | 0.8 m |
| Weight | 172.6144 kg |
| Height | 1.489 m |
| Quantity | 96 pieces |
| Depth | 1.2 m |
