Description
Empty enclosure, with sliding seal and cable clamp
#59111301 | Dimensions: 150 x 300 x 137 mm
Enclosure with sliding seal
Technical Data
electrical characteristics
| Rated operating voltage AC | 400 V |
|---|---|
| Protection class | II |
| Type of protection | IP54 |
| UL Type Rating | not specified |
Dimensions
| Width | 150 mm |
|---|---|
| Length | 300 mm |
| Height | 137 mm |
| Inner height | 119 mm |
| Weight | 1.2 kg |
Material characteristics
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
mechanical properties
| Type of fastening | Surface mounted |
|---|---|
| Impact strength | IK07 |
Ambient conditions
| Max. ambient temperature | 80 °C |
|---|---|
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
Sales Information
| EAN | 4013902568352 |
|---|---|
| ETIM Class | EC000058 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
Material
| Base unit material | Plastic |
|---|
Logistic data
Outer packaging
| EAN / GTIN | 4013902568352 |
|---|---|
| Width | 0.318 m |
| Weight | 1.425 kg |
| Height | 0.18 m |
| Quantity | 1 pieces |
| Depth | 0.158 m |
Pallet
| EAN / GTIN | 4013902413003 |
|---|---|
| Width | 0.8 m |
| Weight | 207.25 kg |
| Height | 1.57 m |
| Quantity | 130 pieces |
| Depth | 1.2 m |
Downloads
Download Data Sheet

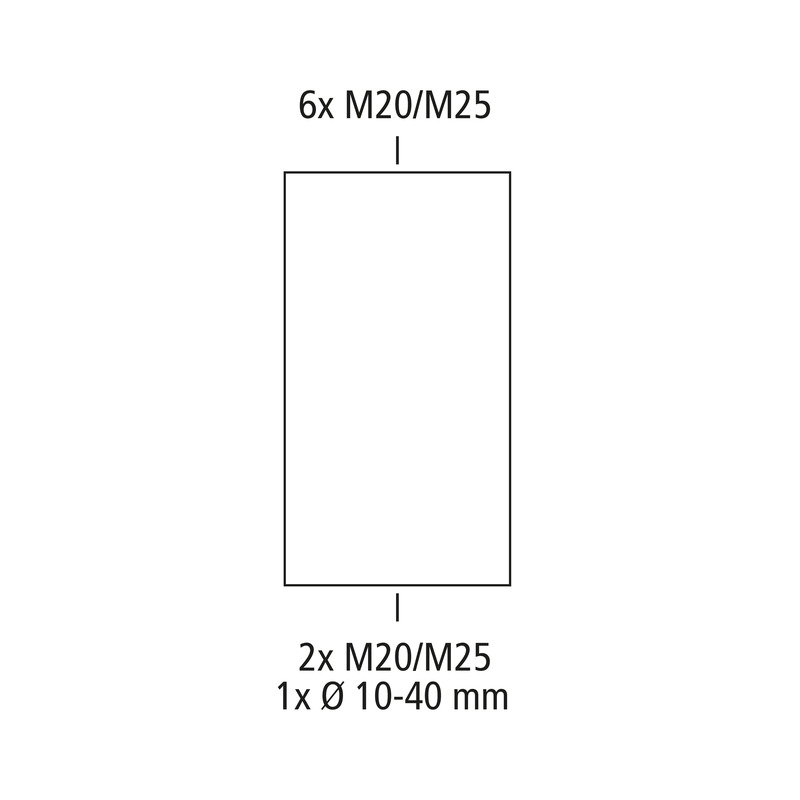

Dimensioned drawing
