Description

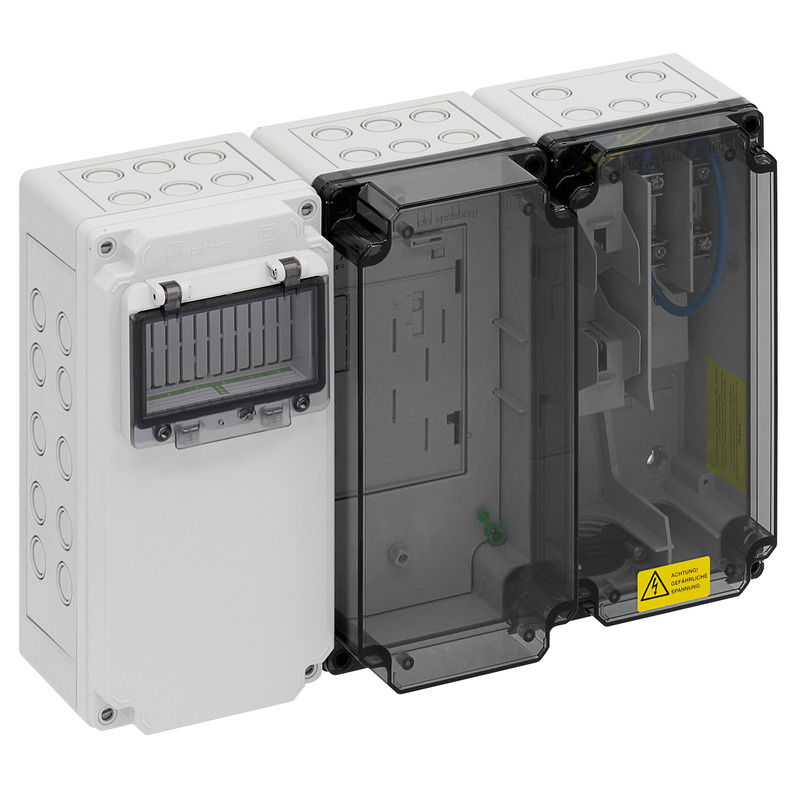

Meter distribution - compact - in multiple box-type design according to DIN EN 61439-2/-3, standard version sealable, for the surface mounting, for direct main connection and alternating current measurement in the non-measured area, use according to the individual release by the responsible operator, with closing and insulating seals, with included ventilation seal (IPx4) for the reduction of condensate water
Meter distribution - compact -, consisting of:, Main connection enclosure, for 230 V AC grids (L-N-PE / L-PEN) according to VDE-AR-N 4100 (building connection box for single-phase connection), In=25 A, Imax=63 A, equipped with 1x NH00 safety element and PE/N terminal with prism terminal, as well as park bay for unused wires, meter field, with transparent cover, with 1 BKE-I for alternating current eHZ, incl. meter wiring, Automate box equipped with 35 mm standard rails for the support of terminals, as well as consumer space with hinged window for rail-mounted devices (6TE), incl. PE/N terminal rail
