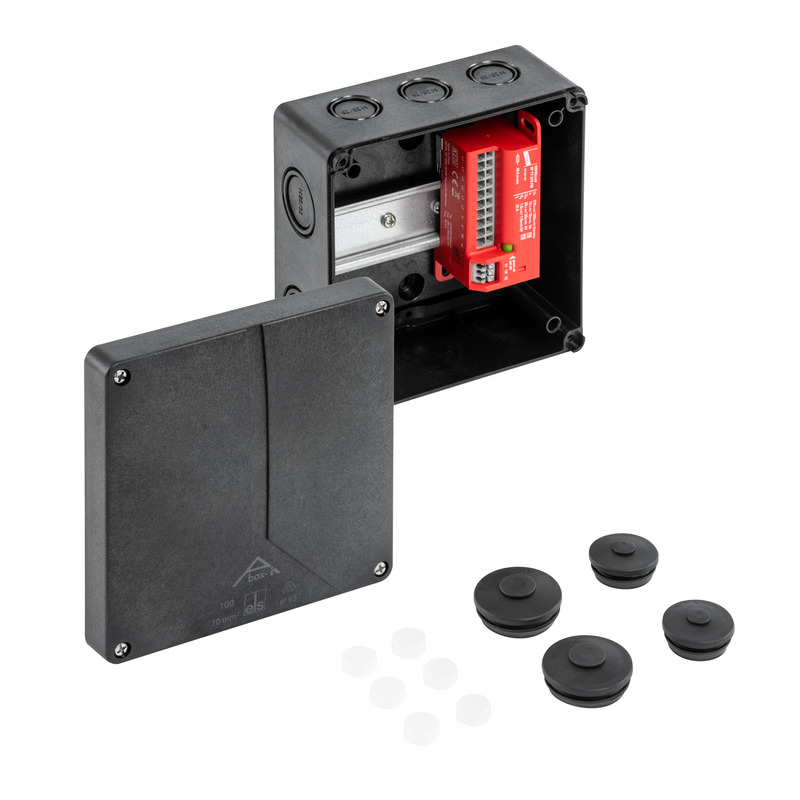

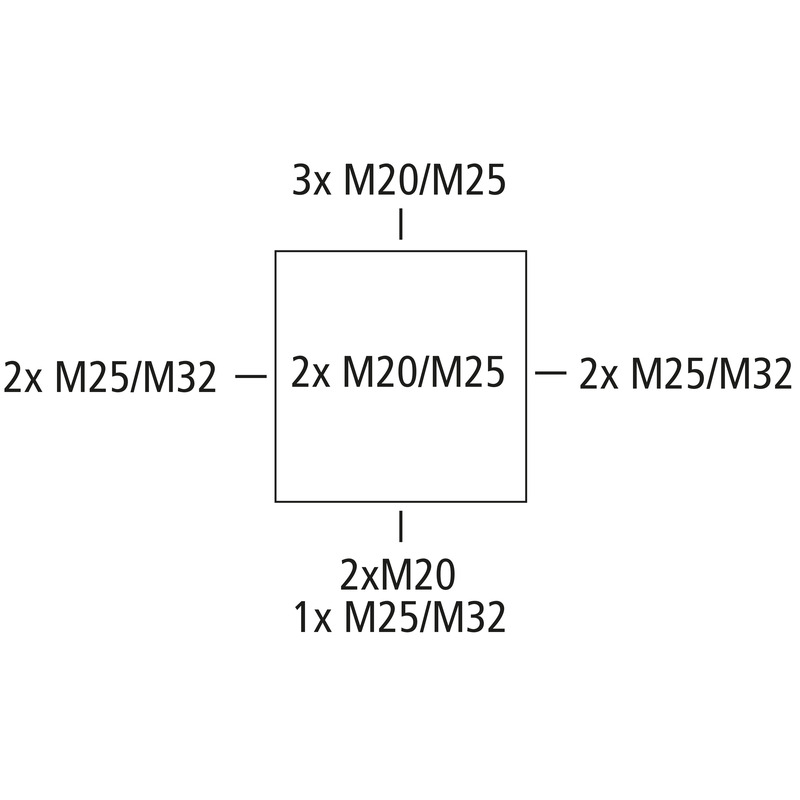

Junction box, protection class IP65, nominal cross-section 6 mm², Ui=450 V AC, knockouts, M20/M25/M32, (2 rear, 10 side), internal fixing points, for installations in industrial environments and protected outdoor areas
black, equipped with surge protector Type 2 + 3 for TT and TN-S systems to complement an existing lightning protection concept
Accessories supplied:
2 Double membrane seals IP66 M25 sealing range 9 - 16 mm
4 Double membrane seals IP66 M32 sealing range 14 - 21 mm
| Surge protection device (SPD) Type 2 for TT and TN-S systems | 1 |
|---|
| Rated operating voltage AC | 400 V |
|---|---|
| Rated insulation voltage AC | 450 V |
| Min. conductor cross section | 1,5 mm² |
| Max. conductor cross section | 6 mm² |
| Protection class | II |
| Type of protection | IP65 |
| Terminal type | screwless |
| Number of poles | 5 |
| UL Type Rating | not specified |
| Base unit colour | black |
|---|---|
| Cover colour | black |
| Width | 140 mm |
|---|---|
| Length | 140 mm |
| Height | 79 mm |
| Weight | 0.474 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Impact strength | IK08 |
|---|---|
| Sealable | yes |
| Cover screw torque | 1.7 Nm |
| Type of fastening | Wall/ceiling mounting |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902680627 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85369095 |
| Minimum order quantity | 1 |
| Base unit material | Polycarbonate, glass-fibre reinforced |
|---|---|
| Cover material | Polycarbonate, glass-fibre reinforced |
| Sealing material | Polyurethane |
| Cover screw material | Stainless steel 1.1147 |
| EAN / GTIN | 4013902680627 |
|---|---|
| Width | 0.17 m |
| Weight | 0.534 kg |
| Height | 0.125 m |
| Quantity | 1 pieces |
| Depth | 0.169 m |
| EAN / GTIN | 4013902680634 |
|---|---|
| Width | 0.8 m |
| Weight | 81.808 kg |
| Height | 0.607 m |
| Quantity | 112 pieces |
| Depth | 1.2 m |
