Description
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for wall thicknesses 1.5 - 4.5 mm, white
Sealing range 9 - 17 mm
#26012501 | Dimensions: 29,7 x 29,7 x 13,6 mm
Double-membrane seals
Technical Data
electrical characteristics
| Type of protection | IP66 |
|---|
Colours
| Accessory colour | clear white |
|---|
Dimensions
| Width | 29.7 mm |
|---|---|
| Length | 29.7 mm |
| Height | 13.6 mm |
| Nominal size | M25 |
| Weight | 0.005 kg |
Material characteristics
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Glow-wire flammability | 750 °C (EN 60695-2-11) |
mechanical properties
| for wall thickness max | 4.5 mm |
|---|---|
| for wall thickness min | 1.5 mm |
| for sealing range min | 9 mm |
| for sealing range max | 17 mm |
Ambient conditions
| Installation location | protected outdoor areas |
|---|
Sales Information
| EAN | 4013902616695 |
|---|---|
| ETIM Class | EC000451 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 50 |
Material
| Accessory material | TPE |
|---|
Logistic data
Inner packaging
| EAN / GTIN | 4013902616701 |
|---|---|
| Width | 0.115 m |
| Weight | 0.2701 kg |
| Height | 0.083 m |
| Quantity | 50 pieces |
| Depth | 0.083 m |
Outer packaging
| EAN / GTIN | 4013902616718 |
|---|---|
| Width | 0.357 m |
| Weight | 3.4562 kg |
| Height | 0.127 m |
| Quantity | 600 pieces |
| Depth | 0.257 m |
Pallet
| EAN / GTIN | 4013902616725 |
|---|---|
| Width | 0.8 m |
| Weight | 395.2696 kg |
| Height | 1.67 m |
| Quantity | 64800 pieces |
| Depth | 1.2 m |
Piece
| EAN / GTIN | 4013902616695 |
|---|---|
| Width | 0.03 m |
| Weight | 0.005 kg |
| Height | 0.014 m |
| Quantity | 1 pieces |
| Depth | 0.03 m |
Downloads
Download Data Sheet
Dimensioned drawing
Planningdata
Tender text
Tender text
(26012501.TXT 502 B)
Log in to download tender texts.
Similar products
Double-membrane sealsDMS M20/w
Double-membrane seals
DMS M20/w
Productnumber 26012001
Sealing range 7 - 13 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane sealsDMS M32/w
Double-membrane seals
DMS M32/w
Productnumber 26013201
Sealing range 13 - 21 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...

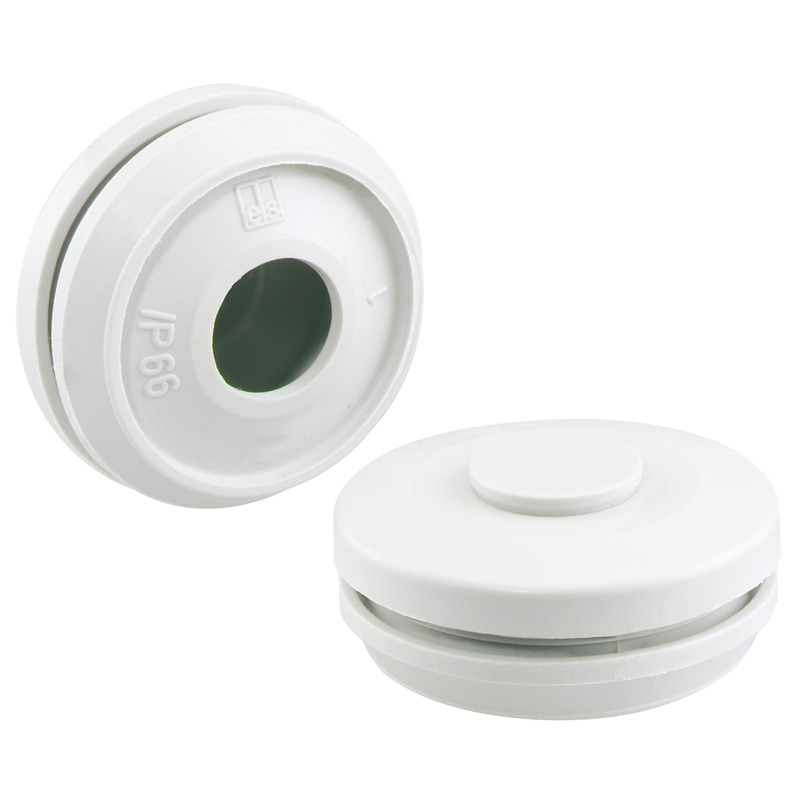

Double-membrane sealsDMS M16/w
