P 71 GRO-O

P 71 GRO-O

P 71 GRO-O

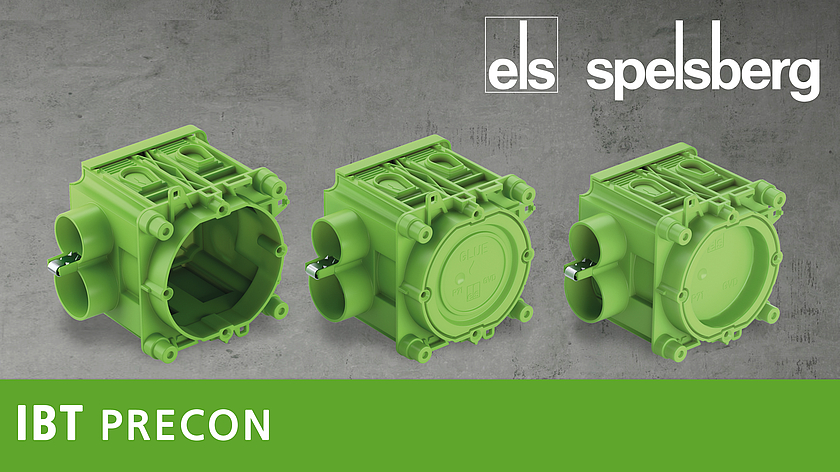

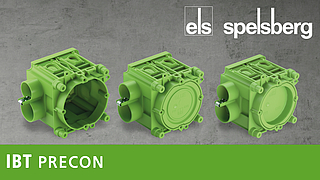

Large conduit box

P 71 GRO-O

Productnumber: 98497501 | Dimensions: 71 x 71 x 76,5 mm

Large conduit box , especially for horizontal factory finishing, 1-part, diameter 60 mm Ø, 4 screw bosses with a 60 mm screw spacing, combinable, suitable for opposing formwork, combinable with a standard spacing of 71 mm, protection class IP30, rated insulation voltage: 400V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), Halogen free

with enlarged terminal compartment, open front section for special magnetic clamp HM P 71 (98498001), magnet installation, conduit adapter and additional conduit adapter with Easy-Cut-Membran, sealing range M32 - M40, support spar compatible

Find wholesaler

electrical characteristics

Rated insulation voltage AC	400 V
Type of protection	IP30
Suitable for	Concrete construction
UL Type Rating	not specified

Dimensions

Width	71 mm
Length	71 mm
Height	76.5 mm
Inner height	72.9 mm

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	650 °C
Industry quality	no

mechanical properties

Type of fastening	magnet installation

Ambient conditions

max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C

Material

Base unit material	Plastic
Cover material	Polypropylene

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction ES	pdf (914 KB)
Assembly instruction FR	pdf (914 KB)
Assembly instruction EN	pdf (914 KB)
Assembly instruction NL	pdf (913 KB)
Assembly instruction DE	pdf (913 KB)

Dimensioned drawing

Dimensional drawing	jpg (1 MB)
Dimensional drawing	pdf (386 KB)
Dimensional drawing	dxf (4 MB)
Dimensional drawing	dwg (759 KB)

Certificate

VDE Certificate (DIN EN 60670) DE/EN	pdf (627 KB)
UKCA Declaration EN	pdf (49 KB)
CE Declaration DE/EN/PL	pdf (74 KB)
CE Declaration DE/EN/FR	pdf (62 KB)

Accessories

new

IBT Accessories - HM P 71

IBT Accessories HM P 71

Dimensions : 68,5 x 68,5 x 24 mm
Productnumber: 98498001

Special magnet for securing the P 71-O box type from the Precon series...

Fixings for steel formwork
