#98210101 | Dimensions: 177 x 200 x 125 mm

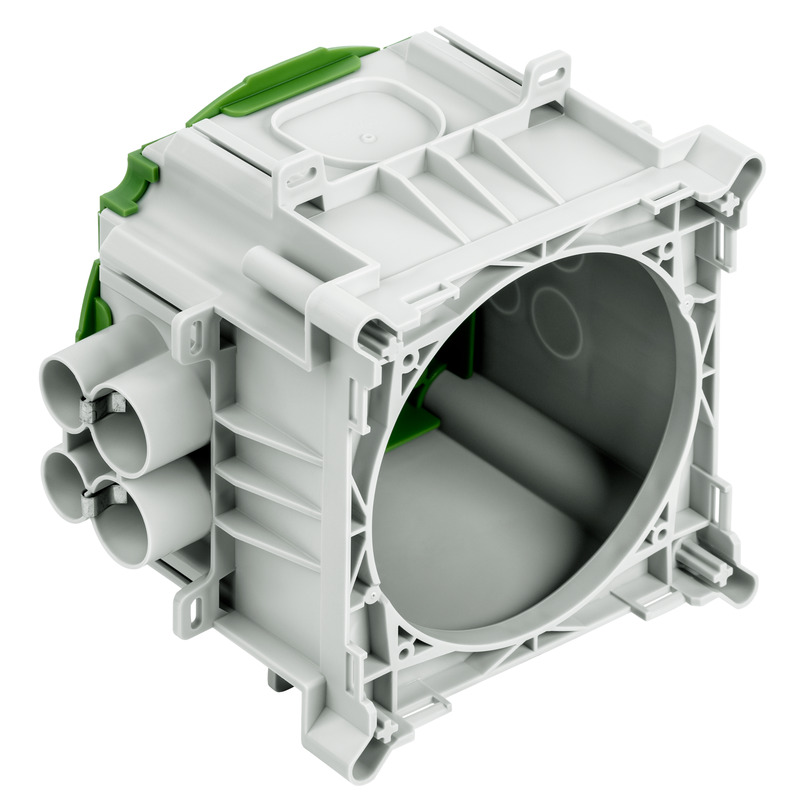

Installation housing

IBTLED 1-O

Installation housing, for prefabricated construction, halogen-free, for the installation of LV/HV/LED lights and speakers, announcement and call systems, for the installation of VDE-tested...

Login to see price

Remember product

Description

Installation housing, for prefabricated construction, halogen-free, for the installation of LV/HV/LED lights and speakers, announcement and call systems, for the installation of VDE-tested lights to DIN EN 60598 (VDE 0711), and with F or MM marking, protection class IP30, rated insulation voltage: 400V AC, Halogen free

maximum installation depth 100 mm, additional insertions 2 x to M40, adhesive fixing or nail installation, combination conduit insertion and membrane for perforation, sealing range M16 - M40

Technical Data

electrical characteristics

Rated insulation voltage AC	400 V
Type of protection	IP30
Suitable for	Concrete construction

Colours

Base unit colour	grey
Cover colour	green

Dimensions

Width	177 mm
Length	200 mm
Height	125 mm
Inner length	100 mm
Inner width	100 mm
Inner height	115 mm
Weight	0.318 kg

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	650 °C (EN 60695-2-11)

mechanical properties

Type of fastening	adhesive fixing or nail installation

Ambient conditions

max. relative humidity 25°C	- %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	60 °C
24h ambient temperature	35 °C

Sales Information

EAN	4013902607891
ETIM Class	EC000414
Custom tariff number	39269097
Minimum order quantity	8

Material

Base unit material	Polypropylene
Cover material	Polypropylene

Logistic data

Outer packaging

EAN / GTIN	4013902607907
Width	0.493 m
Weight	6.628 kg
Height	0.356 m
Quantity	8 pieces
Depth	0.293 m

Pallet

EAN / GTIN	4013902607914
Width	0.8 m
Weight	221.584 kg
Height	1.92 m
Quantity	240 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902607891
Width	0.177 m
Weight	0.318 kg
Height	0.125 m
Quantity	1 pieces
Depth	0.2 m

Downloads

Planningdata

Tender text

CAD-Data

Accessories

Front partFT75R

Front part

FT75R

Productnumber 98207501

Internal diameter 75 mm, diameter of external aperture edge min. 81...

Front part, for use in combination with IBTLED 1-O installation box in site-cast concrete,...

Front partFT68R

Front part

FT68R

Productnumber 98206801

Internal diameter 68 mm, diameter of external aperture edge min. 74...

Front part, for use in combination with IBTLED 1-O installation box in site-cast concrete,...

Front partFTF1

Front part

FTF1

Productnumber 98211001

with Fermacell® plasterboard variable up to max. 100 x 100 mm,...

Front part, for use in combination with IBTLED 1-O installation box in site-cast concrete,...
