#86238401 | Dimensions: 160 x 160 x 110 mm

Junction box

WKE 304 SL

Junction box, protection class IP66, U_i=450 V AC, internal thread, M25/M32, (3 side), external fixing lugs, with E30 electrical functional integrity according to DIN 4102 Part 12, tested...

Login to see price

Remember product

Description

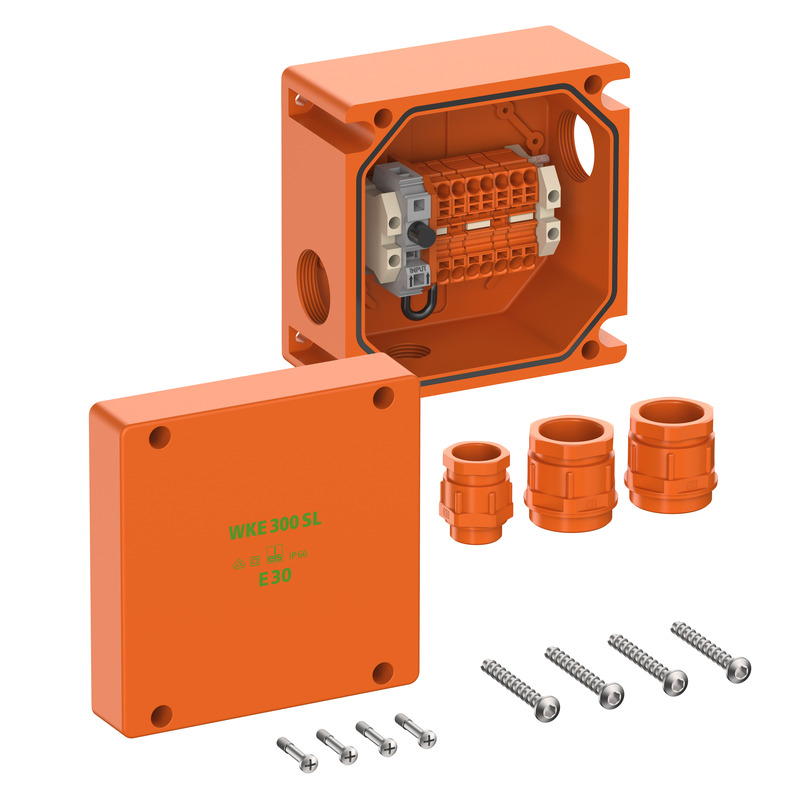

Junction box, protection class IP66, U_i=450 V AC, internal thread, M25/M32, (3 side), external fixing lugs, with E30 electrical functional integrity according to DIN 4102 Part 12, tested according to VDE (DIN EN 61439-1/-2 (VDE 0660-600-1/-2)) with screwless Wago TopJobS terminal blocks, enclosure made from halogen-free special thermosetting plastic

orange, Junction box with fused branch, connection box 5-pole, number of clampable wires per pole 4 x 0.5 - 10 mm², junction box 3-pole, clamping capacity 4 x 0.5 - 6 mm², 1 fuse holder (20 x 5mm) max. 10 A

Accessories supplied:

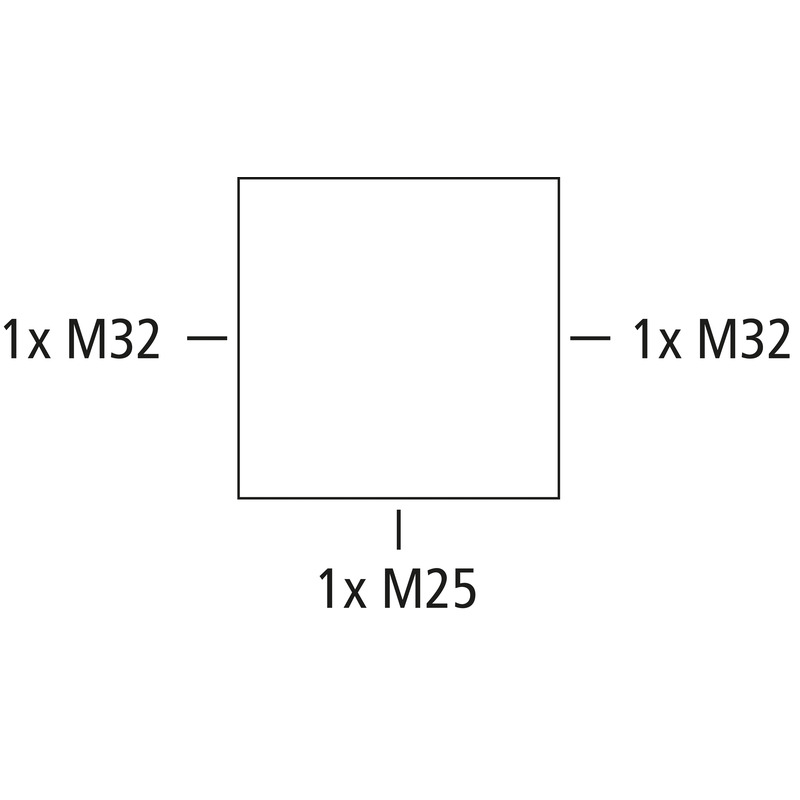

2 cable glands M32, sealing range 17 - 26 mm, 1 cable gland M25, sealing range 6 - 15 mm, dowel kit ø 6 mm

Technical Data

electrical characteristics

Rated insulation voltage AC	450 V
Rated insulation voltage DC	450 V
Min. conductor cross section	0,5 mm²
max. wire cross section (wire branching)	6 mm²
Min. conductor cross section	0,5 mm²
Max. conductor cross section	10 mm²
Protection class	II
Type of protection	IP66
Circuit integrity class	E30
Number of poles (T-piece)	3
Number of poles (feed-through)	5
UL Type Rating	not specified

Colours

Base unit colour	orange
Cover colour	orange

Additional features

Range of application	Fused T-piece

Dimensions

Width	160 mm
Length	160 mm
Height	110 mm
Weight	2.7 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability	960 °C (EN 60695-2-11)

mechanical properties

Impact strength	IK08
Sealable	no
Cover screw torque	2.5 Nm
Type of fastening	Wall/ceiling mounting
Fastening	external fixing lugs

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902668540
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Duroplast
Cover material	Duroplast
Sealing material	Polyurethane
Cover screw material	Stainless steel 1.4571 (V4A)

Logistic data

Outer packaging

EAN / GTIN	4013902668540
Width	0.17 m
Weight	2.76 kg
Height	0.125 m
Quantity	1 pieces
Depth	0.169 m

Pallet

EAN / GTIN	4013902668557
Width	0.8 m
Weight	331.12 kg
Height	0.607 m
Quantity	112 pieces
Depth	1.2 m
