Description
for mounting plate

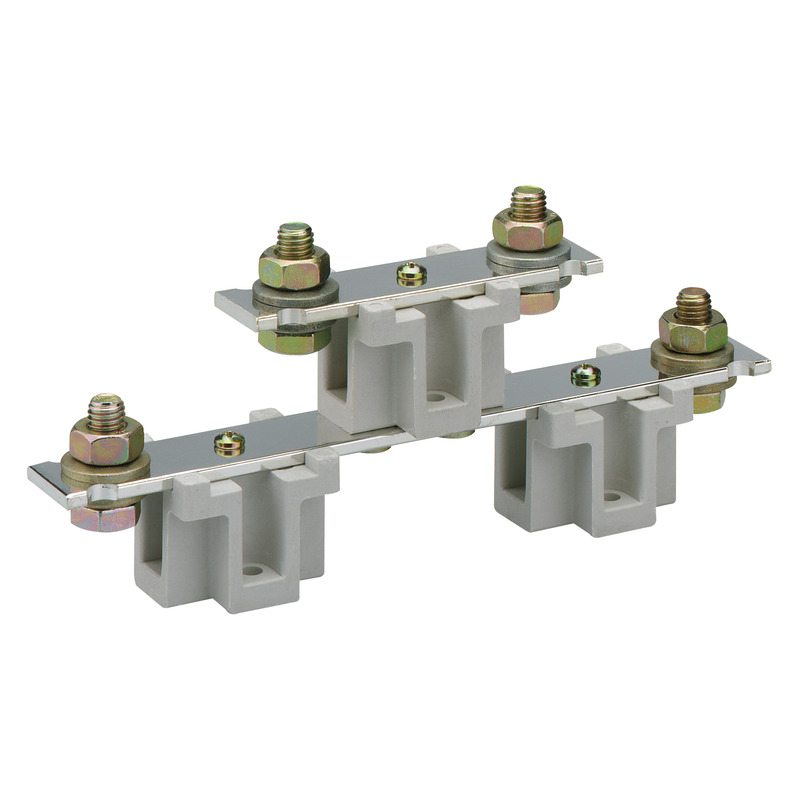

N terminal NH 2 for mounting plate, Connection screw M12
#07602201 | Dimensions: 37 x 198 x 46 mm
PEN terminal
Technical Data
electrical characteristics
| Rated operating voltage AC | 690 V |
|---|---|
| Rated operating voltage DC | 440 V |
| Rated current | 630 A |
| Number of poles | 1 |
| shockproof | No |
| Connection 1: Connection type | Screws |
| Connection 1: Clamping points per pole | 2 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Suitable for Al conductors | 0 |
Dimensions
| Width | 37 mm |
|---|---|
| Length | 198 mm |
| Height | 46 mm |
| Weight | 0.409 kg |
Material characteristics
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
|---|
Sales Information
| EAN | 4013902052677 |
|---|---|
| ETIM Class | EC002498 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 1 |
Material
| Insulating body material | Thermoplastic |
|---|
Logistic data
Outer packaging
| EAN / GTIN | 4013902325337 |
|---|---|
| Width | 0.357 m |
| Weight | 12.485 kg |
| Height | 0.127 m |
| Quantity | 30 pieces |
| Depth | 0.257 m |
Pallet
| EAN / GTIN | 4013902325344 |
|---|---|
| Width | 0.8 m |
| Weight | 1370.38 kg |
| Height | 1.67 m |
| Quantity | 3240 pieces |
| Depth | 1.2 m |
Piece
| EAN / GTIN | 4013902052677 |
|---|---|
| Width | 0.037 m |
| Weight | 0.409 kg |
| Height | 0.046 m |
| Quantity | 1 pieces |
| Depth | 0.198 m |
Downloads
Download Data Sheet
Planningdata
Tender text
Tender text
(07602201.TXT 337 B)
Log in to download tender texts.
Accessories
Prism terminalKP NH 2
Prism terminal
KP NH 2
Productnumber 07670201
for AL/CU conductors 1x (50-240)rm/rf/sm, aluminium conductor see...
Prism terminal for connecting aluminium and copper conductors to PE and N terminals (GPE, GN) and to...
Similar products

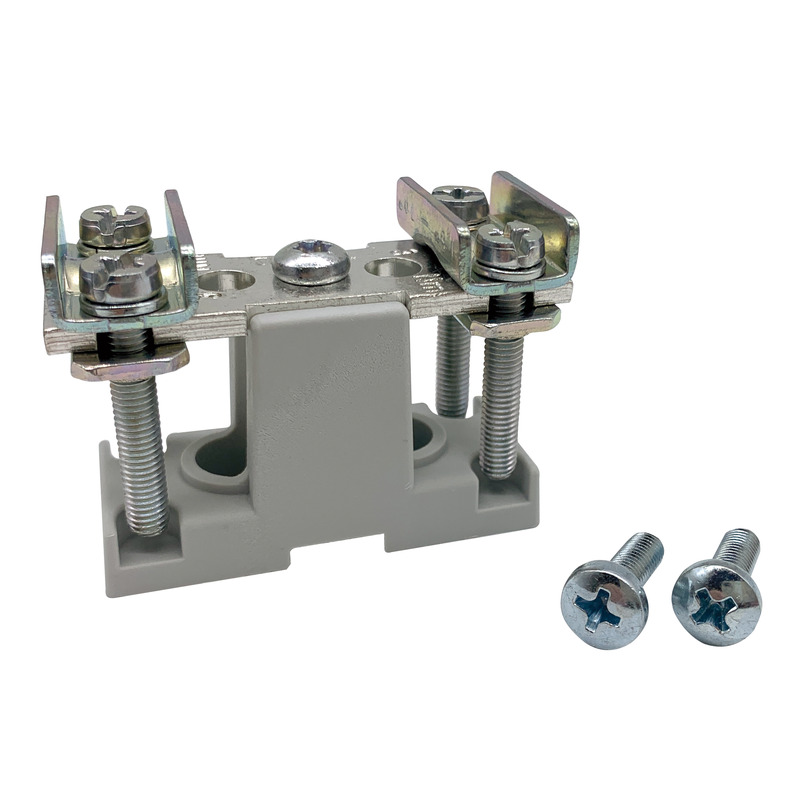

PEN terminal GPE 0
PEN terminal
GPE 0
Productnumber 07600101
PE terminal NH 00 (clamp connection) for CU conductors 1x (1.5-70)rm /...
for mounting plate
PEN terminal GPE 1
PEN terminal
GPE 1
Productnumber 07601101
PE terminal NH 1 for mounting plate or upgrade kit for GN 1,...
for mounting plate
PEN terminal GPE 2
PEN terminal
GPE 2
Productnumber 07602101
PE terminal NH 2 for mounting plate or upgrade kit for GN 2,...
for mounting plate

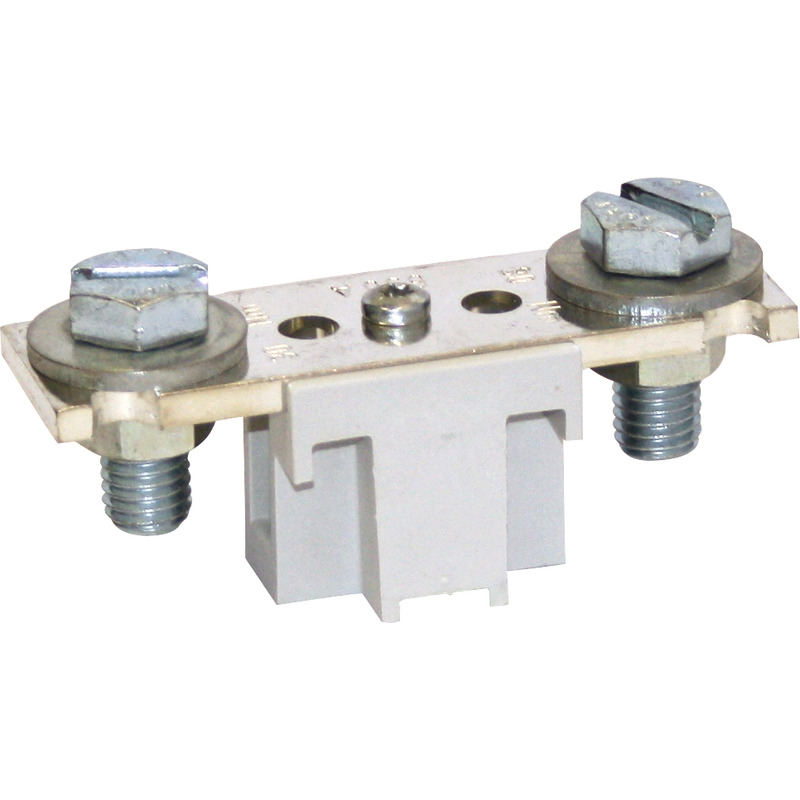

PEN terminal GPE 3
PEN terminal
GPE 3
Productnumber 07603101
PE terminal NH 3 for mounting plate or upgrade kit for GN 3,...
for mounting plate

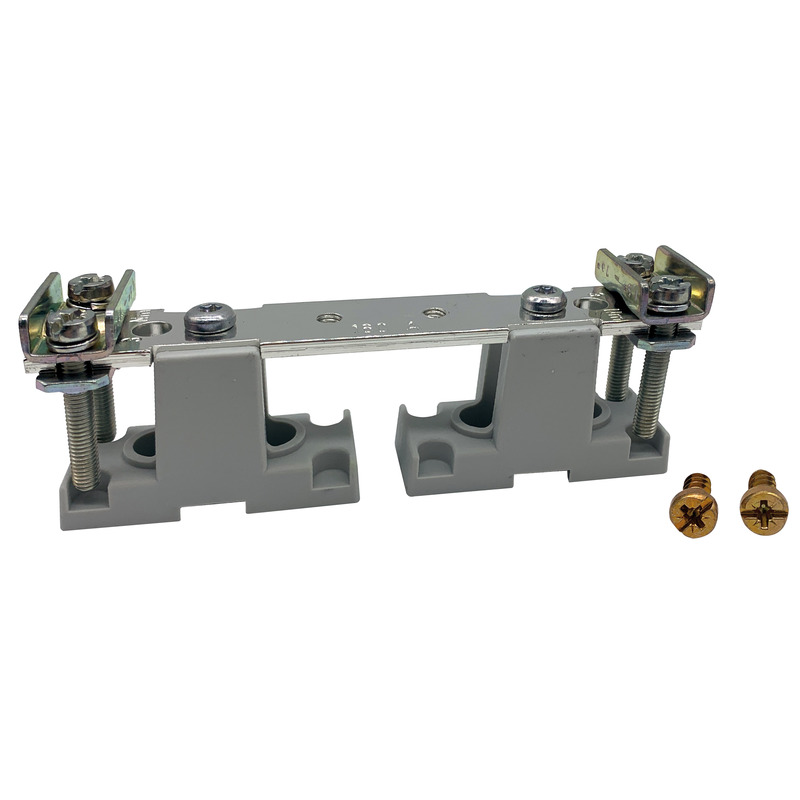

PEN terminal GN 0
PEN terminal
GN 0
Productnumber 07600201
N terminal NH 00 (clamp connection) for CU conductors 1x (1.5-70)rm /...
for mounting plate
PEN terminal GN 1
PEN terminal
GN 1
Productnumber 07601201
N terminal NH 1 for mounting plate, Connection screw M10
for mounting plate

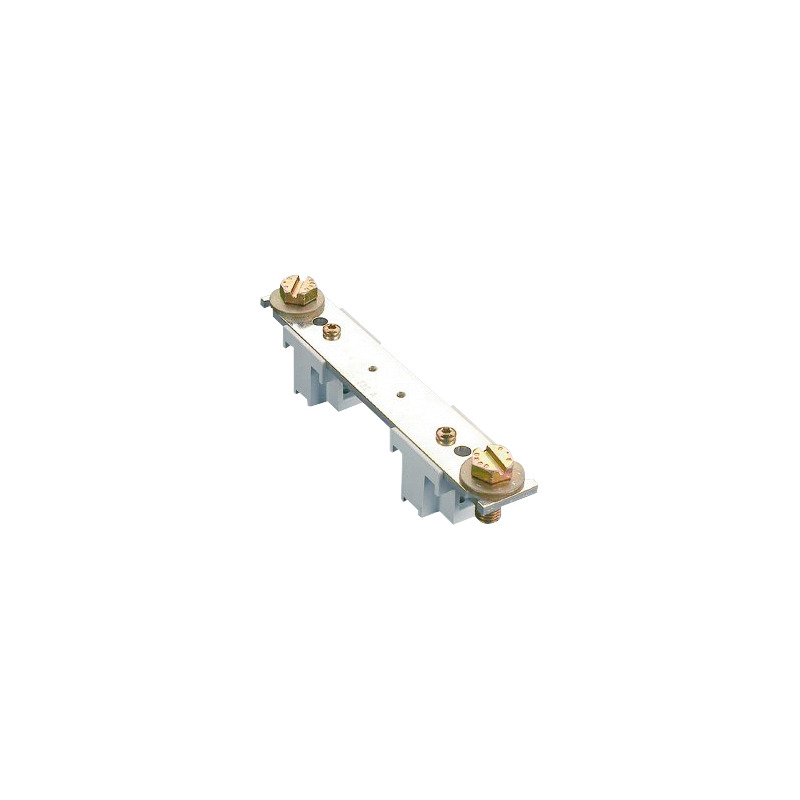

PEN terminal GN 3
