Description

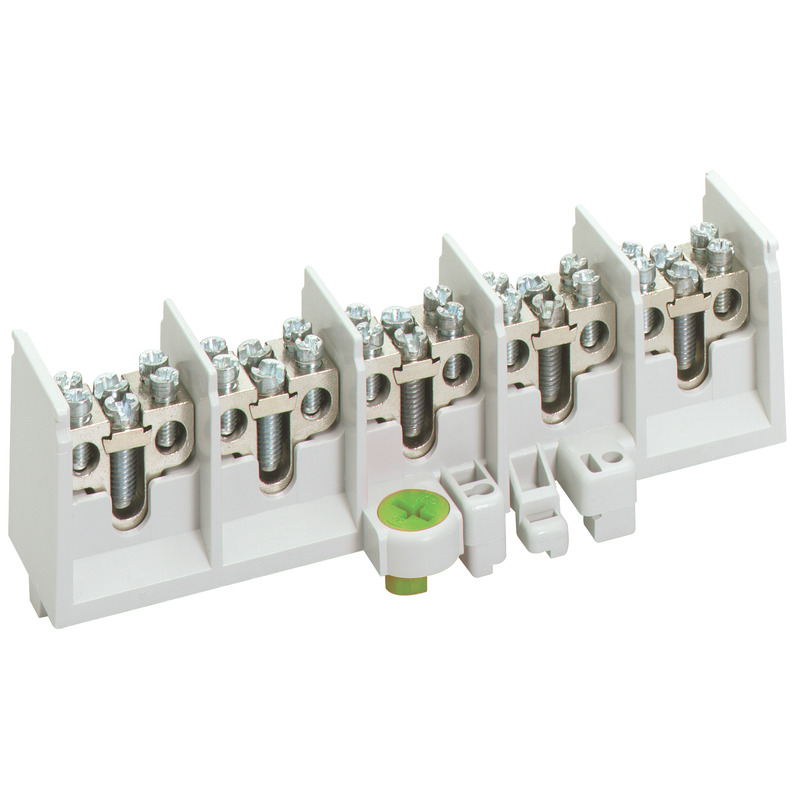

Main cable junction terminal with cross-sectional area 1x25 mm² per pole and 2 outlets 16 mm²per pole, 1 x 25 mm² per pole and 2 outlets 16 mm² per pole, 4 outputs 16A mm² on fourth pole
4-pole - 25/16², 6x PE/N
This article is archived!
Technical Data
electrical characteristics
| Rated operating voltage AC | 400 V |
|---|---|
| Number of poles | 4 |
| Connection 1: Connection type | Screws |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (min) | 2.5 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (max) | 16 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 1.5 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 25 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 1.5 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 25 mm² |
| Connection 2: Connection type | Screws |
| Connection 2: Suitable for Cu conductors | 1 |
| Connection 2: Connectable conductor cross-section, fine-wire with ferrule (min) | 1.5 mm² |
| Connection 2: Connectable conductor cross-section, fine-wire with ferrule (max) | 10 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (min) | 1.5 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (max) | 16 mm² |
| Connection 2: Connectable conductor cross-section, stranded (min) | 1.5 mm² |
| Connection 2: Connectable conductor cross-section, stranded (max) | 16 mm² |
Dimensions
| Weight | 0.2743 kg |
|---|
Material characteristics
| Flammability class according with UL94 | V0 |
|---|---|
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
mechanical properties
| Connection 1: Tightening moment | 2.5 Nm |
|---|---|
| Connection 2: Tightening torque | 2.5 Nm |
Sales Information
| EAN | 4013902675753 |
|---|---|
| ETIM Class | EC000275 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 1 |
Material
| Insulating body material | Thermoplastic |
|---|
Logistic data
Inner packaging
| EAN / GTIN | 4013902675753 |
|---|---|
| Width | 0.155 m |
| Weight | 0.3 kg |
| Height | 0.06 m |
| Quantity | 1 pieces |
| Depth | 0.05 m |
Outer packaging
| EAN / GTIN | 4013902343379 |
|---|---|
| Width | 0.3 m |
| Weight | 7.5 kg |
| Height | 0.155 m |
| Quantity | 25 pieces |
| Depth | 0.25 m |
Pallet
| EAN / GTIN | 4013902343386 |
|---|---|
| Width | 0.8 m |
| Weight | 832 kg |
| Height | 1.95 m |
| Quantity | 2700 pieces |
| Depth | 1.2 m |
