for NH fuse base, for NH fuse switch disconnector, for PE/N terminals, for copper conductors, for laminated flat copper
Clamp connection, for CU conductors 1x (120-240)rm/rf, Laminated flat copper 21 x 1-14 mm
| shockproof | No |
|---|---|
| Connection 1: Connection type | Screws |
| Connection 1: Clamping points per pole | 1 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Suitable for Al conductors | 0 |
| Connection 1: Connectable conductor cross-section, fine-wire without ferrule (min) | 120 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire without ferrule (max) | 240 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (min) | 120 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (max) | 240 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 120 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 240 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 120 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 240 mm² |
| Width | 120 mm |
|---|---|
| Length | 80 mm |
| Height | 10 mm |
| Weight | 0.109 kg |
| EAN | 4013902858996 |
|---|---|
| ETIM Class | EC002498 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 1 |
| EAN / GTIN | 4013902858996 |
|---|---|
| Width | 0.12 m |
| Weight | 0.109 kg |
| Height | 0.01 m |
| Quantity | 1 pieces |
| Depth | 0.08 m |
| EAN / GTIN | 4013902325641 |
|---|---|
| Width | 0.169 m |
| Weight | 1.15 kg |
| Height | 0.108 m |
| Quantity | 10 pieces |
| Depth | 0.123 m |
| EAN / GTIN | 4013902325658 |
|---|---|
| Width | 0.8 m |
| Weight | 47.9 kg |
| Height | 0.53 m |
| Quantity | 260 pieces |
| Depth | 1.2 m |
Tender text
(07671201.TXT 481 B)
Log in to download tender texts.

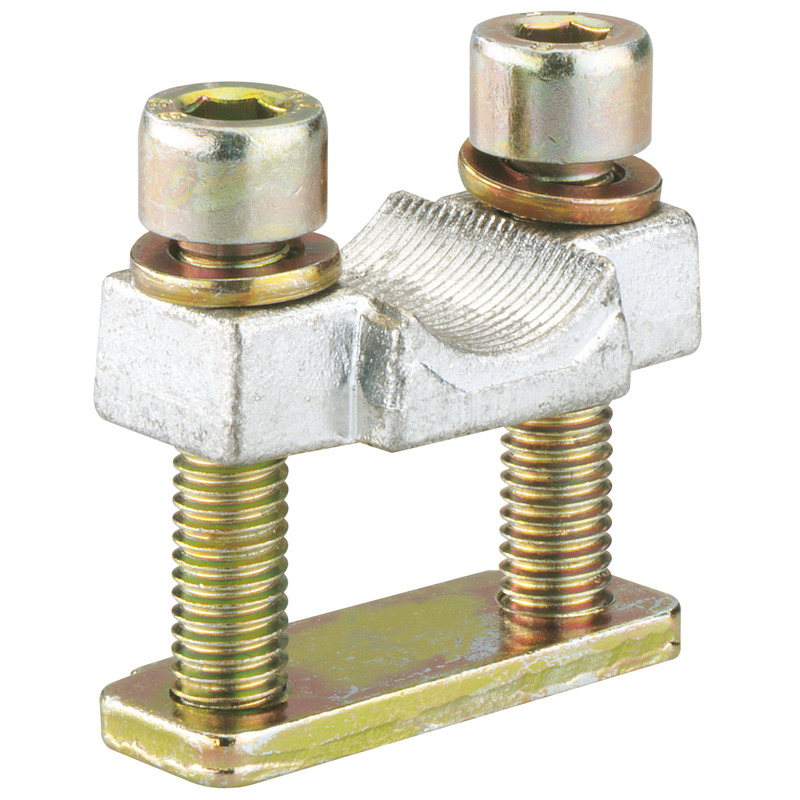

Flat terminal clamp
