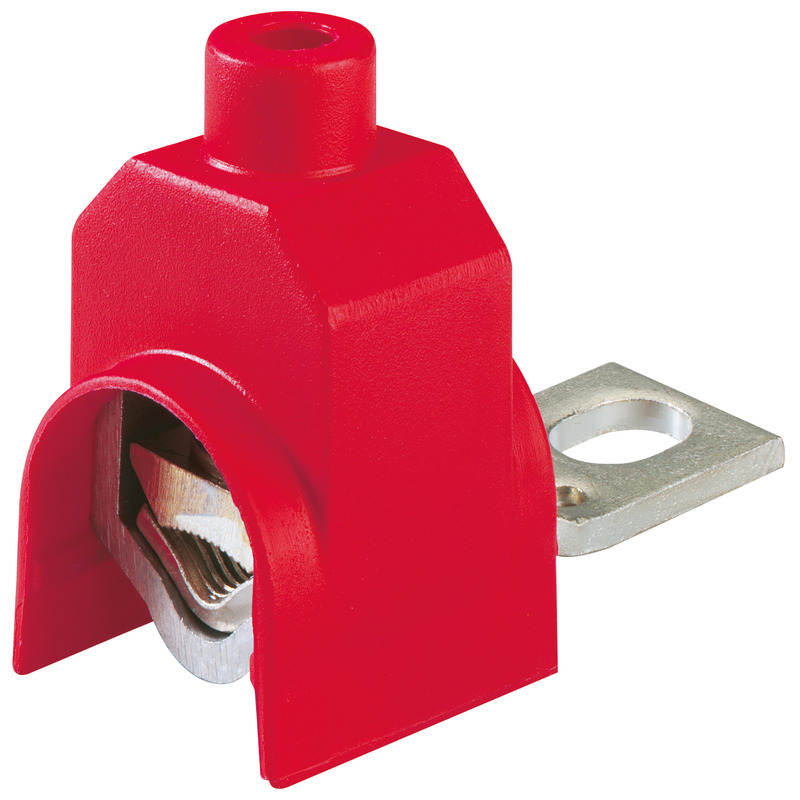

Direct terminal, universal, for aluminium and copper conductors, from KU 250 also for laminated flat cable
Direct terminal M12 for conductors, 50-240se, 50-185sm, 35-70re, 35-50re
| shockproof | No |
|---|---|
| Connection 1: Connection type | Screws |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Suitable for Al conductors | 1 |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 35 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 240 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 10 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 185 mm² |
| Width | 80 mm |
|---|---|
| Length | 65 mm |
| Height | 40 mm |
| Weight | 0.152 kg |
| Connection 1: Tightening moment | 22 Nm |
|---|
| EAN | 4013902052738 |
|---|---|
| ETIM Class | EC002498 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 1 |
| EAN / GTIN | 4013902052738 |
|---|---|
| Width | 0.08 m |
| Weight | 0.152 kg |
| Height | 0.04 m |
| Quantity | 1 pieces |
| Depth | 0.065 m |
| EAN / GTIN | 4013902325412 |
|---|---|
| Width | 0.307 m |
| Weight | 3.16 kg |
| Height | 0.112 m |
| Quantity | 20 pieces |
| Depth | 0.225 m |
| EAN / GTIN | 4013902325429 |
|---|---|
| Width | 0.8 m |
| Weight | 762 kg |
| Height | 1.93 m |
| Quantity | 3840 pieces |
| Depth | 1.2 m |
Tender text
(07612001.TXT 449 B)
Log in to download tender texts.

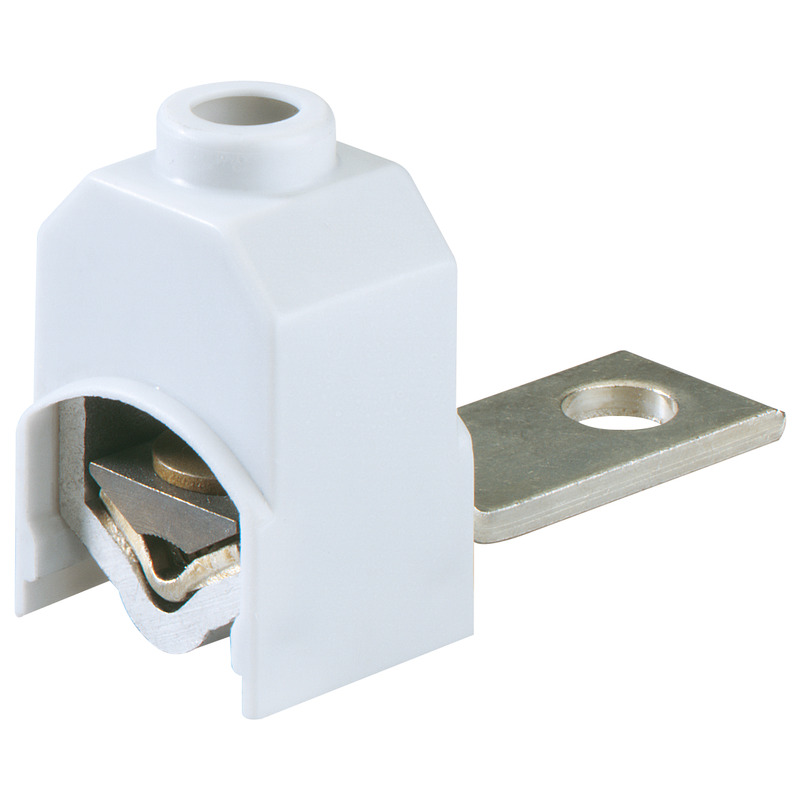

Direct terminal clamp
KU 1
Productnumber 07611001
Direct terminal M10 for conductors, 50-90se, 35-70sm, 16-50re, 10-50re
Direct terminal, universal, for aluminium and copper conductors, from KU 250 also for laminated flat...

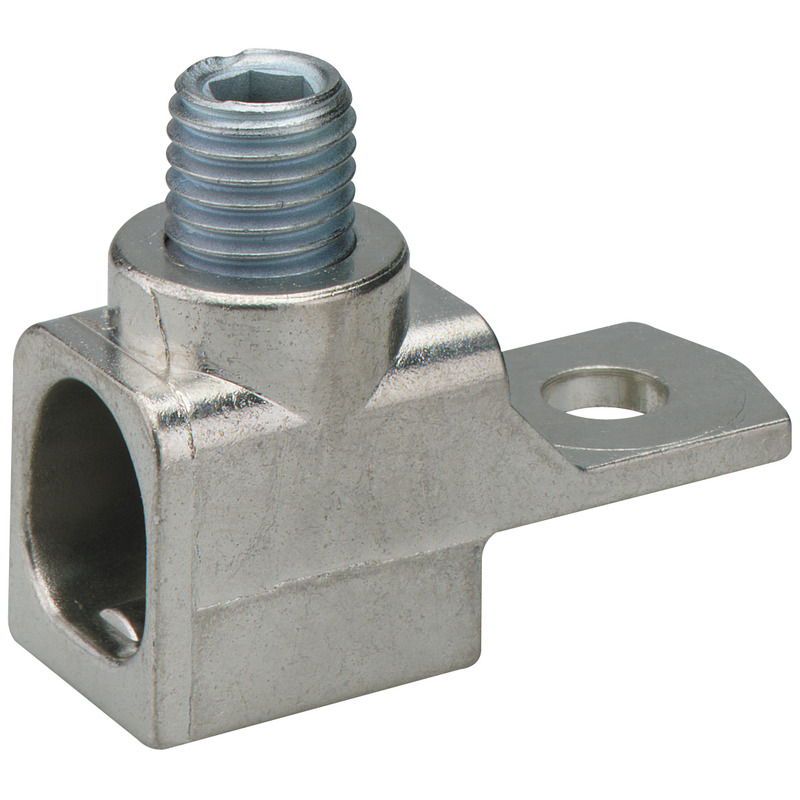

Direct terminal clamp
KU 250
Productnumber 07625001
Direct terminal M10 for conductors, 16-185 mm² and laminated flat...
Direct terminal, universal, for aluminium and copper conductors, from KU 250 also for laminated flat...

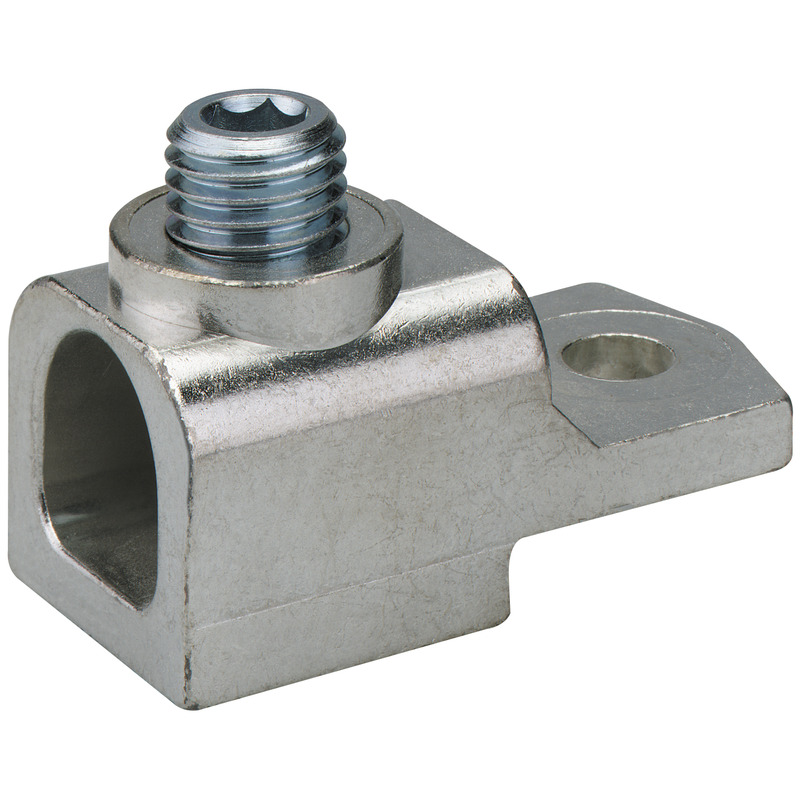

Direct terminal clamp
KU 400
Productnumber 07640001
Direct terminal M10 for conductors, 50-240 mm² (flexible up to 300...
Direct terminal, universal, for aluminium and copper conductors, from KU 250 also for laminated flat...
Direct terminal clamp
KU 630
Productnumber 07663001
Direct terminal M12 for conductors, 70-300 mm² and laminated flat...
Direct terminal, universal, for aluminium and copper conductors, from KU 250 also for laminated flat...

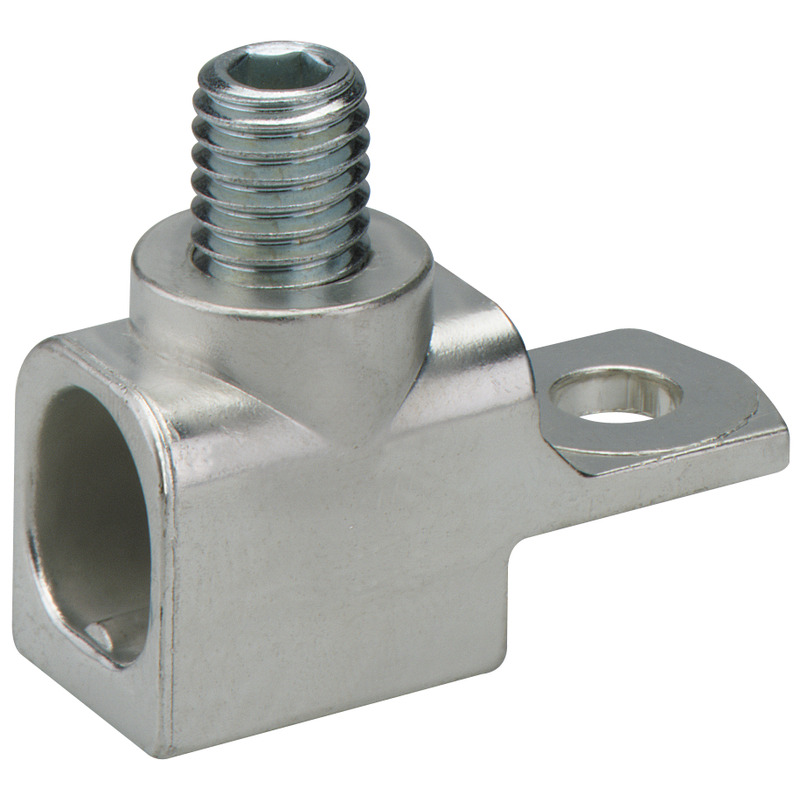

Direct terminal clamp
