#80644001 | Dimensions: 152 x 152 x 80 mm

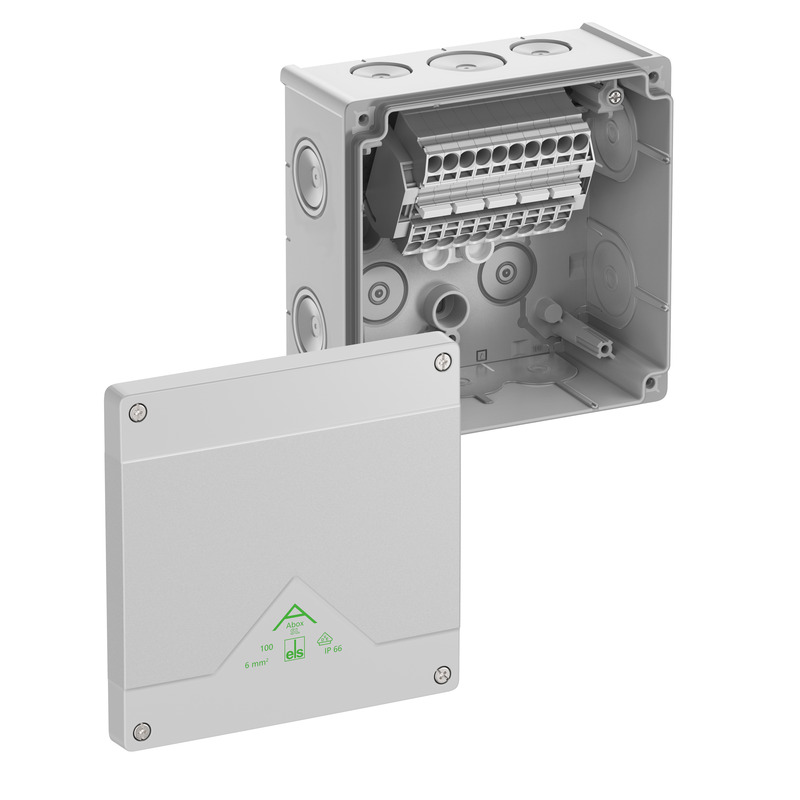

Junction box

Abox SL-6²

Junction box, protection class IP66, nominal cross-section 6 mm², U_i=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion...

Login to see price

Remember product

Description

Junction box, protection class IP66, nominal cross-section 6 mm², U_i=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M20/M25/M32, sealing range 8 - 28 mm, (2 rear, 10 side), internal fixing points, with screwless terminals for standard indoor and protected outdoor installations

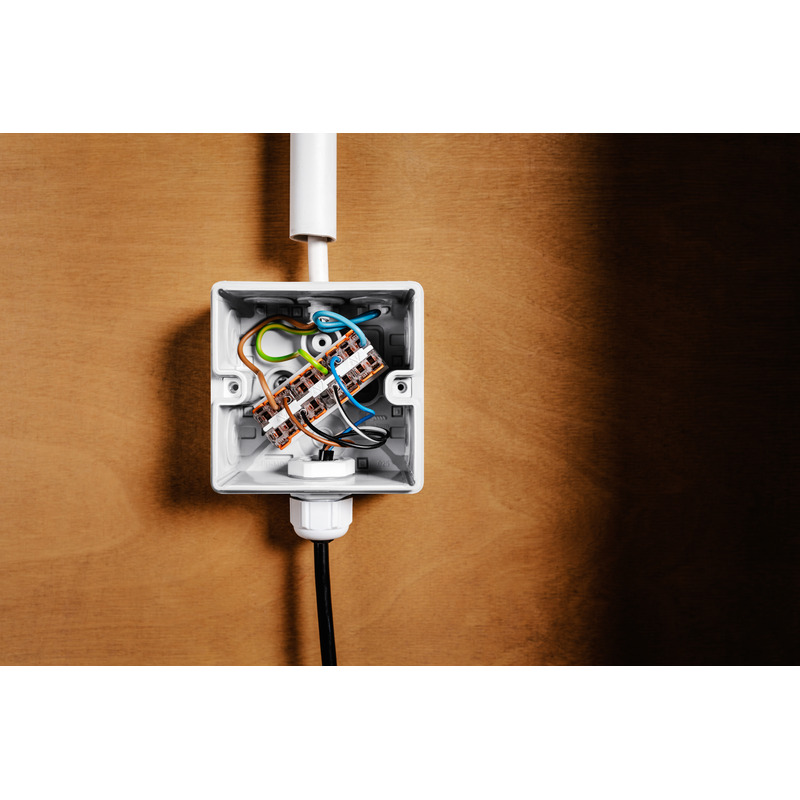

grey, I_n=41 A, with raised screwless terminal block Wago 2006-1201, 5-pole, max. nominal cross-section in accordance with DIN EN 60998: 6 mm², clampable cross-sections per pole: 4 x 0.5 to 10 mm² rigid/flexible Cu

Technical Data

electrical characteristics

Rated insulation voltage AC	690 V
Rated insulation voltage DC	690 V
Min. conductor cross section	0,5 mm²
Max. conductor cross section	6 mm²
Protection class	II
Type of protection	IP66
Rated current	41 A
Terminal type	screwless
Number of poles	5

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	152 mm
Length	152 mm
Height	80 mm
Inner length	139 mm
Inner width	140 mm
Inner height	64 mm
Weight	0.4513 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	750 °C (EN 60695-2-11)

mechanical properties

for sealing range min	8 mm
for sealing range max	28 mm
Impact strength	IK07
Sealable	yes

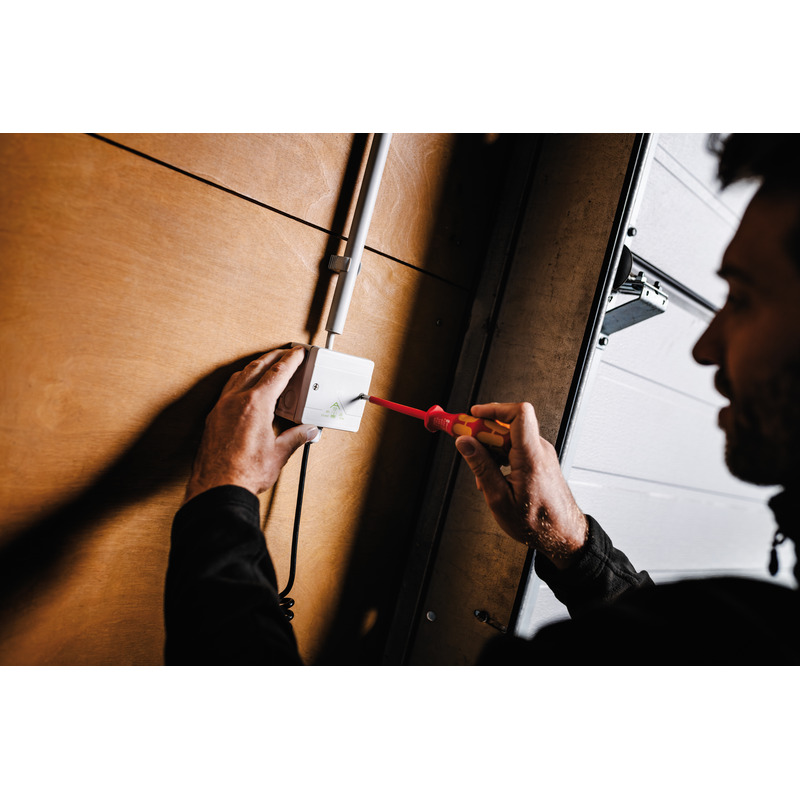

Cover screw torque	1.2 Nm
Type of fastening	Wall/ceiling mounting

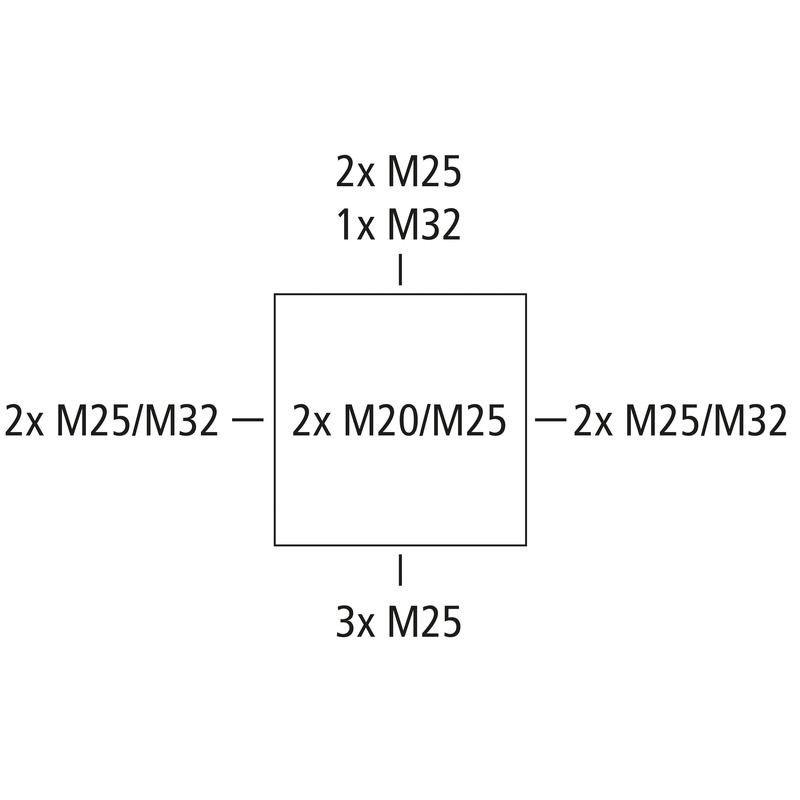

Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	55 °C
24h ambient temperature	35 °C

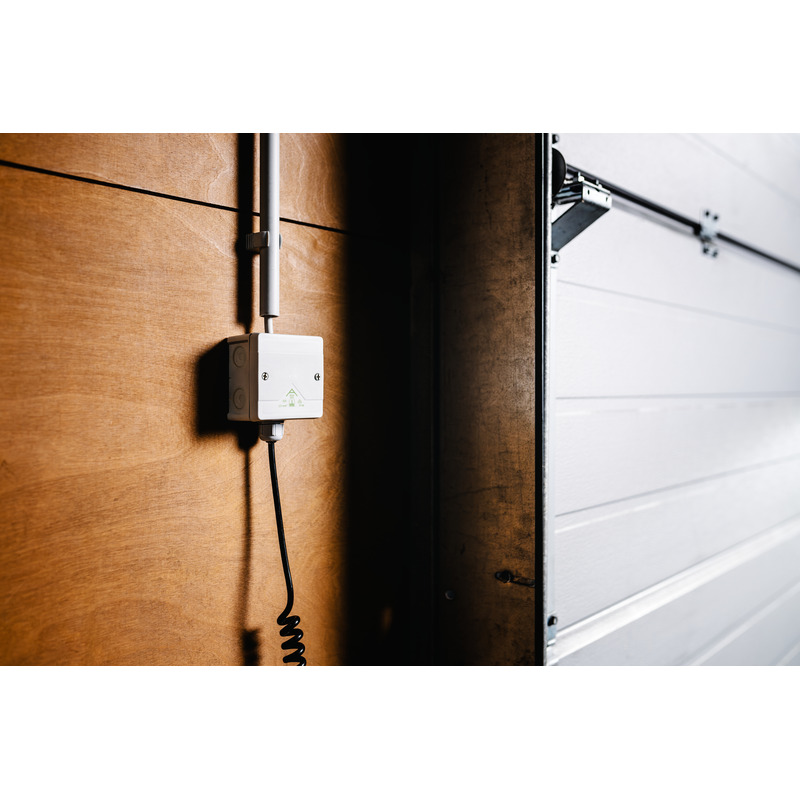

Installation location	protected outdoor areas

Sales Information

EAN	4013902660780
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polypropylene
Cover material	Polypropylene
Entry material	Thermoplastic elastomer
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel 1.4567 (V2A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)

Logistic data

Piece

EAN / GTIN	4013902660780
Width	0.152 m
Weight	0.4513 kg
Height	0.08 m
Quantity	1 pieces
Depth	0.152 m

Outer packaging

EAN / GTIN	4013902660797
Width	0.35 m
Weight	9.329 kg
Height	0.425 m
Quantity	20 pieces
Depth	0.305 m

Pallet

EAN / GTIN	4013902660803
Width	0.8 m
Weight	273.883 kg
Height	0.982 m
Quantity	240 pieces
Depth	1.2 m
