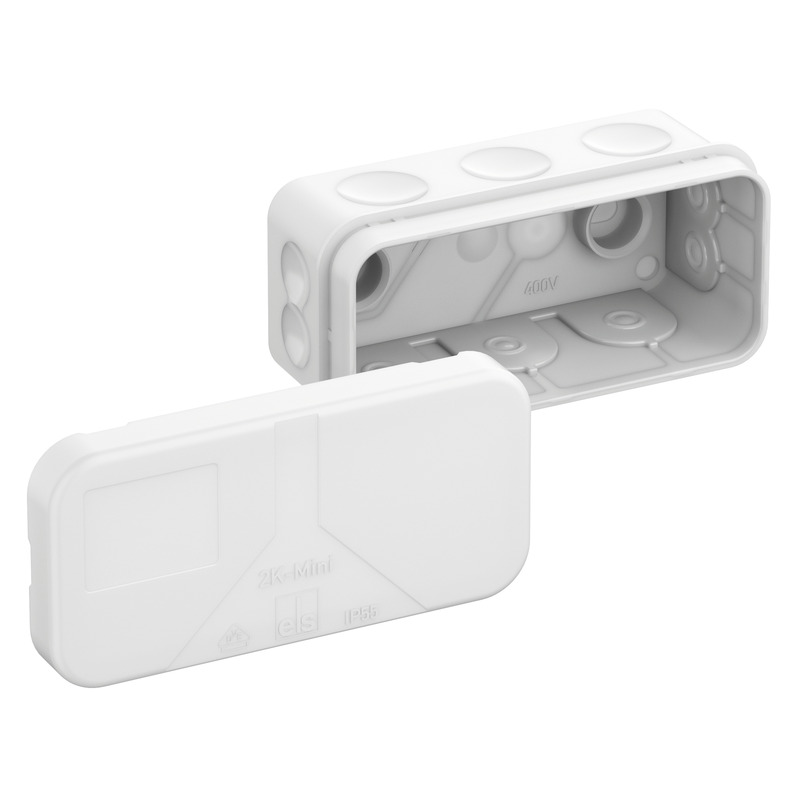

Junction box
Productnumber: 34460801 | Dimensions: 89 x 43 x 38 mm

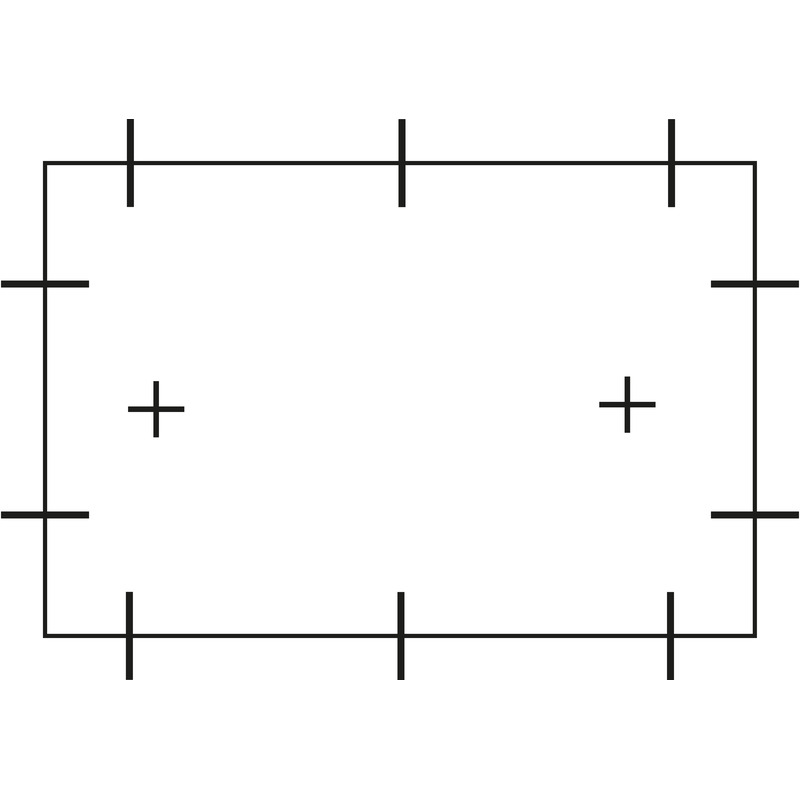

Junction box, protection class IP55, nominal cross-section 2.5 mm², Ui=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing, soft insertion membranes, sealing range 2 - 14 mm, (1 rear, 10 side), internal fixing points, for standard indoor installations
white, without terminals
| Rated insulation voltage AC | 400 V |
|---|---|
| Max. conductor cross section | 2,5 mm² |
| Protection class | II |
| Type of protection | IP55 |
| Terminal type | none |
| UL Type Rating | not specified |
| Base unit colour | white |
|---|---|
| Cover colour | white |
| Width | 89 mm |
|---|---|
| Length | 43 mm |
| Height | 38 mm |
| Inner length | 33 mm |
| Inner width | 79 mm |
| Inner height | 33 mm |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| Industry quality | no |
| for sealing range min | 2 mm |
|---|---|
| for sealing range max | 14 mm |
| Impact strength | IK07 |
| Sealable | no |
| Type of fastening | Wall/ceiling mounting |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| Entry material | Thermoplastic elastomer |
| Sealing material | Thermoplastic elastomer |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| CAD-Data | Download 3D-CAD-Data |
|---|
