Description

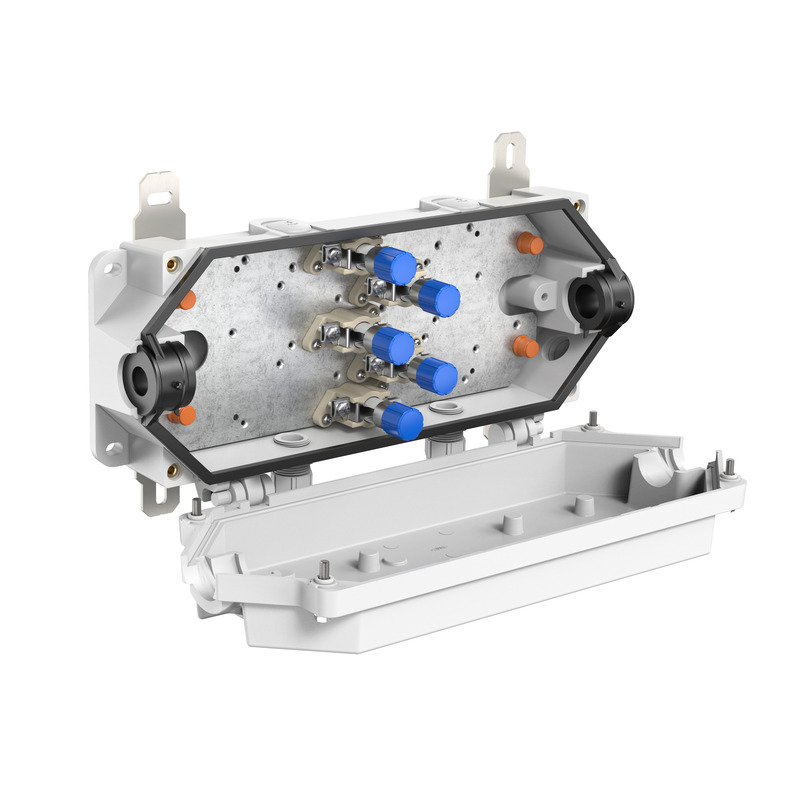

Junction box, protection class IP66/IP67, Ui=400 V AC, M25, (5 side), external fixing lugs, for installations in the industrial environment and tunnel applications, pressure and suction tight in accordance with Gotthard guideline. Halogen-free enclosure made of special thermosetting plastic, terminals made of special high-temperature-resistant ceramic. External fixing lugs and cover screws made of stainless steel 1.4571
grey, Feed-through: 5-pole terminal for uncut wire, clamping range for uncut wire 16 mm² to 50mm², clamping range for cut wire 16 mm² to 35mm², rated current 100A. T-piece 5-pole 2 x 2.5 - 6 mm², rated current 40A. Sealing range, main cable: 21 - 26 mm (other sealing ranges on request)
Accessories supplied:
2 off M25 cable gland, sealing range 9-16mm
4 off M25 locking screws
