Description

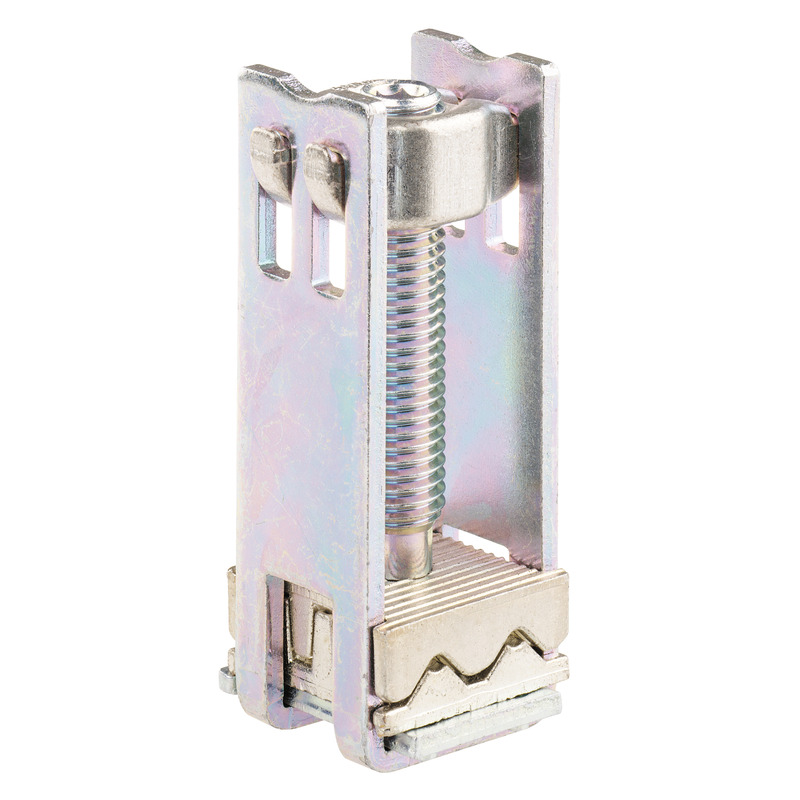

Busbar terminal, for rails 12 x 5 mm / 12 x 10 mm, for aluminium and copper conductors
for AL/CU-conductors 2x (6-50)re, 2x (6-70)rm, 2x (50-70)se, 2x (35-70)sm
This article is archived!
Technical Data
electrical characteristics
| Number of poles | 1 |
|---|---|
| shockproof | No |
| Connection 1: Connection type | Screws |
| Connection 1: Clamping points per pole | 1 |
Dimensions
| Weight | 0.257 kg |
|---|
Sales Information
| Custom tariff number | 85369010 |
|---|
Downloads
Download Data Sheet
Planningdata
Tender text
Tender text
(07507201.TXT 411 B)
Log in to download tender texts.
