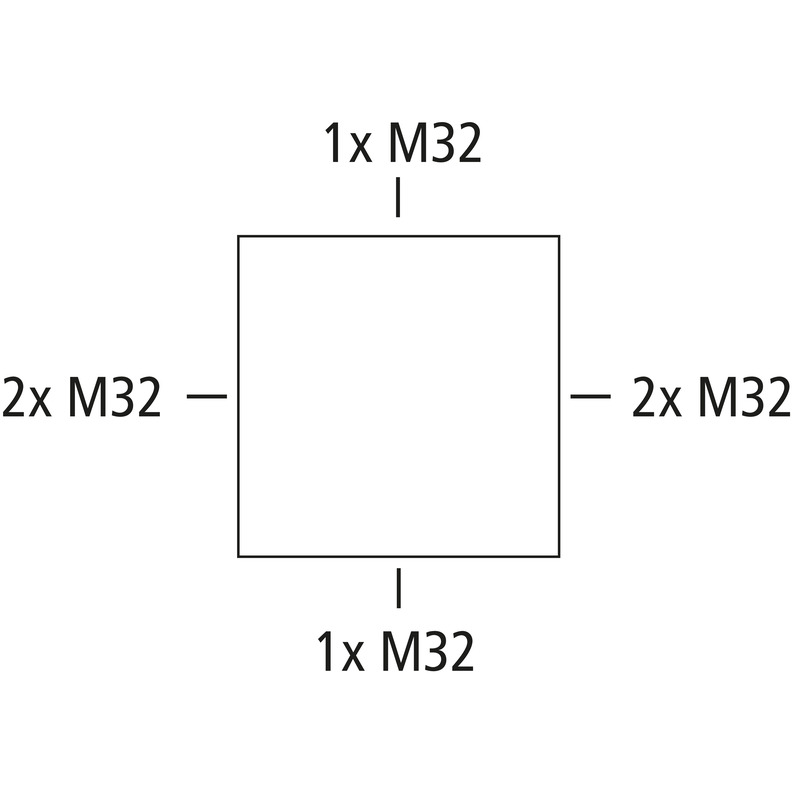

Junction Box, Junction box, protection class IP54, nominal cross-section 10 mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), knockouts, M32, (7 side), internal fixing points, for standard indoor installations
grey, with screw terminal, 5-pole - 10 mm² (5 x 4² / 4 x 6² / 3 x 10²)
Accessories supplied:
4 Attachment bushes IP54 M32 sealing range 13 - 23 mm, 1 sealing plugs M32, 1 sealing kit
| Rated insulation voltage AC | 690 V |
|---|---|
| Max. conductor cross section | 10 mm² |
| Protection class | II |
| Type of protection | IP54 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 115 mm |
|---|---|
| Length | 115 mm |
| Height | 66 mm |
| Weight | 0.449 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V0 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK05 |
| Sealable | no |
| Cover screw torque | 1.8 Nm |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902040247 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85369095 |
| Minimum order quantity | 1 |
| Base unit material | Duroplast |
|---|---|
| Cover material | Duroplast |
| Sealing material | Thermoplastic elastomer |
| Cover screw material | Steel |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902312634 |
|---|---|
| Width | 0.365 m |
| Weight | 9.423 kg |
| Height | 0.265 m |
| Quantity | 20 pieces |
| Depth | 0.255 m |
| EAN / GTIN | 4013902312641 |
|---|---|
| Width | 0.8 m |
| Weight | 526.842 kg |
| Height | 1.72 m |
| Quantity | 1080 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902040247 |
|---|---|
| Width | 0.115 m |
| Weight | 0.449 kg |
| Height | 0.066 m |
| Quantity | 1 pieces |
| Depth | 0.115 m |
