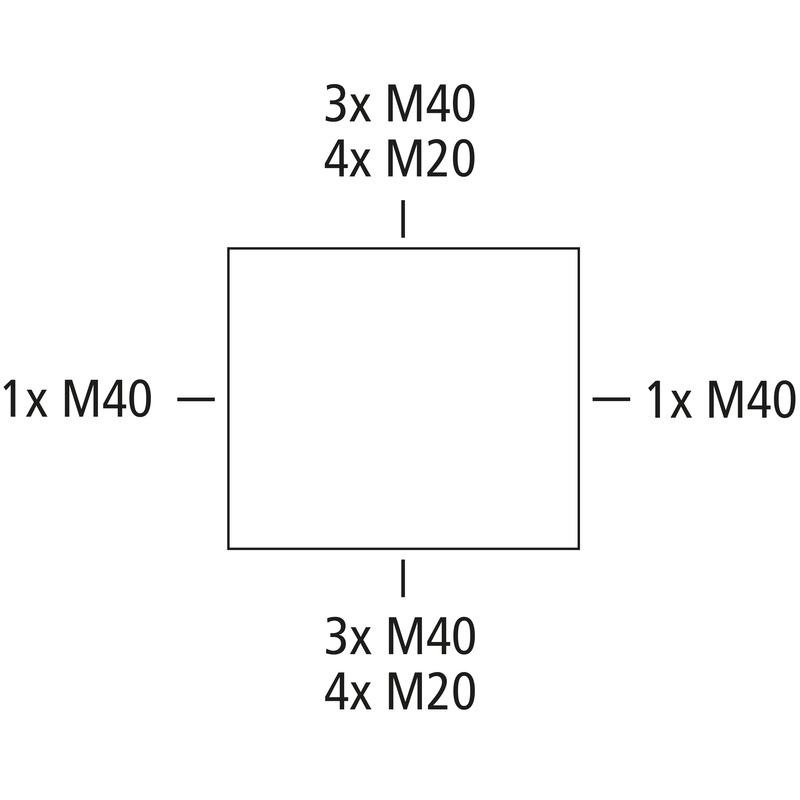

Junction box, protection class IP54, nominal cross-section 25 mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), knockouts, M20/M40, (16 side), internal fixing points, for standard indoor installations
grey, with screw terminal, 5-pole - 25 mm² (5 x 16² / 3 x 25²)
Accessories supplied:
4 Attachment bushes IP54 M40 sealing range 17 - 30 mm, 1 sealing plugs M40, 1 Sealing kit
| Rated insulation voltage AC | 690 V |
|---|---|
| Max. conductor cross section | 25 mm² |
| Protection class | II |
| Type of protection | IP54 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 256 mm |
|---|---|
| Length | 171 mm |
| Height | 106 mm |
| Weight | 1.5882 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V0 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK05 |
| Sealable | no |
| Cover screw torque | 1.8 Nm |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902040353 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85369095 |
| Minimum order quantity | 1 |
| Base unit material | Duroplast |
|---|---|
| Cover material | Duroplast |
| Sealing material | Thermoplastic elastomer |
| Cover screw material | Steel |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902312719 |
|---|---|
| Width | 0.365 m |
| Weight | 10.1192 kg |
| Height | 0.355 m |
| Quantity | 6 pieces |
| Depth | 0.28 m |
| EAN / GTIN | 4013902312726 |
|---|---|
| Width | 0.8 m |
| Weight | 301.3376 kg |
| Height | 1.58 m |
| Quantity | 168 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902040353 |
|---|---|
| Width | 0.256 m |
| Weight | 1.5882 kg |
| Height | 0.106 m |
| Quantity | 1 pieces |
| Depth | 0.171 m |
