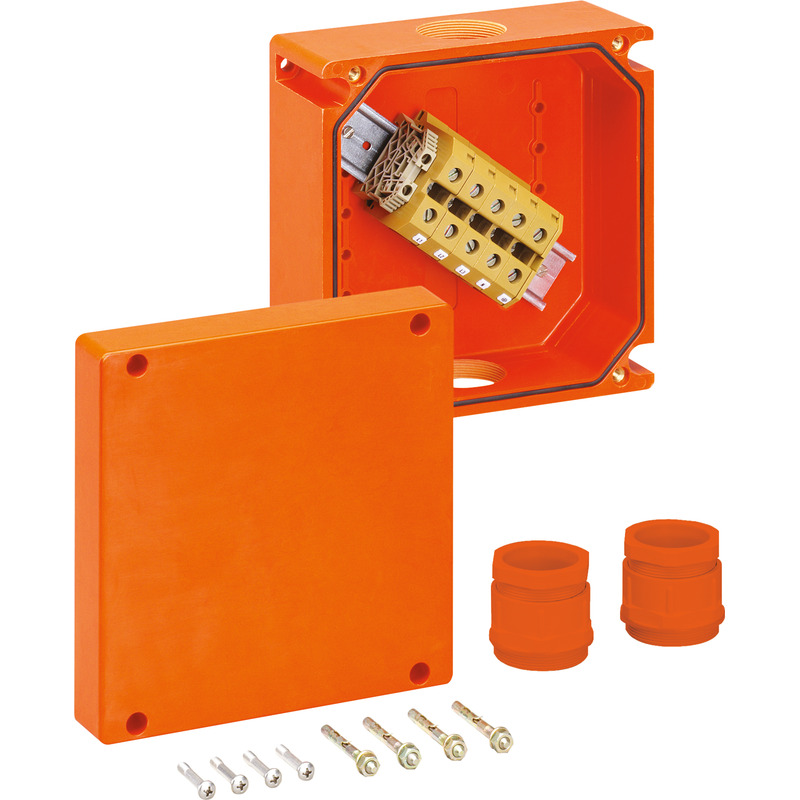

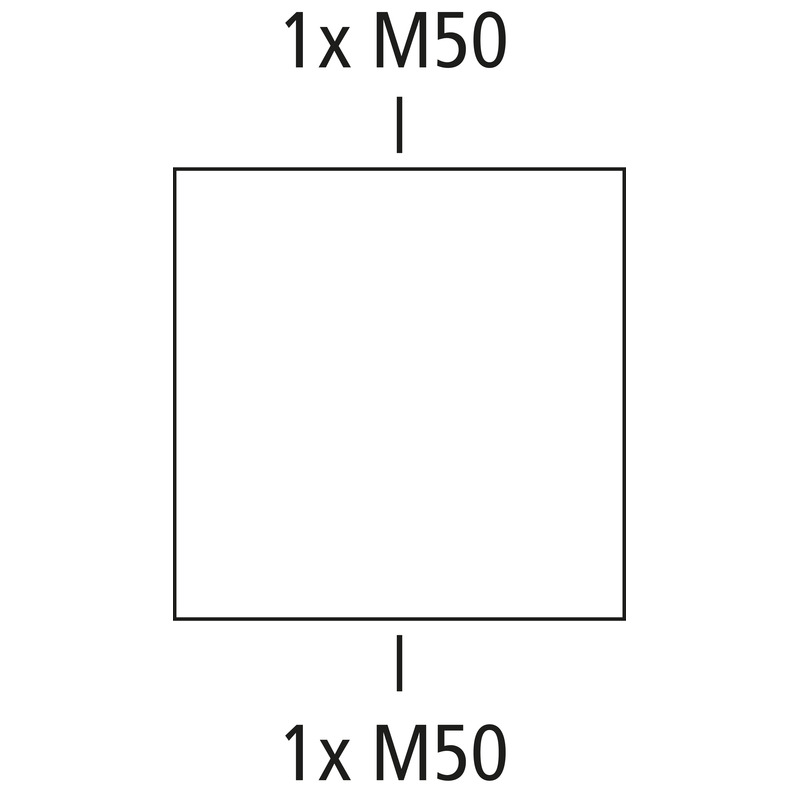

Junction box, protection class IP66, Ui=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), M50, (2 side), external fixing lugs, with E30 electrical functional integrity according to DIN 4102 Part 12, enclosure and terminal block are made from halogen-free special thermosetting plastic
orange, Connection box 5-pole, clamping capacity per pole 2 x 2.5 - 35 mm²
Accessories supplied:
2 off cable glands M50, seal range 23 - 34 mm, wall plug set ø 6 mm
| Rated insulation voltage AC | 450 V |
|---|---|
| Rated insulation voltage DC | 450 V |
| Min. conductor cross section | 2,5 mm² |
| Max. conductor cross section | 35 mm² |
| Protection class | II |
| Type of protection | IP66 |
| secured junction | no |
| Circuit integrity class | E30 |
| Number of poles (T-piece) | 0 |
| Number of poles (feed-through) | 5 |
| UL Type Rating | not specified |
| Number of fuses in T-piece | 0 |
| Base unit colour | orange |
|---|---|
| Cover colour | orange |
| Range of application | Connectors and T-pieces |
|---|
| Width | 200 mm |
|---|---|
| Length | 200 mm |
| Height | 110 mm |
| Weight | 3.76 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V0 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK08 |
| Sealable | no |
| Cover screw torque | 2.5 Nm |
| Fastening | external fixing lugs |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902907588 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85369095 |
| Minimum order quantity | 1 |
| Base unit material | Duroplast |
|---|---|
| Cover material | Duroplast |
| Sealing material | Polyurethane |
| Cover screw material | Stainless steel 1.4571 (V4A) |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902907588 |
|---|---|
| Width | 0.21 m |
| Weight | 3.89 kg |
| Height | 0.125 m |
| Quantity | 1 pieces |
| Depth | 0.209 m |
| EAN / GTIN | 4013902307920 |
|---|---|
| Width | 0.8 m |
| Weight | 442.12 kg |
| Height | 0.607 m |
| Quantity | 108 pieces |
| Depth | 1.2 m |
