Screwless PE/N clamping rail, for installation in AK small distributors from AK 14 and AKL/AKi empty housings as additional terminals or for replacement requirements
Single-stage N terminal rail, with 4 screwable clamping points 2.5 mm² - 16 mm², and 28 screwless clamping points 1.5 mm² - 4 mm², following removal of the cross-connection, distribution into, 2 N potentials each with 3 screwable clamping points, 2.5 mm² - 16 mm² and 14 screwless, clamping points 1.5 mm² - 4 mm²
| Rated operating voltage AC | 400 V |
|---|---|
| Rated current | 76 A |
| Number of poles | 2 |
| shockproof | Yes |
| Connection 1: Connection type | Screws |
| Connection 1: Strip length | 13 mm |
| Connection 1: Clamping points per pole | 3 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Suitable for Al conductors | 0 |
| Connection 1: Connectable conductor cross-section, fine-wire without ferrule (min) | 1.5 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire without ferrule (max) | 16 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (min) | 1.5 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (max) | 16 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 1.5 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 16 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 1.5 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 16 mm² |
| Connection 2: Connection type | Screwless |
| Connection 2: Stripping length | 12 mm |
| Connection 2: Clamping points per pole | 14 |
| Connection 2: Suitable for Cu conductors | 1 |
| Connection 2: Suitable for Al conductors | 0 |
| Connection 2: Connectable conductor cross-section, fine-wire without ferrule (min) | 1.5 mm² |
| Connection 2: Connectable conductor cross-section, fine-wire without ferrule (max) | 4 mm² |
| Connection 2: Connectable conductor cross-section, fine-wire with ferrule (min) | 1.5 mm² |
| Connection 2: Connectable conductor cross-section, fine-wire with ferrule (max) | 4 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (min) | 1.5 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (max) | 4 mm² |
| Connection 2: Connectable conductor cross-section, stranded (min) | 1.5 mm² |
| Connection 2: Connectable conductor cross-section, stranded (max) | 4 mm² |
| Width | 300 mm |
|---|---|
| Length | 90 mm |
| Height | 60 mm |
| Weight | 0.137 kg |
| Flammability class according with UL94 | V2 |
|---|---|
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Connection 1: Tightening moment | 1.6 Nm |
|---|
| EAN | 4013902980215 |
|---|---|
| ETIM Class | EC001284 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 1 |
| Insulating body material | Thermoplastic |
|---|
| EAN / GTIN | 4013902980215 |
|---|---|
| Width | 0.3 m |
| Weight | 0.137 kg |
| Height | 0.06 m |
| Quantity | 1 pieces |
| Depth | 0.09 m |
| EAN / GTIN | 4013902343959 |
|---|---|
| Width | 0.357 m |
| Weight | 3.64 kg |
| Height | 0.127 m |
| Quantity | 25 pieces |
| Depth | 0.257 m |
| EAN / GTIN | 4013902343966 |
|---|---|
| Width | 0.8 m |
| Weight | 411.12 kg |
| Height | 1.67 m |
| Quantity | 2700 pieces |
| Depth | 1.2 m |
Tender text
(79031801.TXT 754 B)
Log in to download tender texts.
Terminal rails

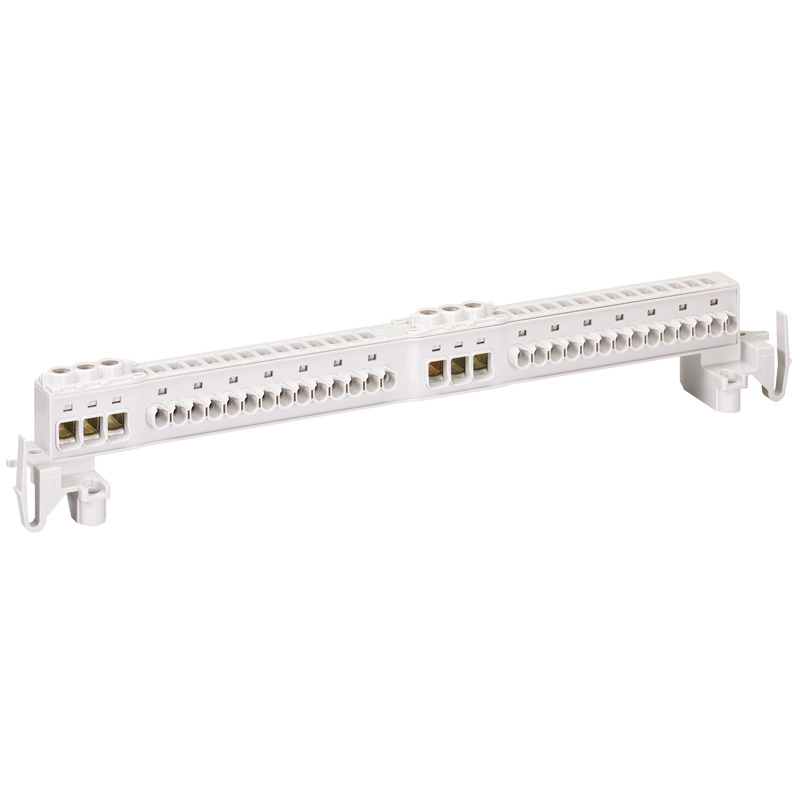

AK 14 PEN-SL
Productnumber 79031701
Single-stage PE/N terminal rail with each, 3 screwable clamping...
Screwless PE/N clamping rail, for installation in AK small distributors from AK 14 and AKL/AKi empty...
Terminal rails

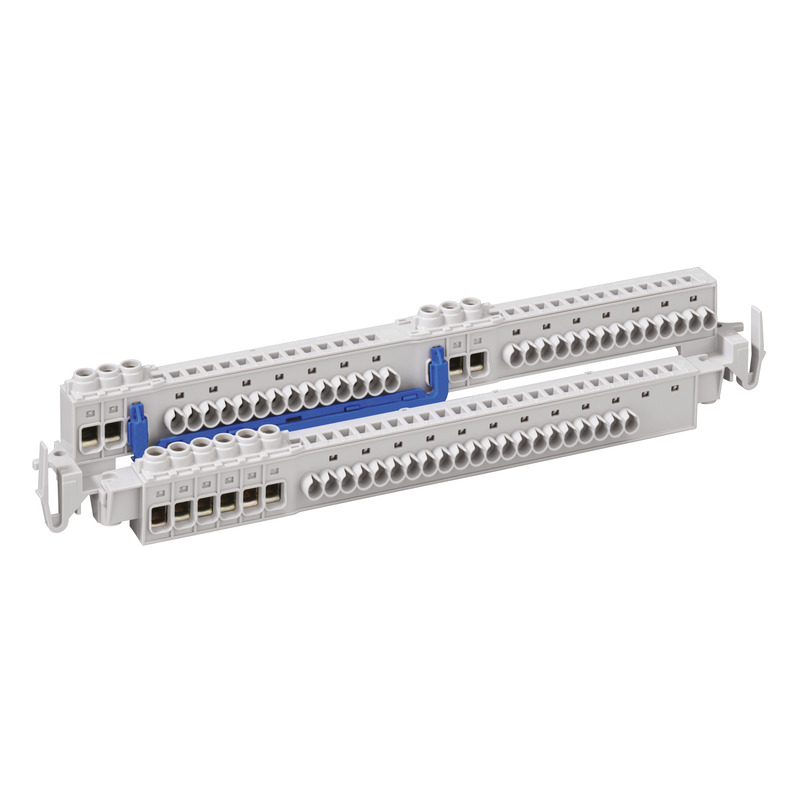

AK 28 PEN-SL
