Description

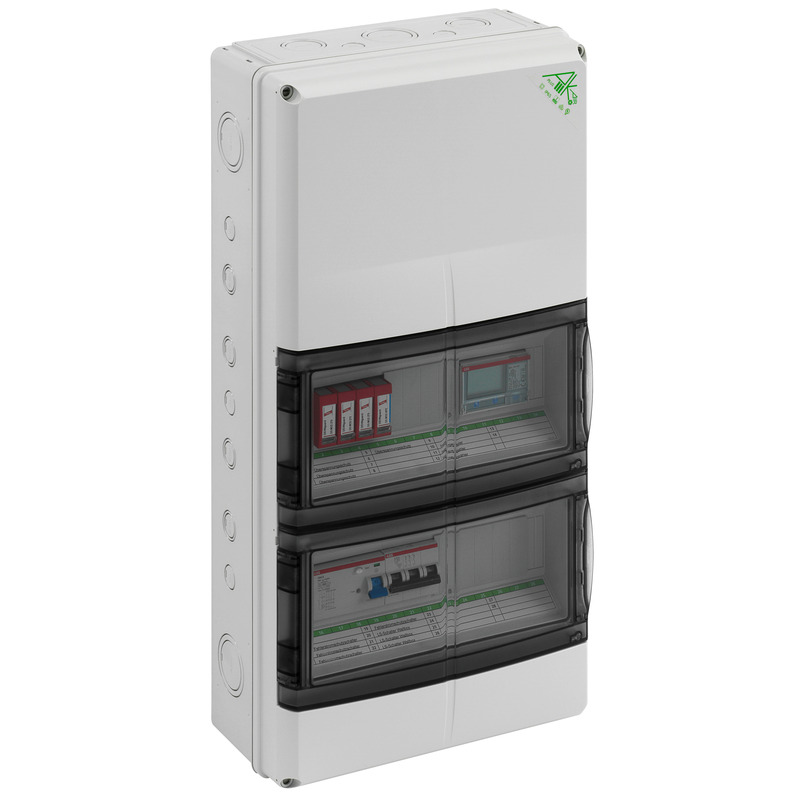

Small distributions boards, protection class IP65, type-tested to EN 61439-3, prewired ready for connection to input and output terminals 10 mm²
for an 11 kW wallbox with integrated 6mA DC monitoring
equipped with:
- 1 x Miniature circuit breaker C 16 A, 3p
- 1 x Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A
- 1 x Surge protection device (SPD) Type 1 + Type 2 for TN-S systems, energy-coordinated protection effect with terminal equipment Type 1 + type 2 + type 3
- 1 x
Energy meter for use in 3 or 4 wire systems, max. 65A, MID approved, RS-485 communication over Modbus RTU or EQ Bus
Accessories supplied:
Double membrane seals: 2x M16, 10x M20, 4x M25, 2x M32, 2x M40, cable glands: 1x M20, 2x M40, sealing plugs, cover and labelling strips
