Description
Stepped nipple, IP55, with closed sealing membrane, can be cut into multiple steps, thermoplastic elastomer (TPE), grey, for wall thicknesses from 1.5 - 4 mm
Sealing range 5 - 21 mm
#21642501 | Dimensions: 30 x 30 x 19 mm
Stepped nipple
Technical Data
electrical characteristics
| Type of protection | IP55 |
|---|
Colours
| Accessory colour | light grey |
|---|
Dimensions
| Width | 30 mm |
|---|---|
| Length | 30 mm |
| Height | 19 mm |
| Weight | 0.0033 kg |
Material characteristics
| UV-resistant | no |
|---|---|
| Halogen free | yes |
mechanical properties
| for wall thickness max | 4.5 mm |
|---|---|
| for wall thickness min | 1.5 mm |
| for sealing range min | 5 mm |
| for sealing range max | 21 mm |
Ambient conditions
| Installation location | Indoors |
|---|
Sales Information
| EAN | 4013902859993 |
|---|---|
| ETIM Class | EC000451 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 50 |
Logistic data
Piece
| EAN / GTIN | 4013902859993 |
|---|---|
| Width | 0.03 m |
| Weight | 0.0033 kg |
| Height | 0.019 m |
| Quantity | 1 pieces |
| Depth | 0.03 m |
Inner packaging
| EAN / GTIN | 4013902353637 |
|---|---|
| Width | 0.115 m |
| Weight | 0.198 kg |
| Height | 0.165 m |
| Quantity | 50 pieces |
| Depth | 0.083 m |
Outer packaging
| EAN / GTIN | 4013902334919 |
|---|---|
| Width | 0.357 m |
| Weight | 1.383 kg |
| Height | 0.127 m |
| Quantity | 300 pieces |
| Depth | 0.257 m |
Pallet
| EAN / GTIN | 4013902334926 |
|---|---|
| Width | 0.8 m |
| Weight | 172 kg |
| Height | 1.67 m |
| Quantity | 32400 pieces |
| Depth | 1.2 m |
Downloads
Download Data Sheet
Dimensioned drawing
Planningdata
Tender text
Tender text
(21642501.TXT 505 B)
Log in to download tender texts.
CAD-Data
CAD-Data
(Download 3D-CAD-Data)
Log in to download tender texts.
Similar products
Stepped nippleSNI M20
Stepped nipple
SNI M20
Productnumber 21642001
Sealing range 5 - 16 mm
Stepped nipple, IP55, with closed sealing membrane, can be cut into multiple steps, thermoplastic...

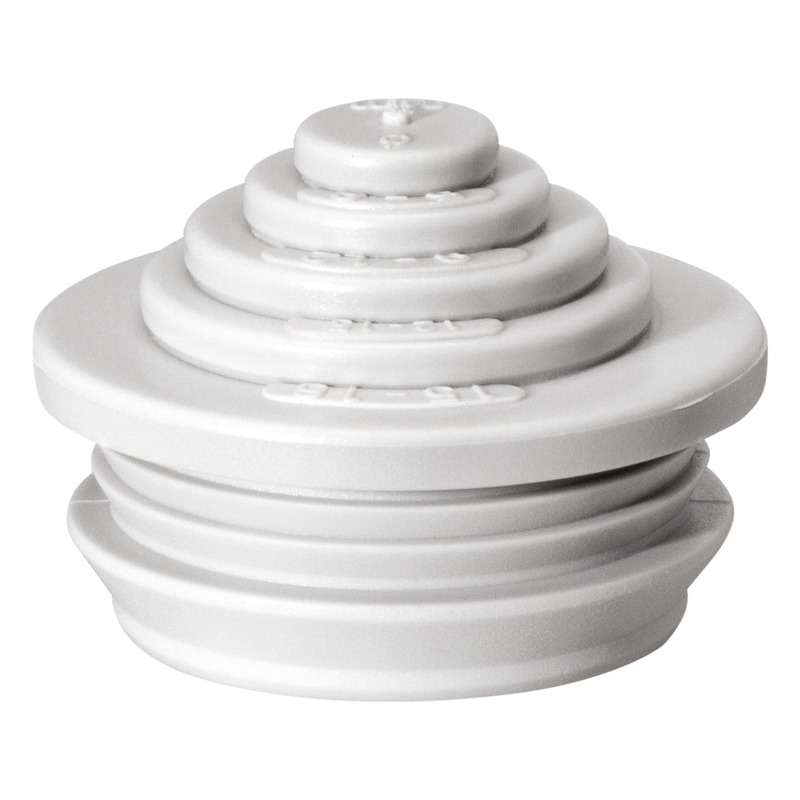

Stepped nippleSNI M32
Stepped nipple
SNI M32
Productnumber 21643201
Sealing range 13 - 26,5 mm
Stepped nipple, IP55, with closed sealing membrane, can be cut into multiple steps, thermoplastic...
Stepped nippleSNI M40
Stepped nipple
SNI M40
Productnumber 21644001
Sealing range 13 - 34 mm
Stepped nipple, IP55, with closed sealing membrane, can be cut into multiple steps, thermoplastic...

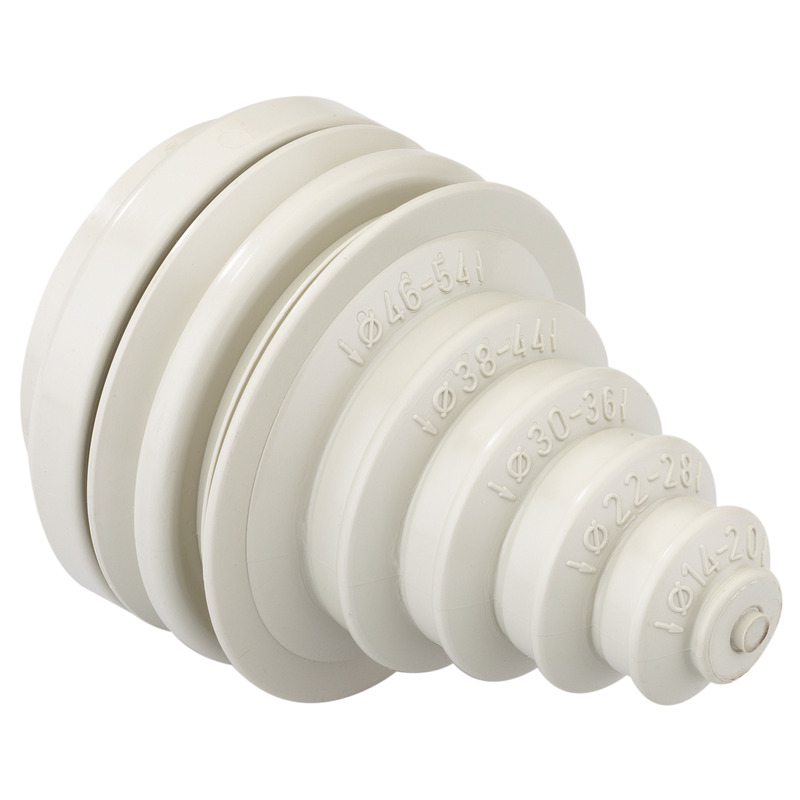

Stepped nippleSNI M63
