Description

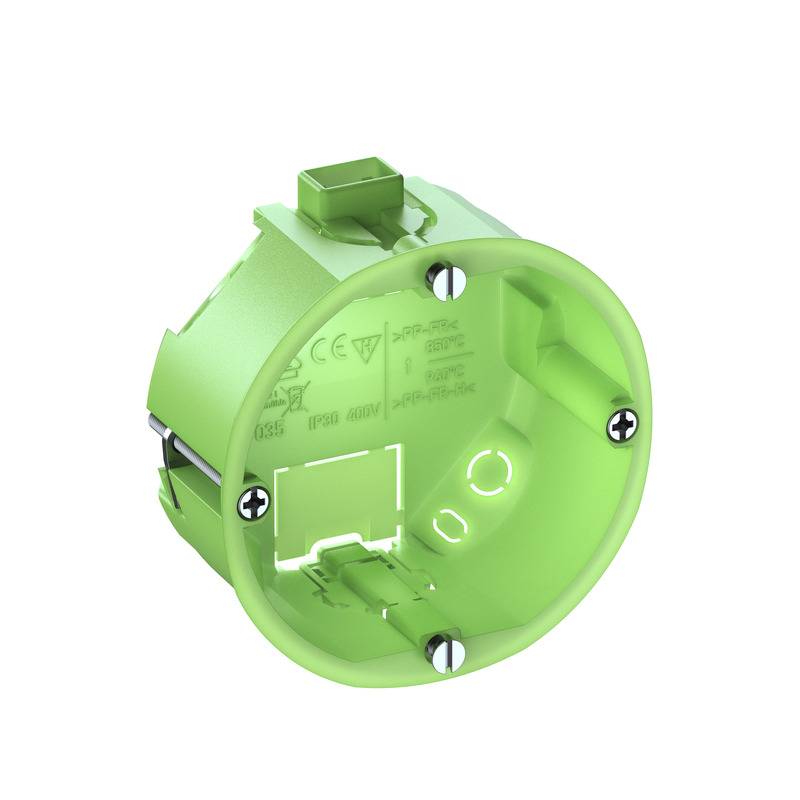

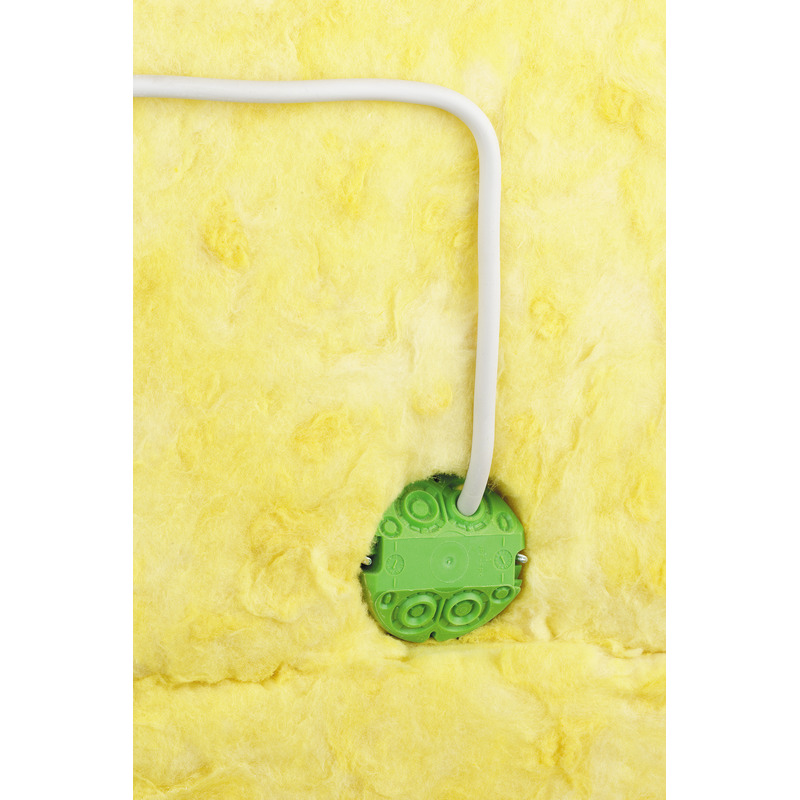

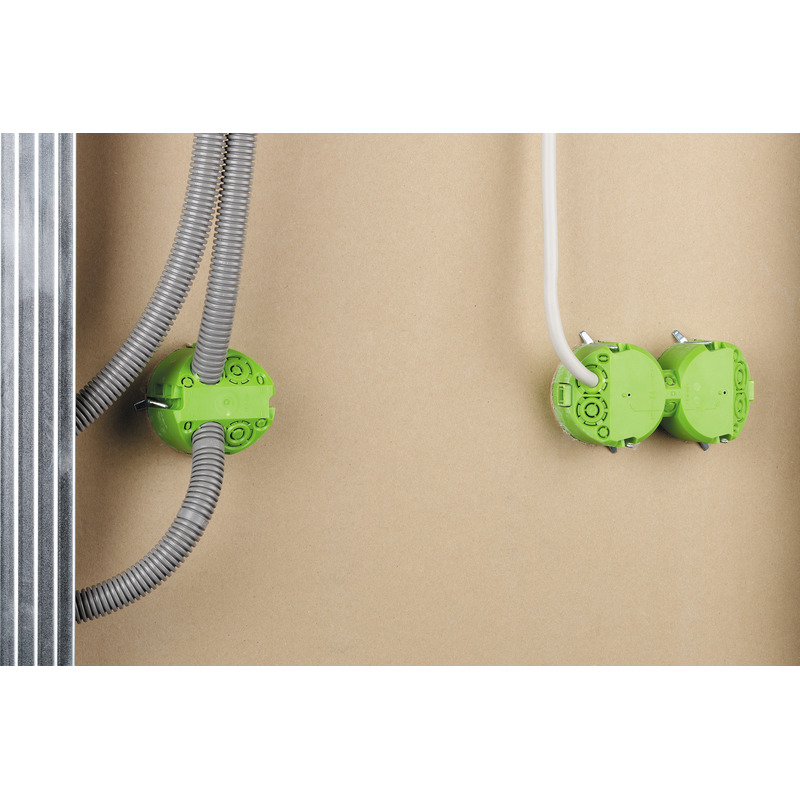

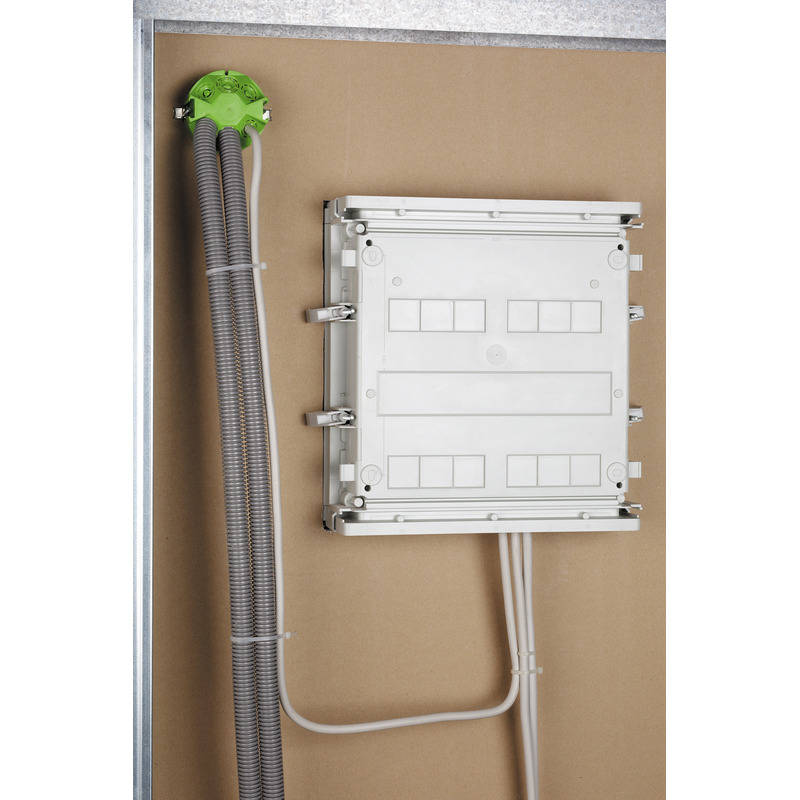

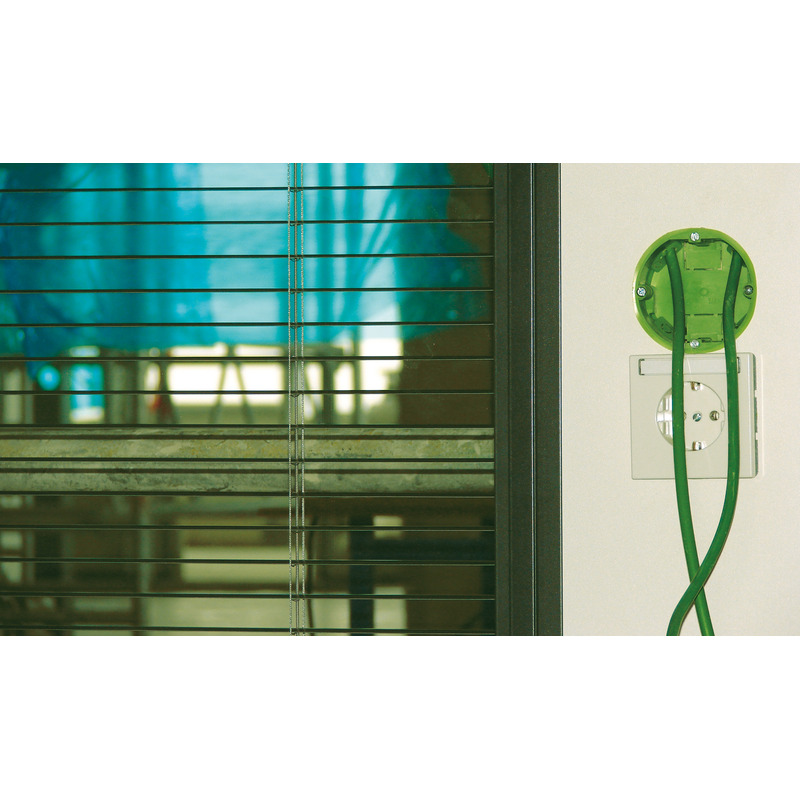

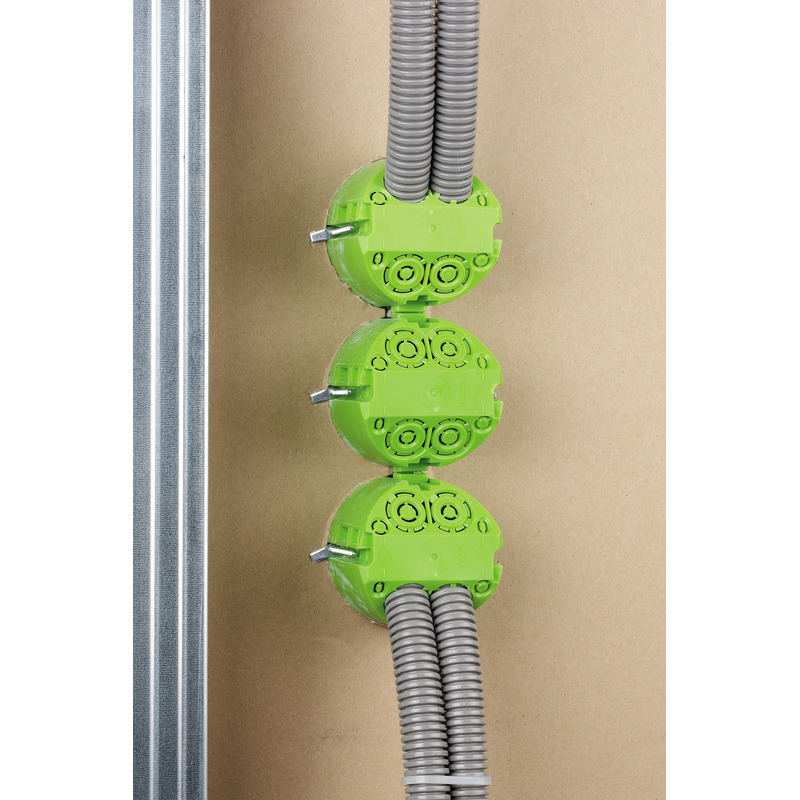

Cavity wall flat box, flame resistant, special box with small installation depth (35 mm), for thin walls with plate thicknesses from 1 to 20 mm, with patented combibridge, device screw spacing 60 mm
Drilled hole Ø 68 mm, 35 mm deep
This article is archived!
Technical Data
electrical characteristics
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| UL Type Rating | not specified |
Dimensions
| Width | 68 mm |
|---|---|
| Length | 68 mm |
| Height | 35 mm |
| Inner height | 33 mm |
| Weight | 0.02 kg |
Material characteristics
| Halogen free | no |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 850 °C (EN 60695-2-11) |
Ambient conditions
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
Sales Information
| EAN | 4013902170968 |
|---|---|
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 10 |
Material
| Base unit material | Plastic |
|---|---|
| Cover material | Polypropylene |
Certificates
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
Logistic data
Inner packaging
| EAN / GTIN | 4013902399512 |
|---|---|
| Width | 0.34 m |
| Weight | 0.23 kg |
| Height | 0.035 m |
| Quantity | 10 pieces |
| Depth | 0.135 m |
Outer packaging
| EAN / GTIN | 4013902345731 |
|---|---|
| Width | 0.437 m |
| Weight | 2.385 kg |
| Height | 0.212 m |
| Quantity | 100 pieces |
| Depth | 0.317 m |
Pallet
| EAN / GTIN | 4013902345748 |
|---|---|
| Width | 0.8 m |
| Weight | 75.7029 kg |
| Height | 1.85 m |
| Quantity | 2400 pieces |
| Depth | 1.2 m |
Piece
| EAN / GTIN | 4013902170968 |
|---|---|
| Width | 0.068 m |
| Weight | 0.02 kg |
| Height | 0.035 m |
| Quantity | 1 pieces |
| Depth | 0.068 m |
