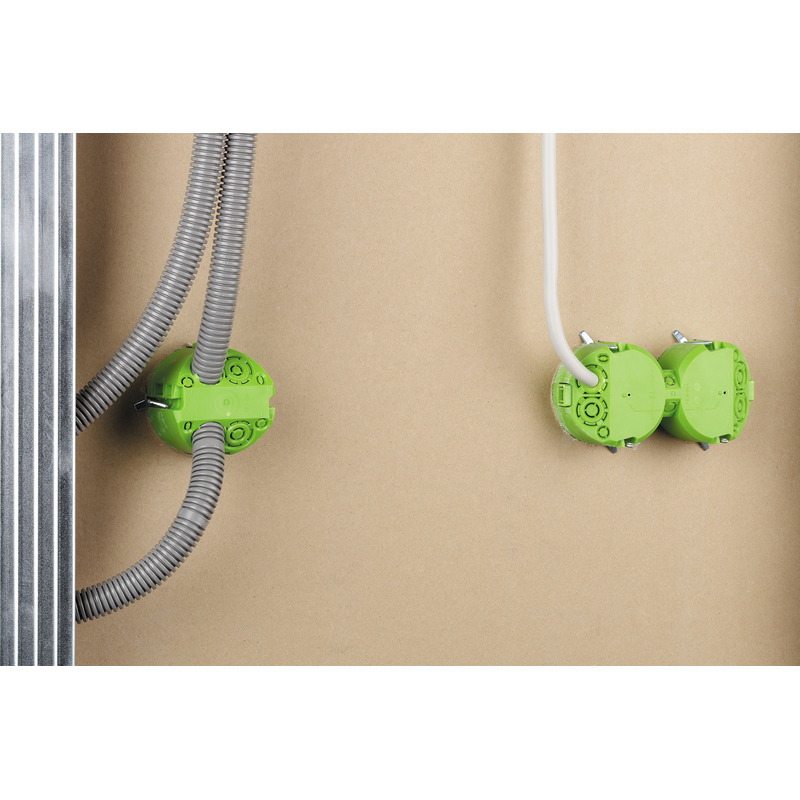

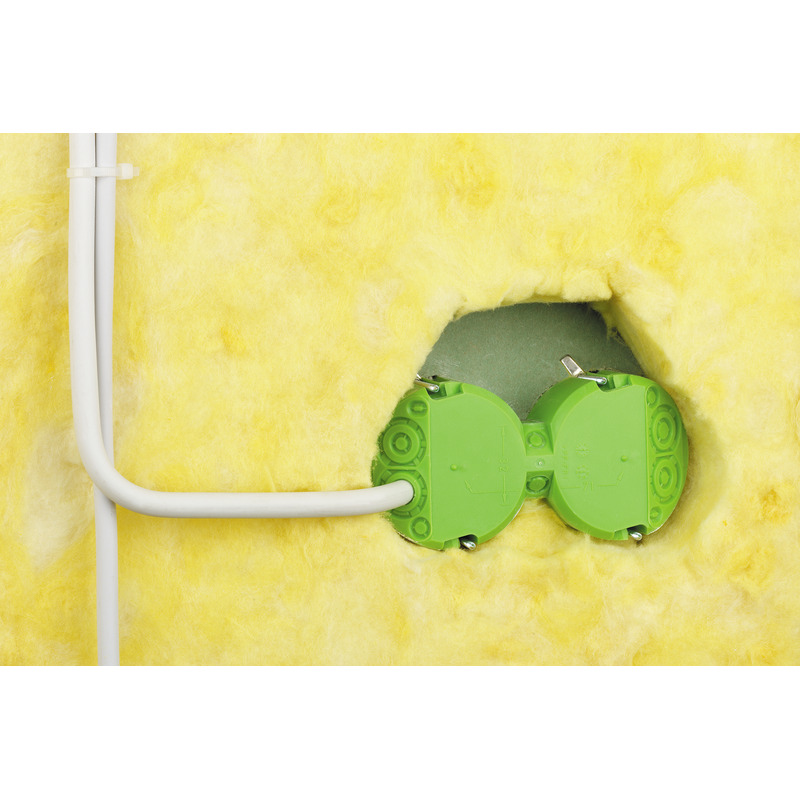

Cavity wall double socket, flame resistant, for plate thicknesses from 1 to 40 mm, with moulded patented combi jumpers and punching tool, device screw spacing 60 mm

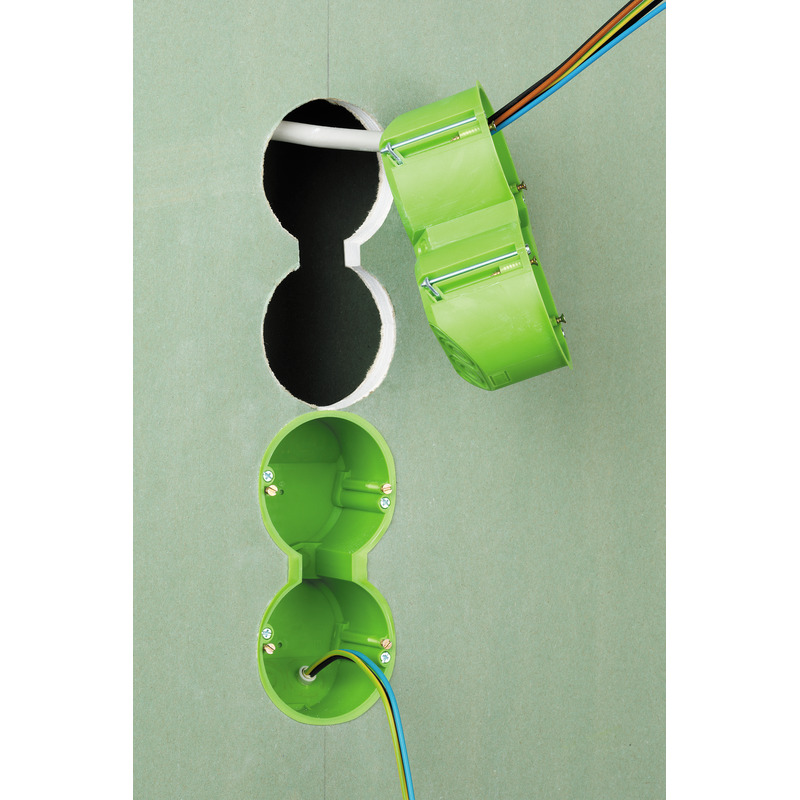

with closed membrane entries, drilled hole Ø 2 x 68 mm, 50 mm deep, Combination spacing 71 mm
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| UL Type Rating | not specified |
| Width | 68 mm |
|---|---|
| Length | 139 mm |
| Height | 50 mm |
| Weight | 0.025 kg |
| Halogen free | no |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 850 °C (EN 60695-2-11) |
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902170944 |
|---|---|
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 5 |
| Base unit material | Plastic |
|---|---|
| Cover material | Polypropylene |
| EAN / GTIN | 4013902399604 |
|---|---|
| Width | 0.34 m |
| Weight | 0.28 kg |
| Height | 0.05 m |
| Quantity | 5 pieces |
| Depth | 0.135 m |
| EAN / GTIN | 4013902345953 |
|---|---|
| Width | 0.367 m |
| Weight | 1.617 kg |
| Height | 0.292 m |
| Quantity | 50 pieces |
| Depth | 0.295 m |
| EAN / GTIN | 4013902345960 |
|---|---|
| Width | 0.8 m |
| Weight | 85.914 kg |
| Height | 1.79 m |
| Quantity | 2100 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902170944 |
|---|---|
| Width | 0.068 m |
| Weight | 0.025 kg |
| Height | 0.05 m |
| Quantity | 1 pieces |
| Depth | 0.139 m |
Tender text
(92335001.TXT 608 B)
Log in to download tender texts.
