Description

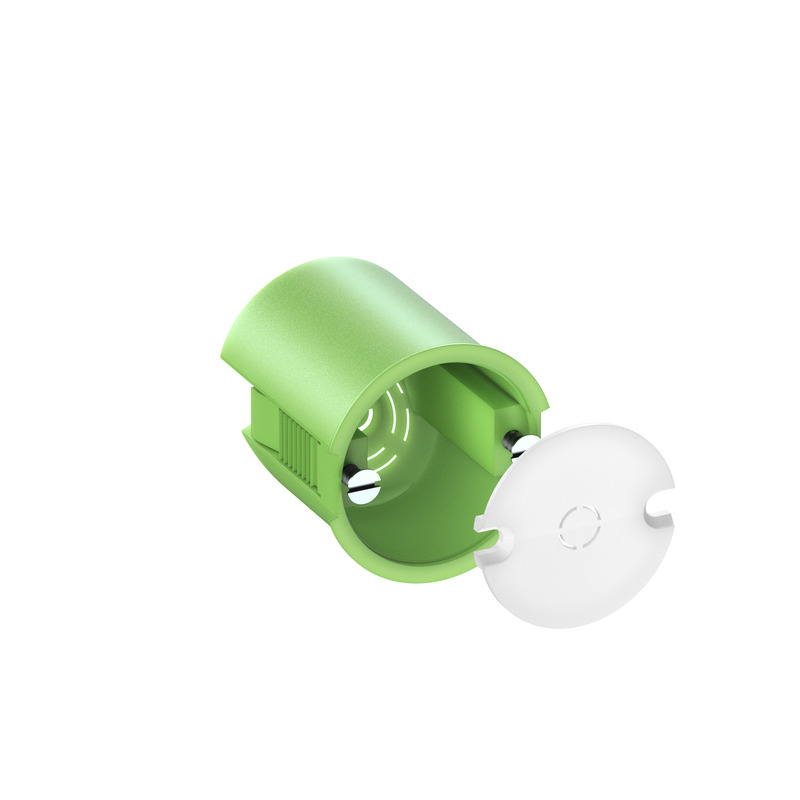

Cavity wall outlet socket, flame resistant, for lighting outlets acc. to VDE 0100-559, for plate thicknesses from 1 to 30 mm, screwing distance 27 mm, including white sealing cap
Drilled hole Ø 35 mm, 40 mm deep
This article is archived!
Technical Data
electrical characteristics
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| UL Type Rating | not specified |
Dimensions
| Width | 35 mm |
|---|---|
| Length | 35 mm |
| Height | 40 mm |
| Weight | 0.0105 kg |
Material characteristics
| Halogen free | no |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 850 °C (EN 60695-2-11) |
Ambient conditions
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
Sales Information
| EAN | 4013902170050 |
|---|---|
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 25 |
Material
| Base unit material | Plastic |
|---|---|
| Cover material | Polypropylene |
Logistic data
Inner packaging
| EAN / GTIN | 4013902399611 |
|---|---|
| Width | 0.115 m |
| Weight | 0.3333 kg |
| Height | 0.165 m |
| Quantity | 25 pieces |
| Depth | 0.083 m |
Outer packaging
| EAN / GTIN | 4013902345977 |
|---|---|
| Width | 0.357 m |
| Weight | 1.79 kg |
| Height | 0.127 m |
| Quantity | 150 pieces |
| Depth | 0.257 m |
Pallet
| EAN / GTIN | 4013902345984 |
|---|---|
| Width | 0.8 m |
| Weight | 211.32 kg |
| Height | 1.67 m |
| Quantity | 16200 pieces |
| Depth | 1.2 m |
Piece
| EAN / GTIN | 4013902170050 |
|---|---|
| Width | 0.035 m |
| Weight | 0.0105 kg |
| Height | 0.04 m |
| Quantity | 1 pieces |
| Depth | 0.035 m |
Downloads
Download Data Sheet
Planningdata
Tender text
Tender text
(92404001.TXT 555 B)
Log in to download tender texts.
Accessories
Installation screwES-10
Installation screw
ES-10
Productnumber 97910501
3.1 x 10 mm
Additional device screws for mounting built-in devices in cavity wall outlet sockets
Installation screwES-18
Installation screw
ES-18
Productnumber 97910601
3.1 x 18 mm
Additional device screws for mounting built-in devices in cavity wall outlet sockets
Installation screwES-25
Installation screw
ES-25
Productnumber 97910701
3.1 x 25 mm
Additional device screws for mounting built-in devices in cavity wall outlet sockets
