P 71 GVD 2xM25

P 71 GVD 2xM25

P 71 GVD 2xM25

Branch socket

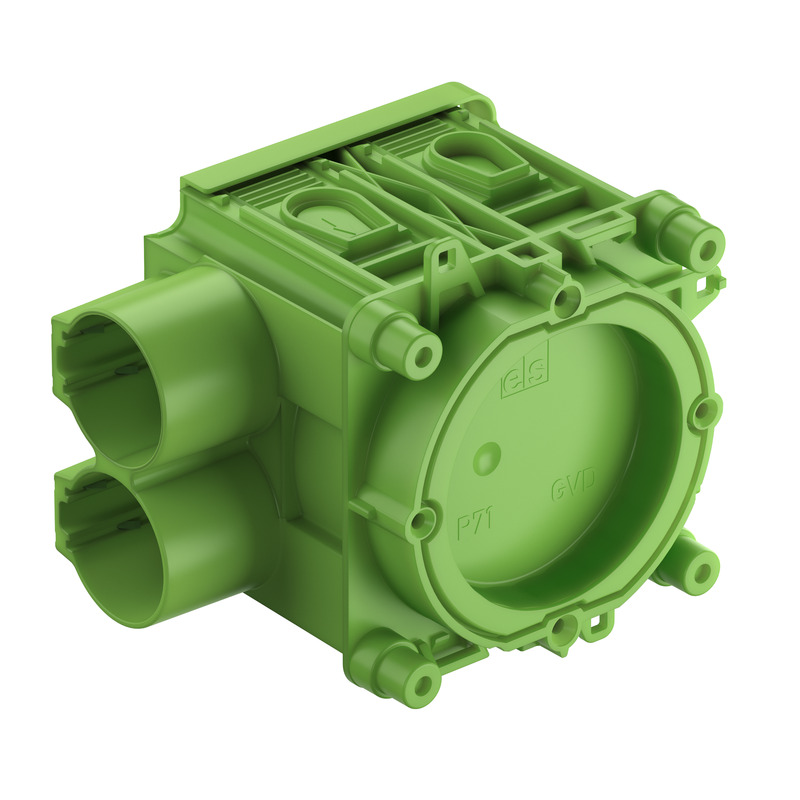

P 71 GVD 2xM25

Productnumber: 98406601 | Dimensions: 71 x 71 x 67,5 mm

Equipment junction box for horizontal factory finishing, 1-part, diameter 60 mm, with enlarged terminal compartment, 4 screw bosses with 60 mm screw spacing, combinable, with claw fasteners, combinable in normal 71 mm spacing, also suitable for opposing formwork, VDE certified in accordance to DIN EN 60670 (VDE 0606)

for 50mm HM-UNI magnetic clamp (97929901), magnet installation, conduit adapter and additional conduit adapter with Easy-Cut-Membran, sealing range M16 - M25, support spar compatible

Find wholesaler

electrical characteristics

Rated insulation voltage AC	400 V
Protection class	II
Type of protection	IP30
Suitable for	Concrete construction
UL Type Rating	not specified

Colours

Base unit colour	green
Cover colour	green

Dimensions

Width	71 mm
Length	71 mm
Height	67.5 mm
Diameter	60 mm

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	650 °C
Industry quality	no

mechanical properties

Type of fastening	magnet installation

Material

Base unit material	Polypropylene
Cover material	Polypropylene

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing	dwg (849 KB)
Dimensional drawing	dxf (4 MB)
Dimensional drawing	pdf (850 KB)

Certificate

CE Declaration DE/EN/FR	pdf (62 KB)
CE Declaration DE/EN/PL	pdf (74 KB)
UKCA Declaration EN	pdf (49 KB)
VDE Certificate (DIN EN 60670) DE/EN	pdf (627 KB)

Accessories

IBT Accessories - HM-UNI

IBT Accessories HM-UNI

Dimensions : 50 x 50 x 10 mm
Productnumber: 97929901

magnetic clamps, 50 mm Ø, extra strong, pull-off strength 300 +/- 20...

Fixings for steel formwork

Watchlist

Conduit adapter - RA 16

Conduit adapter RA 16

Dimensions : 39,7 x 40,2 x 28,5 mm
Productnumber: 98401601

M16 conduit adapter, suitable for P 71 GVD 2xM25 and P 71 DATA

Conduit adapter, for receiving conduits without tools, integrated conduit stoppers and strain relief...

Watchlist

Conduit adapter - RA 20

Conduit adapter RA 20

Dimensions : 39,7 x 40,2 x 28,5 mm
Productnumber: 98402001

M20 conduit adapter, suitable for P 71 GVD 2xM25 and P 71 DATA

Conduit adapter, for receiving conduits without tools, integrated conduit stoppers and strain relief...

Watchlist

Conduit adapter - RA 25

Conduit adapter RA 25

Dimensions : 39,7 x 40,2 x 28,5 mm
Productnumber: 98402501

M25 conduit adapter, suitable for P 71 GVD 2xM25 and P 71 DATA

Conduit adapter, for receiving conduits without tools, integrated conduit stoppers and strain relief...

Watchlist

CAD-Data

CAD-Data	Download 3D-CAD-Data

BIM-Data

BIM-Data	Download 3D-BIM-Data

Tender text

Log in to mySpelsberg to download tender texts. mySpelsberg Login

Similar products

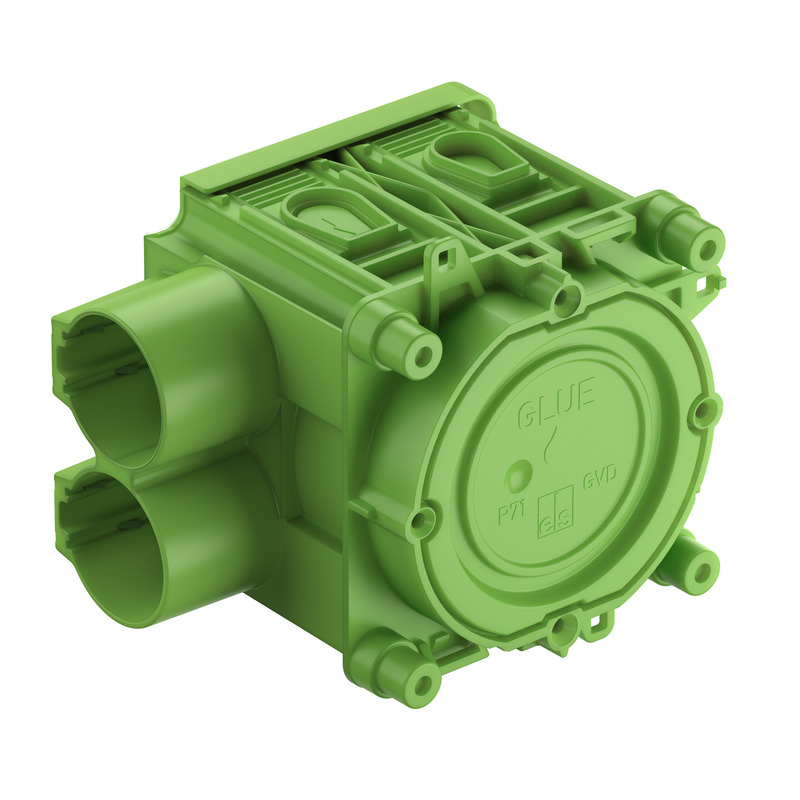

Branch socket - P 71 GVD-K 2xM25

Branch socket P 71 GVD-K 2xM25

Dimensions : 71 x 71 x 67,5 mm
Productnumber: 98476601

adhesive fixing, conduit adapter and additional conduit adapter with...

Equipment junction box for horizontal factory finishing, 1-part, diameter 60 mm, with enlarged...

Watchlist

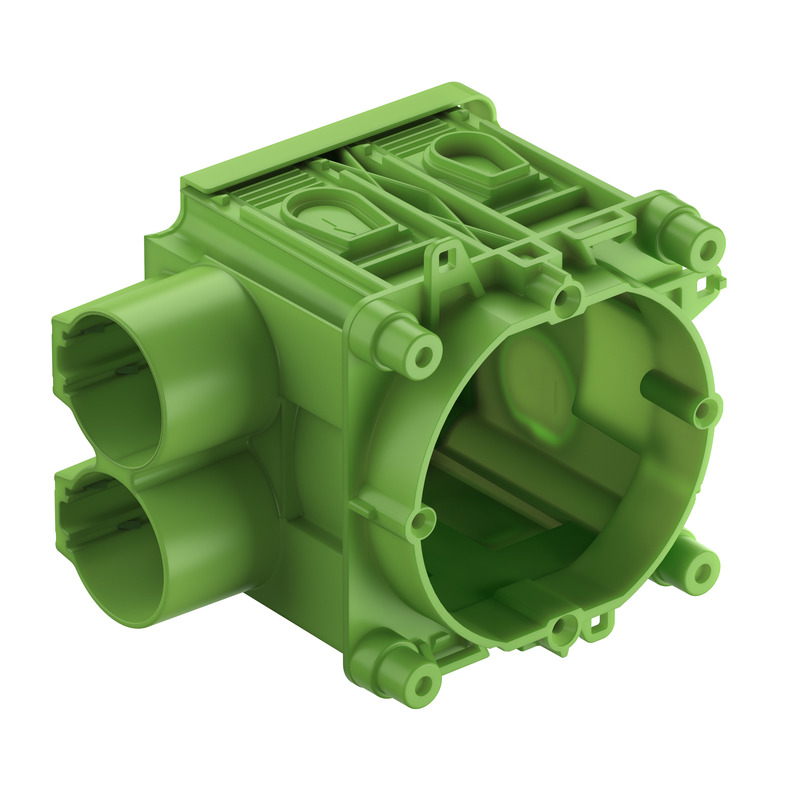

Branch socket - P 71 GVD-O 2xM25
