Description

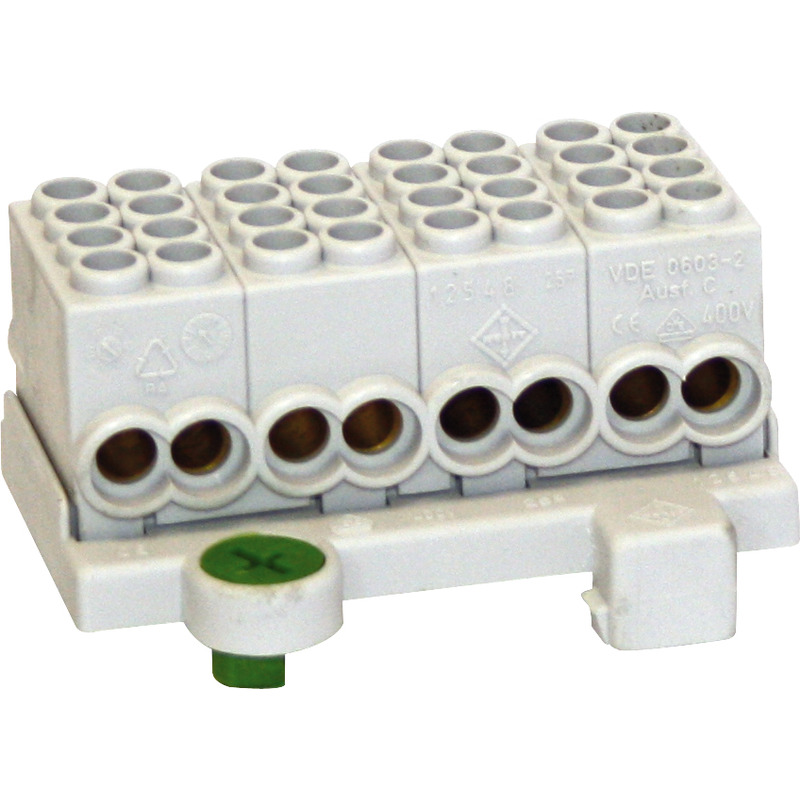

Main line T-piece terminal with 4 clamping points 1.5-25 mm² per pole
4-pole - finger proof
#69143301 | Dimensions: 50 x 50 x 100 mm
Main cable junction terminal
Technical Data
electrical characteristics
| Rated operating voltage AC | 400 V |
|---|---|
| Number of poles | 4 |
| Connection 1: Connection type | Screws |
| Connection 1: Clamping points per pole | 4 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (min) | 2.5 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (max) | 16 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 1.5 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 25 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 1.5 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 25 mm² |
| Connection 2: Connection type | Screws |
| Connection 2: Connectable conductor cross-section, fine-wire with ferrule (min) | 1.5 mm² |
| Connection 2: Connectable conductor cross-section, fine-wire with ferrule (max) | 10 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (min) | 1.5 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (max) | 16 mm² |
| Connection 2: Connectable conductor cross-section, stranded (min) | 1.5 mm² |
| Connection 2: Connectable conductor cross-section, stranded (max) | 16 mm² |
Dimensions
| Width | 50 mm |
|---|---|
| Length | 50 mm |
| Height | 100 mm |
| Weight | 0.243 kg |
Material characteristics
| Flammability class according with UL94 | V0 |
|---|---|
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
mechanical properties
| Connection 1: Tightening moment | 2.5 Nm |
|---|---|
| Connection 2: Tightening torque | 2.5 Nm |
Sales Information
| EAN | 4013902014224 |
|---|---|
| ETIM Class | EC000275 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 2 |
Logistic data
Piece
| EAN / GTIN | 4013902014224 |
|---|---|
| Width | 0.05 m |
| Weight | 0.243 kg |
| Height | 0.1 m |
| Quantity | 1 pieces |
| Depth | 0.05 m |
Outer packaging
| EAN / GTIN | 4013902343416 |
|---|---|
| Width | 0.357 m |
| Weight | 12.365 kg |
| Height | 0.127 m |
| Quantity | 20 pieces |
| Depth | 0.257 m |
Pallet
| EAN / GTIN | 4013902343423 |
|---|---|
| Width | 0.8 m |
| Weight | 1353.42 kg |
| Height | 1.67 m |
| Quantity | 5400 pieces |
| Depth | 1.2 m |
Inner packaging
| EAN / GTIN | 4013902705542 |
|---|---|
| Width | 0.055 m |
| Weight | 0.55 kg |
| Height | 0.2 m |
| Quantity | 2 pieces |
| Depth | 0.06 m |
Downloads
Download Data Sheet
Planningdata
Tender text
Tender text
(69143301.TXT 374 B)
Log in to download tender texts.
Similar products

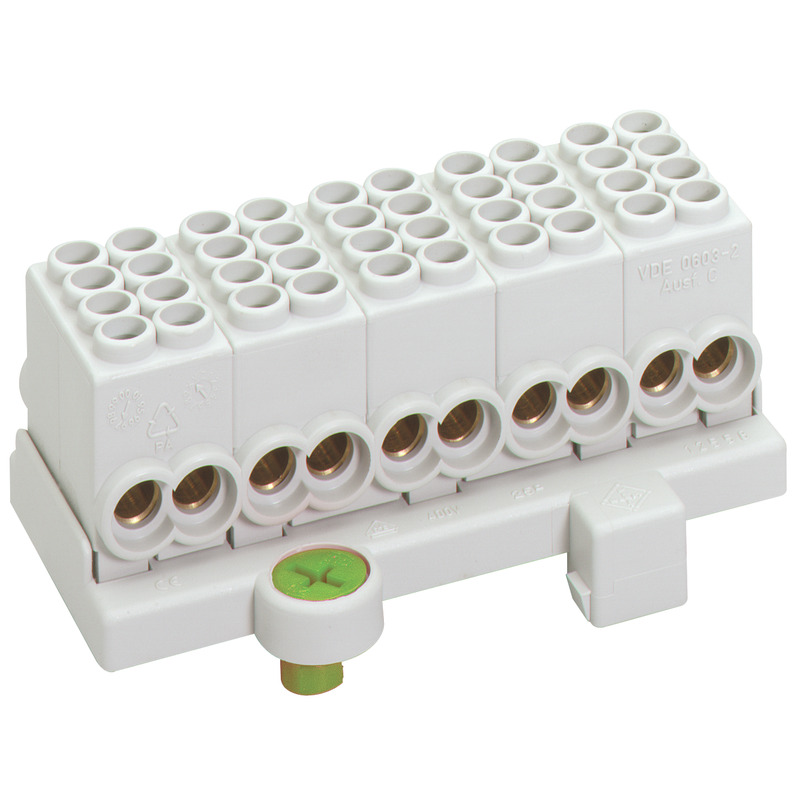

Main cable junction terminalHA 25-53
