#13801101 | Dimensions: 254 x 180 x 137 mm
Empty enclosure
Empty enclosure, protection class IP66, Polycarbonate, glass-fibre reinforced , certified by UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), Ui=690V AC, Ui=1000V DC, internal fixing points, for installations in industrial environments and protected outdoor areas

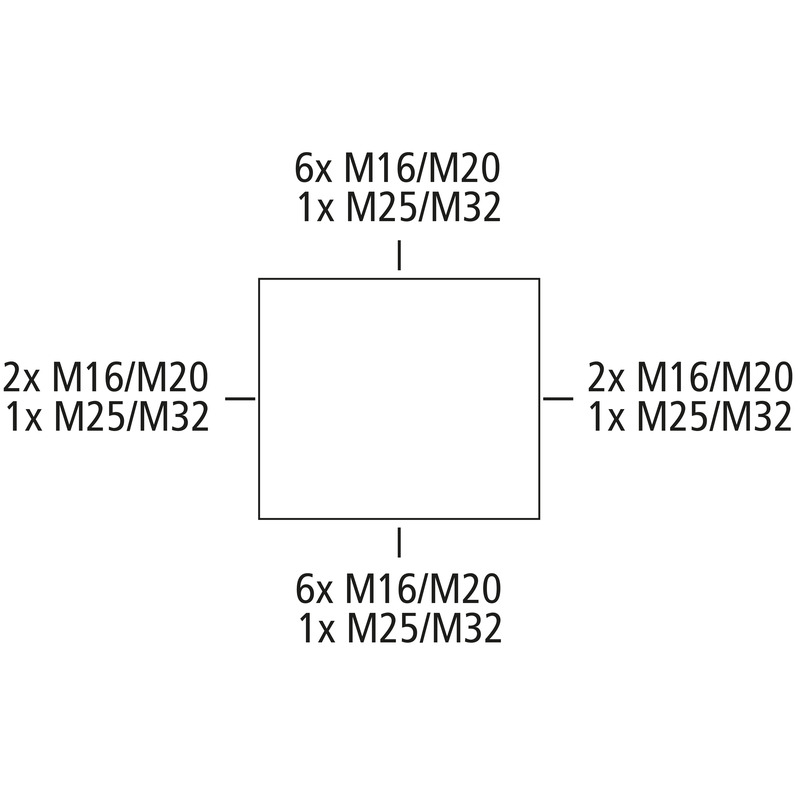

Box: Polycarbonate, glass-fibre reinforced , grey, Lid: Polycarbonate, transparent, knockouts, M16/M20/M25/M32, (20 side)
| Rated insulation voltage AC | 690 V |
|---|---|
| Rated insulation voltage DC | 1000 V |
| Protection class | II |
| Type of protection | IP66 |
| UL Type Rating | 4X, 12/12K |
| Base unit colour | grey |
|---|---|
| Cover colour | transparent |
| Width | 254 mm |
|---|---|
| Length | 180 mm |
| Height | 137 mm |
| Weight | 0.85 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK08 |
| Sealable | yes |
| Cover screw torque | 1.2 Nm |
| Stackable | yes |
| Type of top part | Cover |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 80 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
| Installation location | protected outdoor areas |
| EAN | 4013902901616 |
|---|---|
| EAN | 4013902901616 |
| ETIM Class | EC000261 |
| ETIM Class | EC000261 |
| Custom tariff number | 85389099 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
| Minimum order quantity | 1 |
| Base unit material | Polycarbonate, glass-fibre reinforced |
|---|---|
| Base unit material | Polycarbonate, glass-fibre reinforced |
| Cover material | Polycarbonate |
| Cover material | Polycarbonate |
| Sealing material | Polyurethane |
| Sealing material | Polyurethane |
| Cover screw material | Polyamide, glass-fibre reinforced |
| Cover screw material | Polyamide, glass-fibre reinforced |
| Test mark | UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07) |
|---|---|
| Test mark | UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07) |
| Test mark | DLG (Ammonia resistance) |
| Test mark | DLG (Ammonia resistance) |
| Test mark | DNV (Class: Ships and Offshore Installations) |
| Test mark | DNV (Class: Ships and Offshore Installations) |
| EAN / GTIN | 4013902321872 |
|---|---|
| Width | 0.372 m |
| Weight | 3.79 kg |
| Height | 0.372 m |
| Quantity | 4 pieces |
| Depth | 0.262 m |
| EAN / GTIN | 4013902321872 |
| Width | 0.372 m |
| Weight | 3.79 kg |
| Height | 0.372 m |
| Quantity | 4 pieces |
| Depth | 0.262 m |
| EAN / GTIN | 4013902321865 |
|---|---|
| Width | 0.8 m |
| Weight | 290.88 kg |
| Height | 1.65 m |
| Quantity | 144 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902321865 |
| Width | 0.8 m |
| Weight | 290.88 kg |
| Height | 1.65 m |
| Quantity | 144 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902901616 |
|---|---|
| Width | 0.254 m |
| Weight | 0.85 kg |
| Height | 0.137 m |
| Quantity | 1 pieces |
| Depth | 0.18 m |
| EAN / GTIN | 4013902901616 |
| Width | 0.254 m |
| Weight | 0.85 kg |
| Height | 0.137 m |
| Quantity | 1 pieces |
| Depth | 0.18 m |
