new

#81000001 | Dimensions: 152 x 152 x 80 mm

Junction box

Abox 100-L/sw

Junction box, protection class IP66, nominal cross-section 10 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes,...

Color variants

Login to see price

Remember product

Description

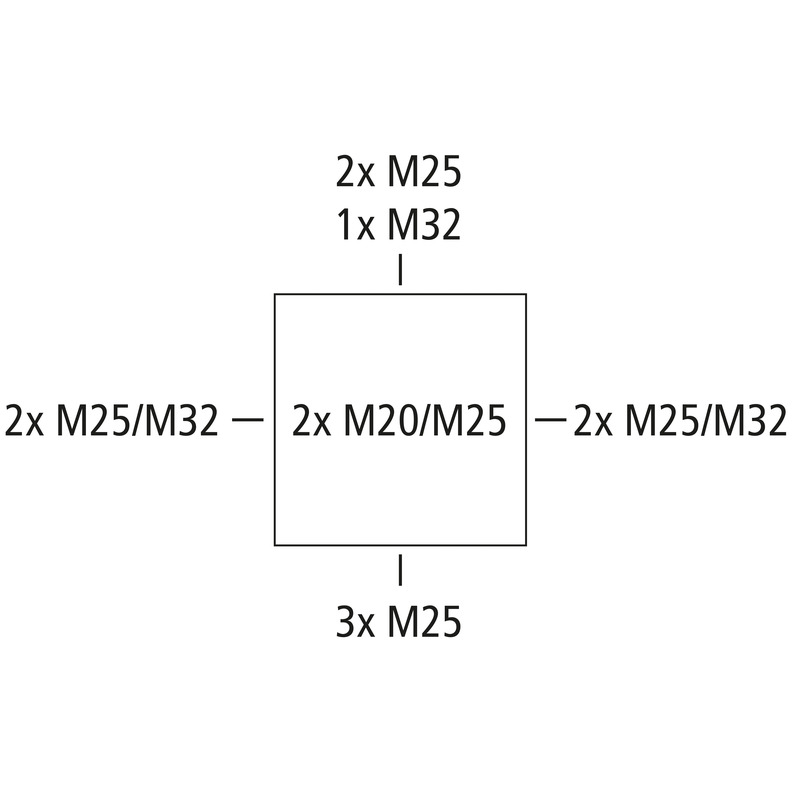

Junction box, protection class IP66, nominal cross-section 10 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M20/M25/M32, sealing range 8 - 28 mm, (2 rear, 10 side), internal fixing points, for standard indoor and protected outdoor installations

black, U_i=1000 V AC, without terminals

Technical Data

electrical characteristics

Rated insulation voltage AC	1000 V
Rated insulation voltage DC	1000 V
Max. conductor cross section	10 mm²
Protection class	II
Type of protection	IP66
Terminal type	none

Colours

Base unit colour	black
Cover colour	black

Dimensions

Width	152 mm
Length	152 mm
Height	80 mm
Inner length	139 mm
Inner width	140 mm
Inner height	64 mm
Weight	0.2685 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	750 °C (EN 60695-2-11)

Max. number of terminals per cross section acc. to DIN VDE 0606-1

max. amount of terminals at 1,5²	15
max. amount of terminals at 2,5²	12
max. amount of terminals at 4²	10
max. amount of terminals at 6²	8
max. amount of terminals at 10²	5

Max. number of wires per cross section acc. to DIN VDE 0606-1

max. amount of wires at 1,5²	45
max. amount of wires at 2,5²	36
max. amount of wires at 4²	30
max. amount of wires at 10²	24
max. amount of wires at 6²	15

mechanical properties

for sealing range min	8 mm
for sealing range max	28 mm
Impact strength	IK07
Sealable	yes
Cover screw torque	1.2 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	55 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902660667
ETIM Class	EC002600
Custom tariff number	85389099
Minimum order quantity	1

Material

Base unit material	Polypropylene
Cover material	Polypropylene
Entry material	Thermoplastic elastomer
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel 1.4567 (V2A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)

Logistic data

Piece

EAN / GTIN	4013902660667
Width	0.152 m
Weight	0.2685 kg
Height	0.08 m
Quantity	1 pieces
Depth	0.152 m

Outer packaging

EAN / GTIN	4013902660674
Width	0.35 m
Weight	5.778 kg
Height	0.425 m
Quantity	20 pieces
Depth	0.305 m

Pallet

EAN / GTIN	4013902660681
Width	0.8 m
Weight	91.336 kg
Height	0.982 m
Quantity	240 pieces
Depth	1.2 m
