#81642001 | Dimensions: 182 x 182 x 90 mm

Junction box

Abox 160-16²

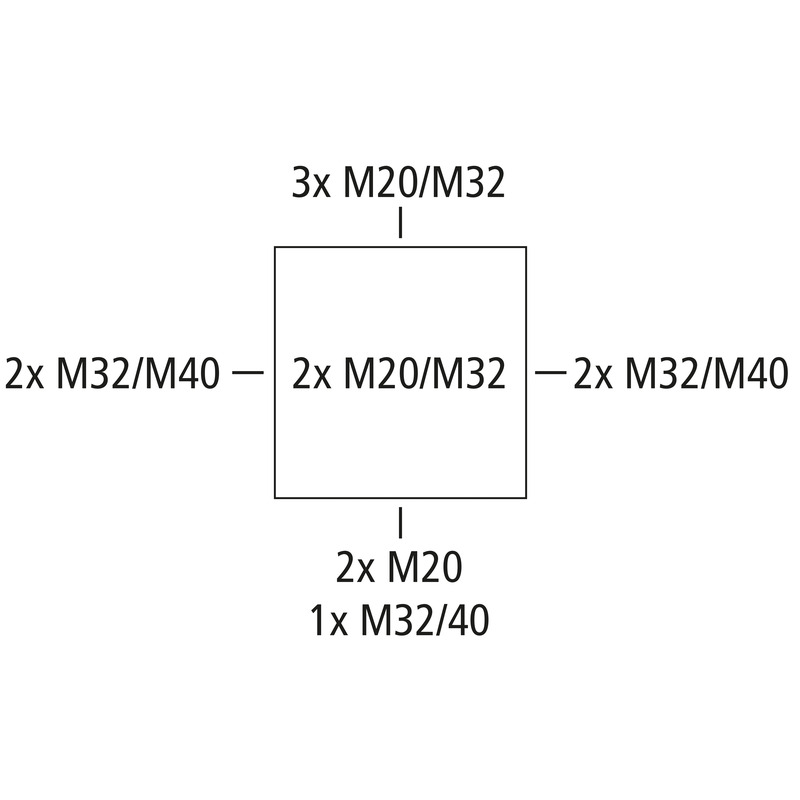

Junction box, protection class IP55/IP66, nominal cross-section 16 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), knockouts, M20/M32/M40, (2 rear, 10...

Customize

Login to see price

Remember product

Description

Junction box, protection class IP55/IP66, nominal cross-section 16 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), knockouts, M20/M32/M40, (2 rear, 10 side), internal fixing points, for standard indoor and protected outdoor installations

grey, U_i=690 V AC, I_n=76 A, with raised screw terminal block, 5-pole- 16 mm², clampable cross-sections per pole: 12 x 4 mm², 8 x 6 mm², 4 x 10 mm², 4 x 16 mm² rigid Cu/flexible with wire-end ferrule

Accessories supplied:
4 attachment bushes IP55 M40 sealing range 17 - 30 mm, 1 sealing plug IP55 M40, cover retainer

Technical Data

electrical characteristics

Rated insulation voltage AC	690 V
Rated insulation voltage DC	690 V
Min. conductor cross section	4 mm²
Max. conductor cross section	16 mm²
Protection class	II
Type of protection	IP55/IP66
Rated current	76 A
Terminal type	Screw terminal
Number of poles	5

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	182 mm
Length	182 mm
Height	90 mm
Inner length	167 mm
Inner width	167 mm
Inner height	69 mm
Weight	0.829 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	750 °C (EN 60695-2-11)

mechanical properties

Impact strength	IK07
Sealable	yes
Cover screw torque	1.5 Nm
Type of fastening	Wall/ceiling mounting
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	55 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902660360
ETIM Class	EC002600
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Thermoplastic elastomer
Cover screw material	Stainless steel 1.4567 (V2A)

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
Test mark	DLG (Ammonia resistance)

Logistic data

Outer packaging

EAN / GTIN	4013902660377
Width	0.471 m
Weight	8.74 kg
Height	0.197 m
Quantity	10 pieces
Depth	0.371 m

Pallet

EAN / GTIN	4013902660384
Width	0.8 m
Weight	231.76 kg
Height	1.135 m
Quantity	240 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902660360
Width	0.182 m
Weight	0.829 kg
Height	0.09 m
Quantity	1 pieces
Depth	0.182 m

Downloads

Planningdata

Tender text

CAD-Data

Product videos
