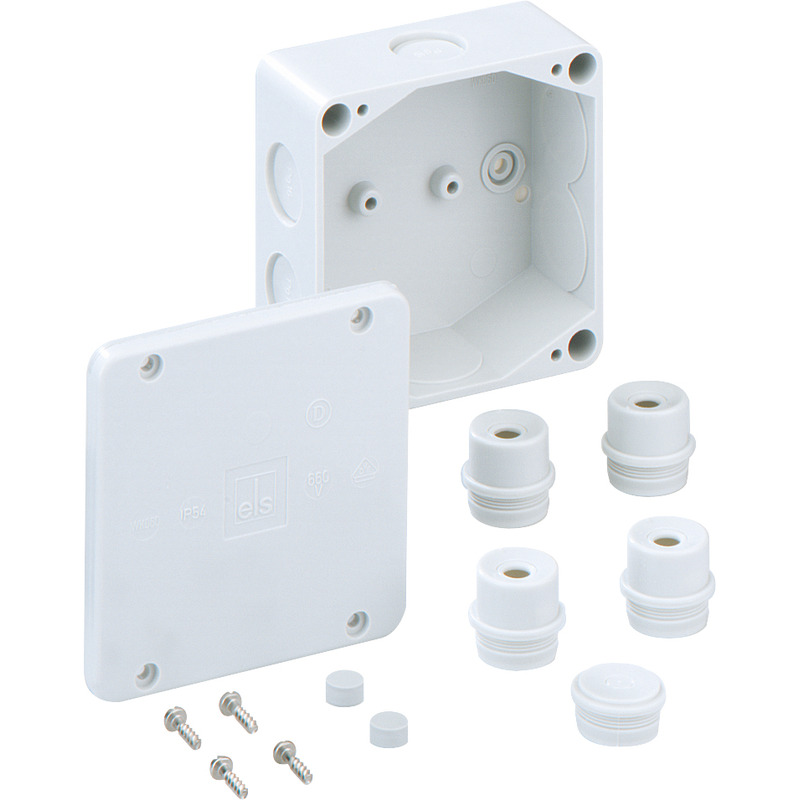

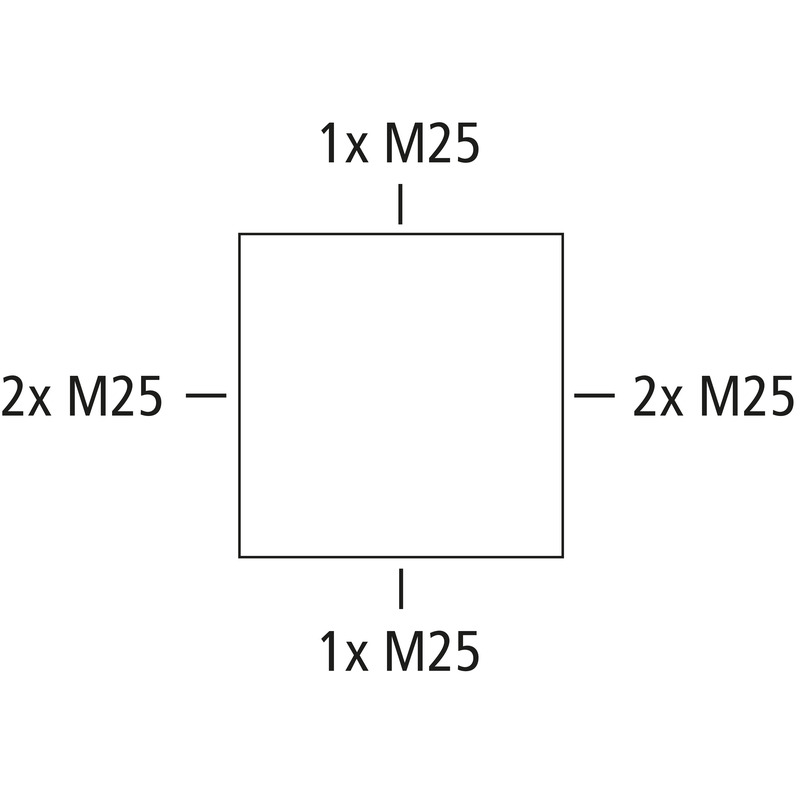

Junction box, protection class IP54, nominal cross-section 6 mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), knockouts, M25, (7 side), internal fixing points, for standard indoor installations
grey, without terminals
Accessories supplied:
4 Attachment bushes IP54 M25 sealing range 9 - 18,5 mm, 1 sealing plugs M25
| Rated insulation voltage AC | 690 V |
|---|---|
| Max. conductor cross section | 6 mm² |
| Protection class | II |
| Type of protection | IP54 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 100 mm |
|---|---|
| Length | 100 mm |
| Height | 50 mm |
| Weight | 0.232 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V0 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK05 |
| Sealable | no |
| Cover screw torque | 1.8 Nm |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902040223 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
| Base unit material | Duroplast |
|---|---|
| Cover material | Duroplast |
| Sealing material | Thermoplastic elastomer |
| Cover screw material | Steel |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902312573 |
|---|---|
| Width | 0.28 m |
| Weight | 7.385 kg |
| Height | 0.235 m |
| Quantity | 30 pieces |
| Depth | 0.32 m |
| EAN / GTIN | 4013902312580 |
|---|---|
| Width | 0.8 m |
| Weight | 431.56 kg |
| Height | 1.82 m |
| Quantity | 1680 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902040223 |
|---|---|
| Width | 0.1 m |
| Weight | 0.232 kg |
| Height | 0.05 m |
| Quantity | 1 pieces |
| Depth | 0.1 m |
Tender text
(40690601.TXT 822 B)
Log in to download tender texts.
Cable gland
KVR M25-MGM
Productnumber 22742501
Sealing range 9 - 16 mm, Thread length 11 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Terminal block
WK 060 KLS-6²
Productnumber 46050601
5x6 mm², for K15, K2-, K3-EK boxes
Connecting terminal, Ui=400V / 690V

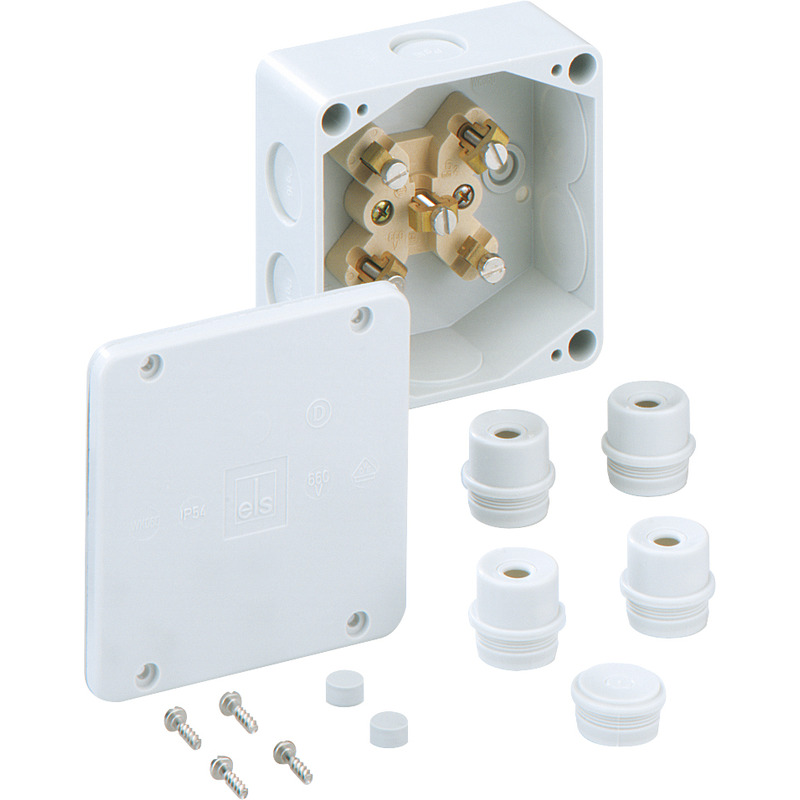

Junction box
