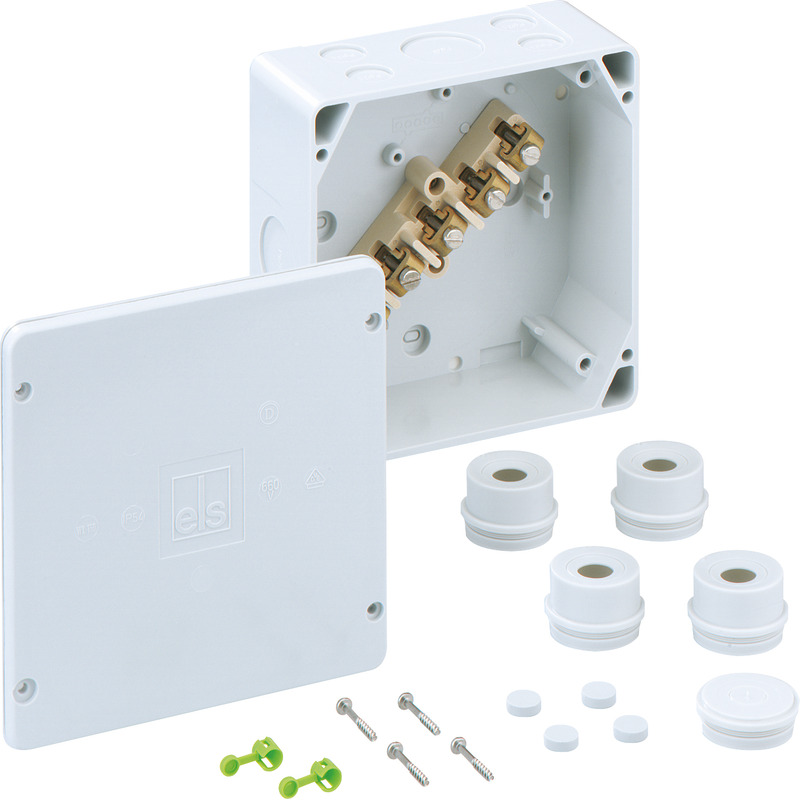

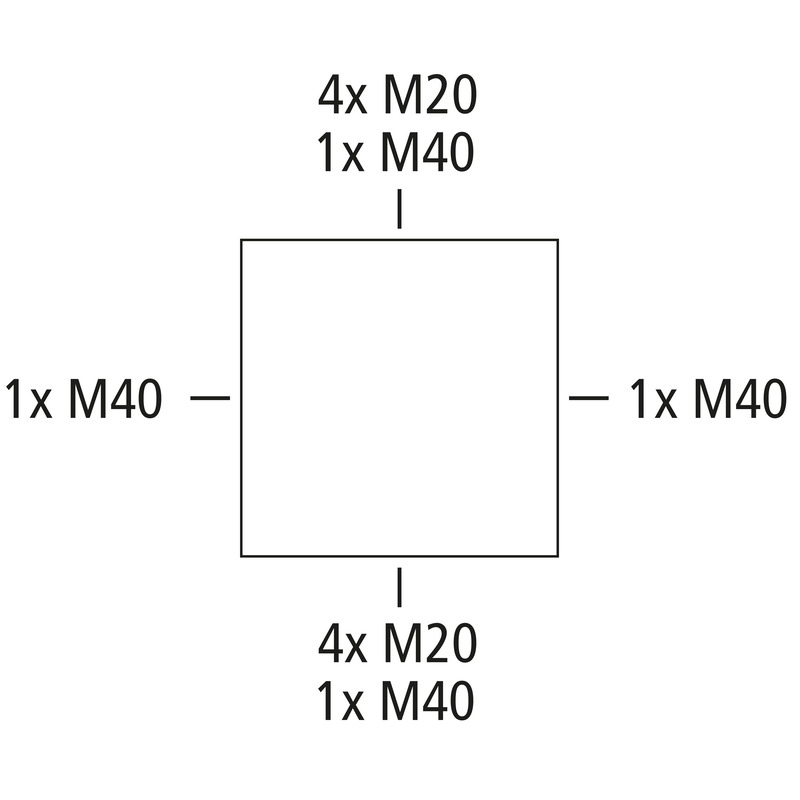

Junction box, protection class IP54, nominal cross-section 16 mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), knockouts, M20/M40, (12 side), internal fixing points, for standard indoor installations
grey, with screw terminal, 5-pole - 16 mm² (5 x 10² / 3 x 16²)
Accessories supplied:
4 Attachment bushes IP54 M40 sealing range 17 - 30 mm, 1 sealing plugs M40, 1 Sealing kit
| Rated insulation voltage AC | 690 V |
|---|---|
| Max. conductor cross section | 16 mm² |
| Protection class | II |
| Type of protection | IP54 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 165 mm |
|---|---|
| Length | 165 mm |
| Height | 76 mm |
| Weight | 0.861 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V0 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK05 |
| Sealable | no |
| Cover screw torque | 1.8 Nm |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902040292 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85369095 |
| Minimum order quantity | 1 |
| Base unit material | Duroplast |
|---|---|
| Cover material | Duroplast |
| Sealing material | Thermoplastic elastomer |
| Cover screw material | Steel |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902312672 |
|---|---|
| Width | 0.372 m |
| Weight | 10.879 kg |
| Height | 0.372 m |
| Quantity | 12 pieces |
| Depth | 0.262 m |
| EAN / GTIN | 4013902312689 |
|---|---|
| Width | 0.8 m |
| Weight | 409.644 kg |
| Height | 1.65 m |
| Quantity | 432 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902040292 |
|---|---|
| Width | 0.165 m |
| Weight | 0.861 kg |
| Height | 0.076 m |
| Quantity | 1 pieces |
| Depth | 0.165 m |
Tender text
(41641201.TXT 888 B)
Log in to download tender texts.
Terminal block
WK 160 KLS-16²
Productnumber 46051601
5x16 mm², for K3-, K4-EK boxes
Connecting terminal, Ui=400V / 690V

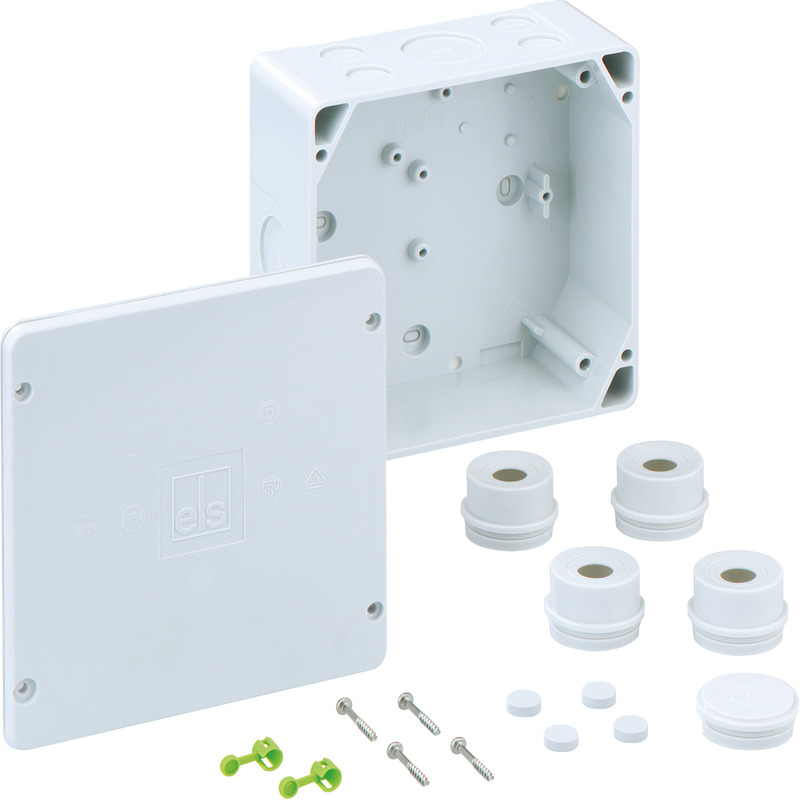

Junction box
