Description
Connecting terminal, Ui=400V / 690V
5x16 mm², for K3-, K4-EK boxes
This article is archived!
Technical Data
electrical characteristics
| Rated operating voltage AC | 690 V |
|---|---|
| Number of poles | 5 |
| shockproof | No |
| Connection 1: Connection type | Screws |
| Connection 1: Clamping points per pole | 1 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 6 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 16 mm² |
Dimensions
| Width | 38 mm |
|---|---|
| Length | 120 mm |
| Height | 32 mm |
| Weight | 0.163 kg |
Material characteristics
| Flammability class according with UL94 | V0 |
|---|---|
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
Sales Information
| EAN | 4013902852376 |
|---|---|
| ETIM Class | EC001284 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 1 |
Material
| Insulating body material | Duroplast |
|---|
Logistic data
Outer packaging
| EAN / GTIN | 4013902340590 |
|---|---|
| Width | 0.357 m |
| Weight | 9.409 kg |
| Height | 0.247 m |
| Quantity | 56 pieces |
| Depth | 0.26 m |
Pallet
| EAN / GTIN | 4013902340606 |
|---|---|
| Width | 0.8 m |
| Weight | 526.086 kg |
| Height | 1.87 m |
| Quantity | 3024 pieces |
| Depth | 1.2 m |
Piece
| EAN / GTIN | 4013902852376 |
|---|---|
| Width | 0.038 m |
| Weight | 0.163 kg |
| Height | 0.032 m |
| Quantity | 1 pieces |
| Depth | 0.12 m |
Downloads
Download Data Sheet
Planningdata
Tender text
Tender text
(46051601.TXT 342 B)
Log in to download tender texts.
Similar products
Terminal blockWK 060 KLS-6²
Terminal block
WK 060 KLS-6²
Productnumber 46050601
5x6 mm², for K15, K2-, K3-EK boxes
Connecting terminal, Ui=400V / 690V
Terminal blockWK 100 KLS-10²
Terminal block
WK 100 KLS-10²
Productnumber 46051001
5x10 mm², for K15, K3-, K4-EK boxes
Connecting terminal, Ui=400V / 690V
Terminal blockWK 250 KLS-25²
Terminal block
WK 250 KLS-25²
Productnumber 46053501
5x25 mm², for K4-EK boxes
Connecting terminal, Ui=400V / 690V

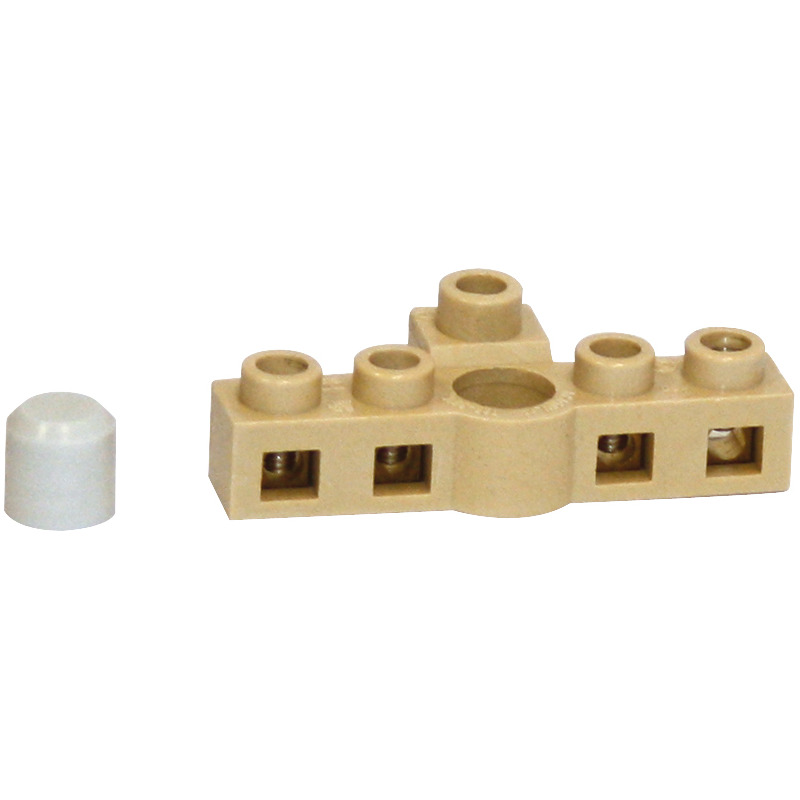

Terminal blockWK 007 KLS-2,5²
