This article is archived!

#73152401 | Dimensions: 250 x 570 x 122 mm

Socket outlet combination

STV 1224-AFDD

Socket outlet combination, protection class IP44, additional protection from AFDD (fire protection switch), ready for connection, according to EN 61439-3, high mechanical strength,...

Login to see price

Description

Socket outlet combination, protection class IP44, additional protection from AFDD (fire protection switch), ready for connection, according to EN 61439-3, high mechanical strength, temperature-resistant, can be combined

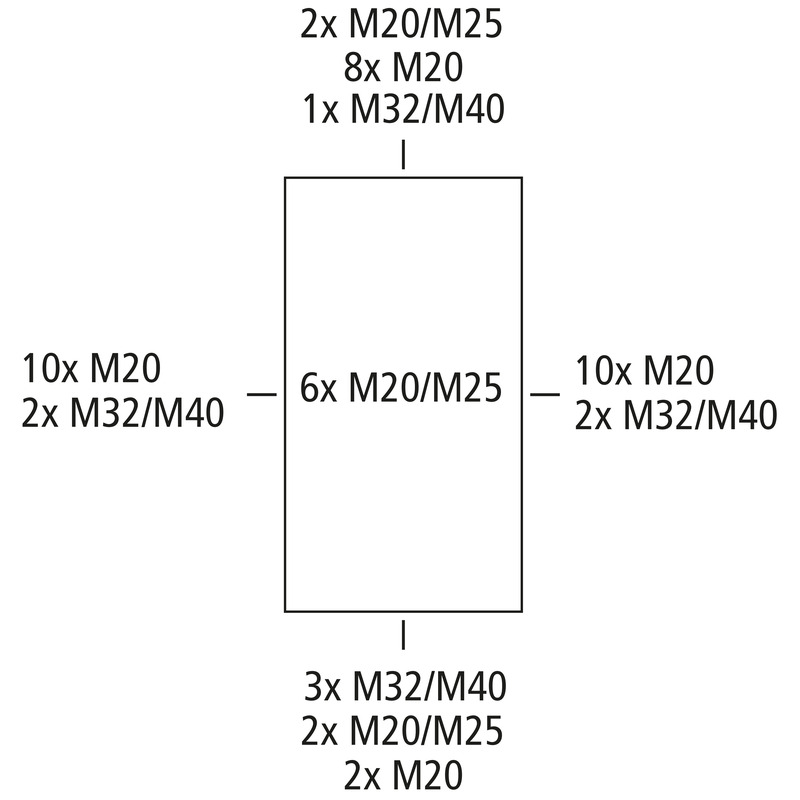

Cable insertions:
Top: Pre-embossing 8 x M20, 2 x M20/25, 1 x M32/40
Bottom: Pre-embossing 2 x M20, 2 x M20/25, 3 x M32/40
Left: Pre-embossing 10 x M20
Right: Pre-embossing 10 x M20
Rear: Pre-embossing 6 x M20/25

equipped with:

2 x AFDD with miniature circuit breaker B16A, 1+N-pole
1 x Miniature circuit breaker C 16 A, 3p
1 x Miniature circuit breaker C 32 A, 3p
1 x Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A
4 x SCHUKO^® plug socket (on front), 230V
1 x CEE plug socket outlet (on front) 16A, 400V
1 x CEE plug socket outlet (on front) 32A, 400V

Accessories supplied:
Attachment bushes: 2x M25, 2x M32, sealing plugs, masking and labelling strips

Technical Data

Built-in devices

Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A	1
AFDD with miniature circuit breaker B16A, 1+N-pole	2
Miniature circuit breaker C 16 A, 3p	1
Miniature circuit breaker C 32 A, 3p	1
SCHUKO^® plug socket (on front), 230V	4
CEE plug socket outlet (on front) 16A, 400V	1
CEE plug socket outlet (on front) 32A, 400V	1

electrical characteristics

Rated insulation voltage AC	400 V
Protection class	II
Type of protection	IP44
Number of N-potentials	1
Number of rows	2
Number of modules per row	12
with N terminal	yes
with PE terminal	yes

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	250 mm
Length	570 mm
Height	122 mm
Inner height	95 mm
Weight	5.145 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability	850 °C (EN 60695-2-11)

mechanical properties

Type of fastening	Wall mounting
Impact strength	IK08

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902607570
ETIM Class	EC000379
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polycarbonate, glass-fibre reinforced
Cover material	Polycarbonate, glass-fibre reinforced
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced
Hinged window material	Polycarbonate

Logistic data

Outer packaging

EAN / GTIN	4013902607570
Width	0.79 m
Weight	6.395 kg
Height	0.29 m
Quantity	1 pieces
Depth	0.39 m

Pallet

EAN / GTIN	4013902607587
Width	0.8 m
Weight	137.11 kg
Height	1.89 m
Quantity	18 pieces
Depth	1.2 m
