Description

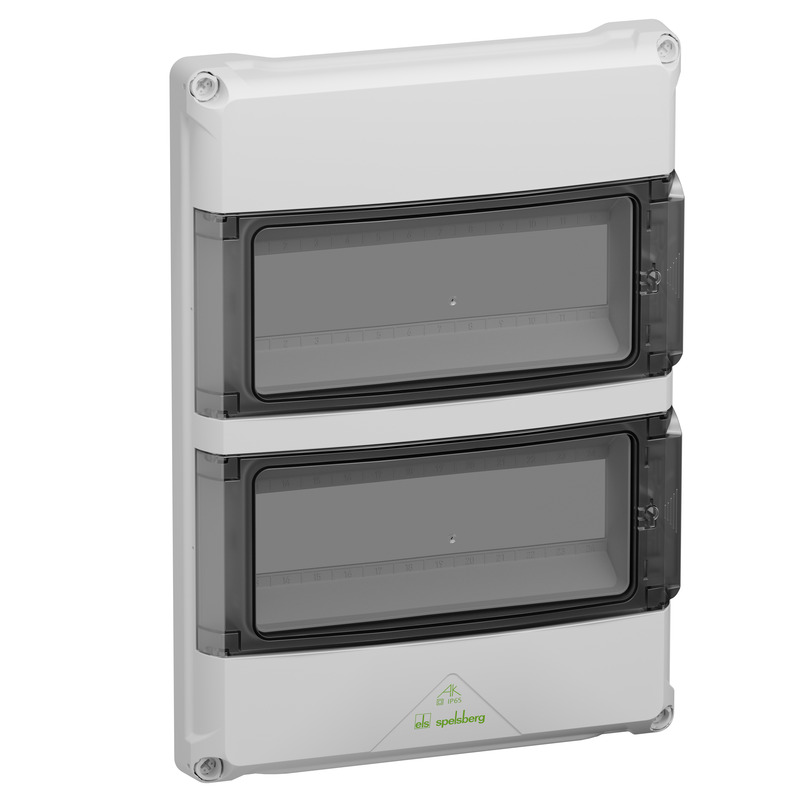

AK Compact upper part as a spare part, including hinged window and cover screws, fully assembled
for AK 24 (since 10/2025), dimensions 290x407mm
#73481001 | Dimensions: 290 x 407 x 52 mm
Upper part
Technical Data
Colours
| Cover colour | grey |
|---|---|
| Hinged window colour | Transparent |
Dimensions
| Width | 290 mm |
|---|---|
| Length | 407 mm |
| Height | 52 mm |
| Weight | 0.84 kg |
Material characteristics
| Halogen free | yes |
|---|
Sales Information
| EAN | 4013902705009 |
|---|---|
| ETIM Class | EC002287 |
| Custom tariff number | 85369095 |
| Minimum order quantity | 1 |
Material
| Cover material | Polypropylene |
|---|---|
| Cover screw material | Polyamide, glass-fibre reinforced |
| Hinged window material | Polycarbonate |
Logistic data
Outer packaging
| EAN / GTIN | 4013902705009 |
|---|---|
| Width | 0.407 m |
| Weight | 1.077 kg |
| Height | 0.129 m |
| Quantity | 1 pieces |
| Depth | 0.299 m |
Pallet
| EAN / GTIN | 4013902705016 |
|---|---|
| Width | 0.8 m |
| Weight | 99.544 kg |
| Height | 1.872 m |
| Quantity | 72 pieces |
| Depth | 1.2 m |
Downloads
Download Data Sheet
Planningdata
Tender text
Tender text
(73481001.TXT 409 B)
Log in to download tender texts.
Similar products

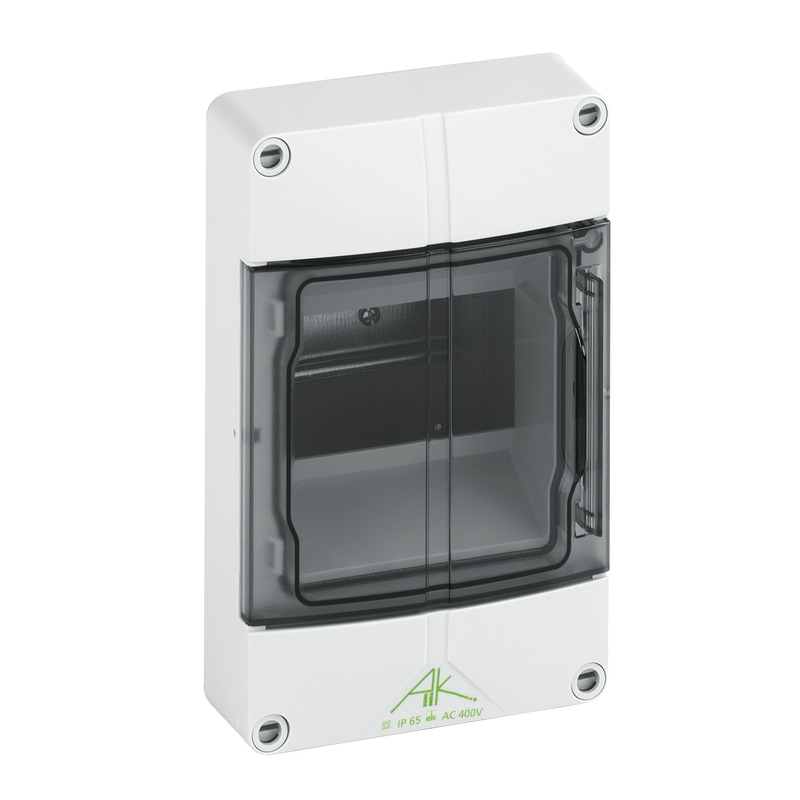

Upper partAK 05 OT
Upper part
AK 05 OT
Productnumber 73520501
for AK 05
AK Compact upper part as a spare part, including hinged window and cover screws, fully assembled
Upper partAK 03 OT
Upper part
AK 03 OT
Productnumber 73520301
for AK 03
AK Compact upper part as a spare part, including hinged window and cover screws, fully assembled
Upper partAK 09 OT
Upper part
AK 09 OT
Productnumber 73520901
for AK 09
AK Compact upper part as a spare part, including hinged window and cover screws, fully assembled

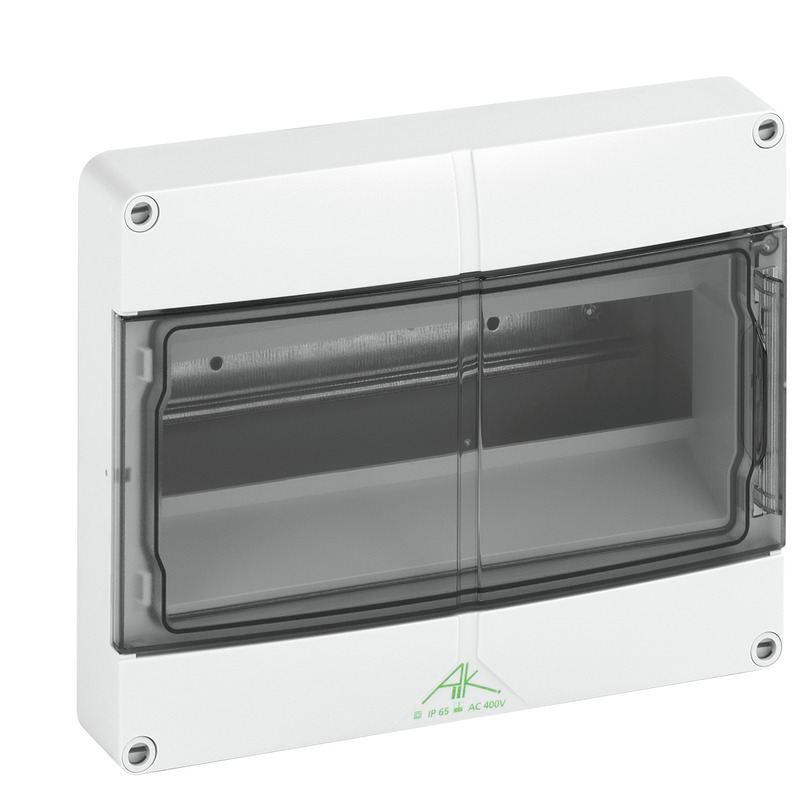

Upper partAK 12 OT
Upper part
AK 12 OT
Productnumber 73521201
for AK 12
AK Compact upper part as a spare part, including hinged window and cover screws, fully assembled

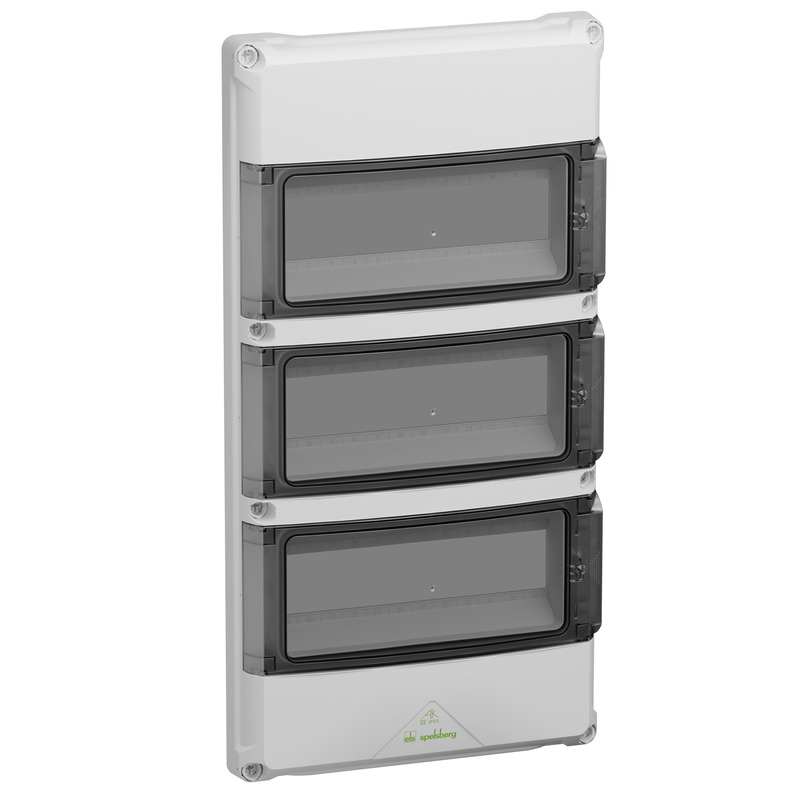

Upper partAK 36 OT
