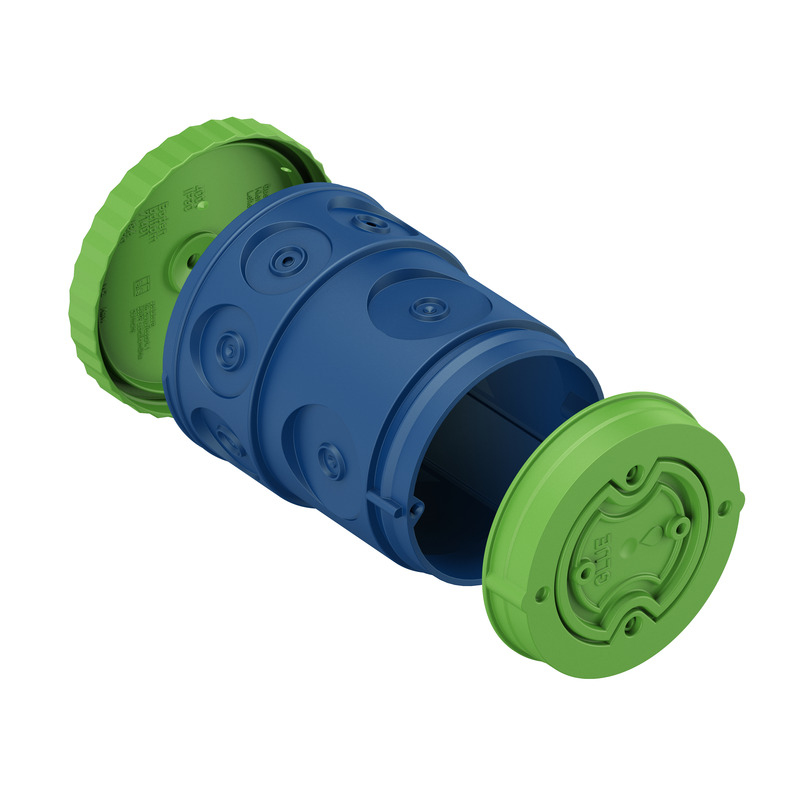

Large conduit box , for ceiling slab thickness up to 6.5 cm, with M5 threaded bushing (load capacity 10 kg) to accept a ceiling hook., protection class IP30, Halogen free
3-part, closed front part for UK-specific lamp mounting kit "ceilling-rose", Nail and adhexive mounting; Note: We strongly recommend use of the ES CR (97416001) screw, since this meets the particular requirements for fastening in the screw boss of this product and has also been tested in this combination.
| Rated operating voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| Suitable for | Concrete construction |
| UL Type Rating | not specified |
| Base unit colour | green |
|---|---|
| Cover colour | other |
| Width | 83.5 mm |
|---|---|
| Length | 83.5 mm |
| Height | 123 mm |
| Inner height | 120.5 mm |
| Weight | 0.081 kg |
| Halogen free | yes |
|---|---|
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| Type of fastening | Concrete construction |
|---|
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| EAN | 4013902686582 |
|---|---|
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 1 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| EAN / GTIN | 4013902686599 |
|---|---|
| Width | 0.493 m |
| Weight | 4.044 kg |
| Height | 0.356 m |
| Quantity | 44 pieces |
| Depth | 0.293 m |
| EAN / GTIN | 4013902686605 |
|---|---|
| Width | 0.8 m |
| Weight | 143.32 kg |
| Height | 1.92 m |
| Quantity | 528 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902686582 |
|---|---|
| Width | 0.084 m |
| Weight | 0.081 kg |
| Height | 0.123 m |
| Quantity | 1 pieces |
| Depth | 0.084 m |
