Description

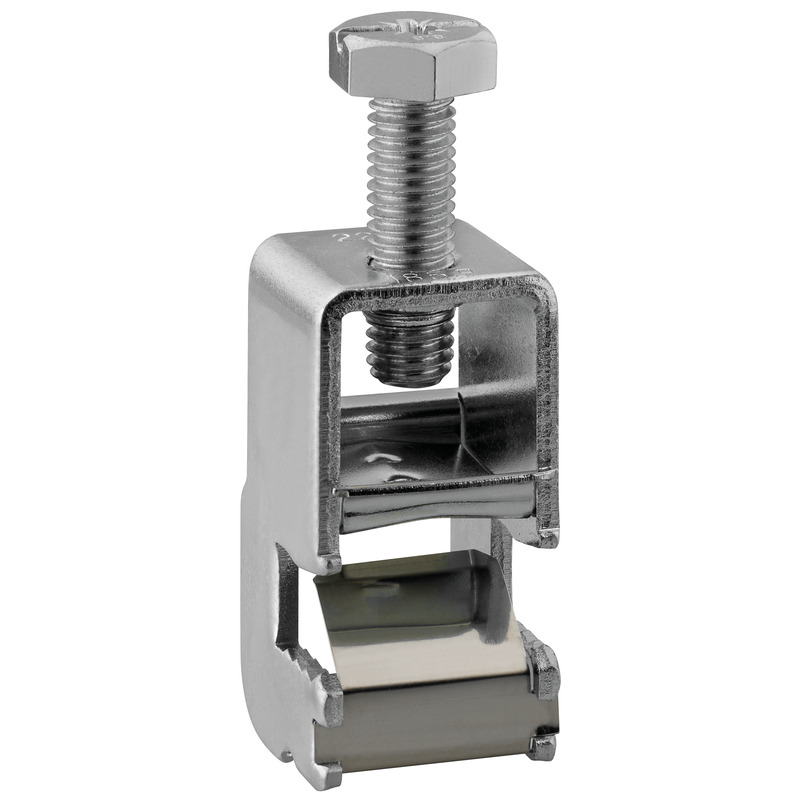

Busbar terminal, for copper rails 12/20/25/30 x 10 mm
for CU conductor 1x (50-185mm²) re/rm/sm/rf+AE
#07511801 | Dimensions: 28,5 x 29 x 53 mm
Busbar terminal
Technical Data
electrical characteristics
| Max. conductor cross section | 185 mm² |
|---|---|
| Rated current | 500 A |
| Number of poles | 1 |
| shockproof | No |
| Connection 1: Connection type | Screws |
| Connection 1: Clamping points per pole | 1 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Suitable for Al conductors | 0 |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 50 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 185 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 16 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 185 mm² |
Dimensions
| Width | 28.5 mm |
|---|---|
| Length | 29 mm |
| Height | 53 mm |
| Weight | 0.1038 kg |
mechanical properties
| Connection 1: Tightening moment | 20 Nm |
|---|
Sales Information
| EAN | 4013902623105 |
|---|---|
| ETIM Class | EC000001 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 1 |
Logistic data
Outer packaging
| EAN / GTIN | 4013902623112 |
|---|---|
| Width | 0.357 m |
| Weight | 2.81 kg |
| Height | 0.127 m |
| Quantity | 25 pieces |
| Depth | 0.257 m |
Pallet
| EAN / GTIN | 4013902623129 |
|---|---|
| Width | 0.8 m |
| Weight | 325.48 kg |
| Height | 1.67 m |
| Quantity | 2700 pieces |
| Depth | 1.2 m |
Piece
| EAN / GTIN | 4013902623105 |
|---|---|
| Width | 0.029 m |
| Weight | 0.1038 kg |
| Height | 0.053 m |
| Quantity | 1 pieces |
| Depth | 0.029 m |
Downloads
Download Data Sheet
Planningdata
Tender text
Tender text
(07511801.TXT 370 B)
Log in to download tender texts.
Similar products

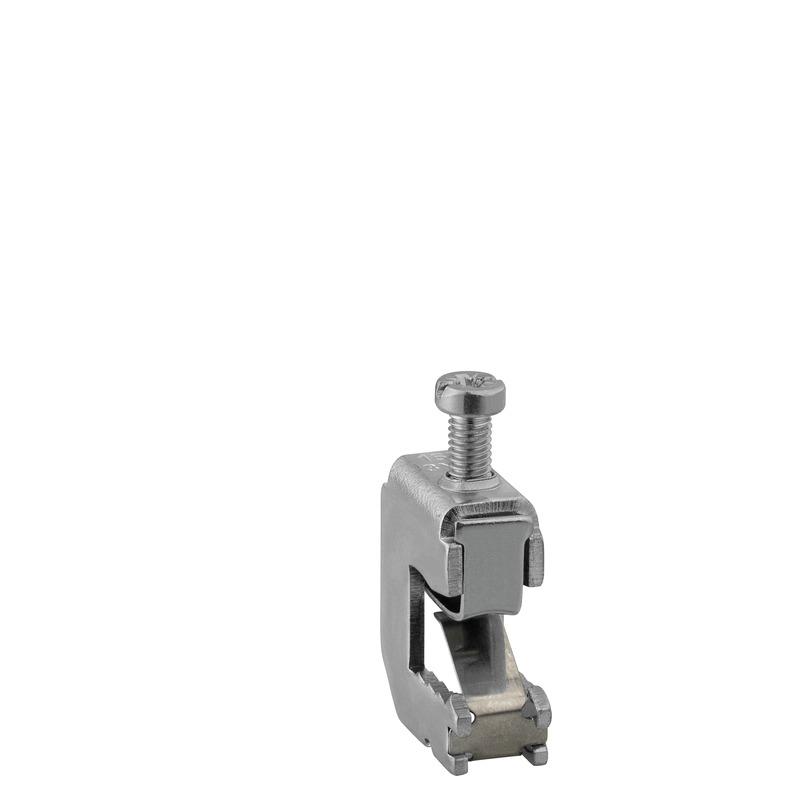

Busbar terminalSKL 116
Busbar terminal
SKL 116
Productnumber 07511601
for CU conductor 1x (1.5-16 mm²) re/rm/rf+AE
Busbar terminal, for copper rails 12/20/25/30 x 10 mm

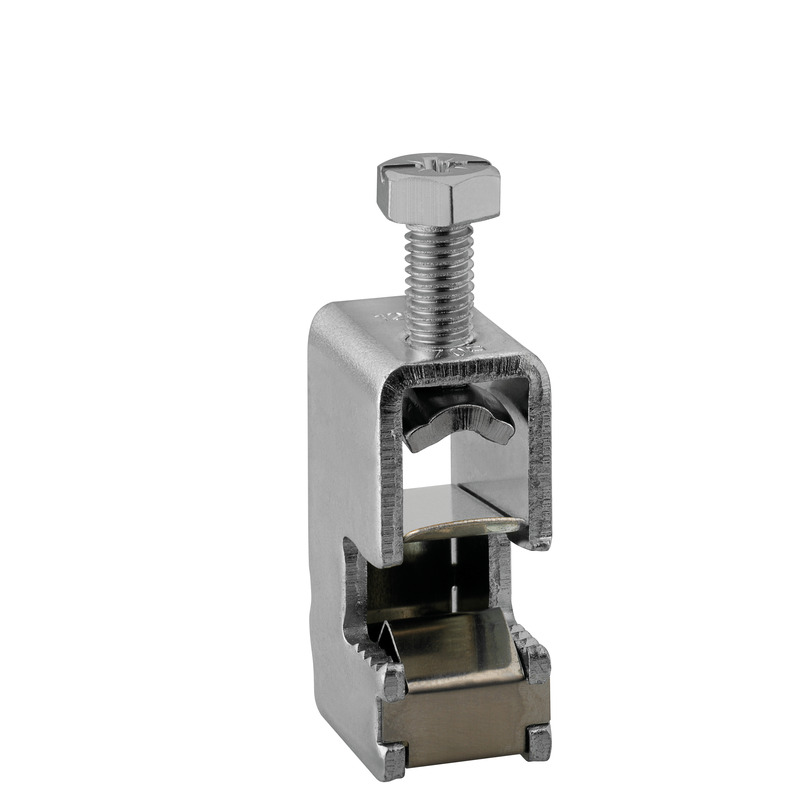

Busbar terminalSKL 135
Busbar terminal
SKL 135
Productnumber 07513501
for CU conductor 1x (4-35mm²) re/rm/sm/rf+AE,
lam. Flat copper...
Busbar terminal, for copper rails 12/20/25/30 x 10 mm

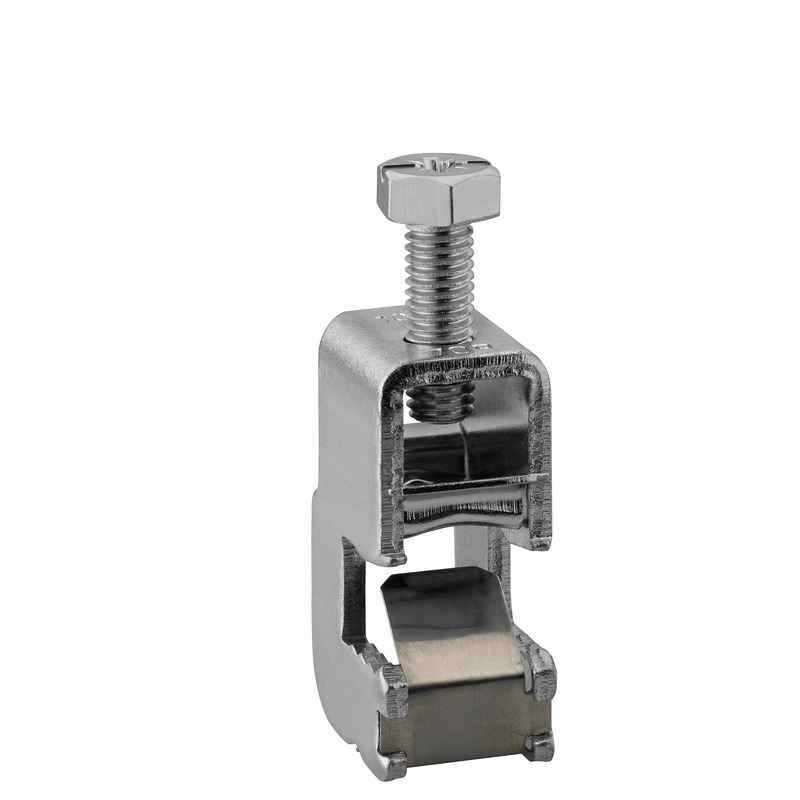

Busbar terminalSKL 170
Busbar terminal
SKL 170
Productnumber 07517001
for CU conductor 1x (16-70mm²) re/rm/sm/rf+AE,
lam. Flat copper...
Busbar terminal, for copper rails 12/20/25/30 x 10 mm

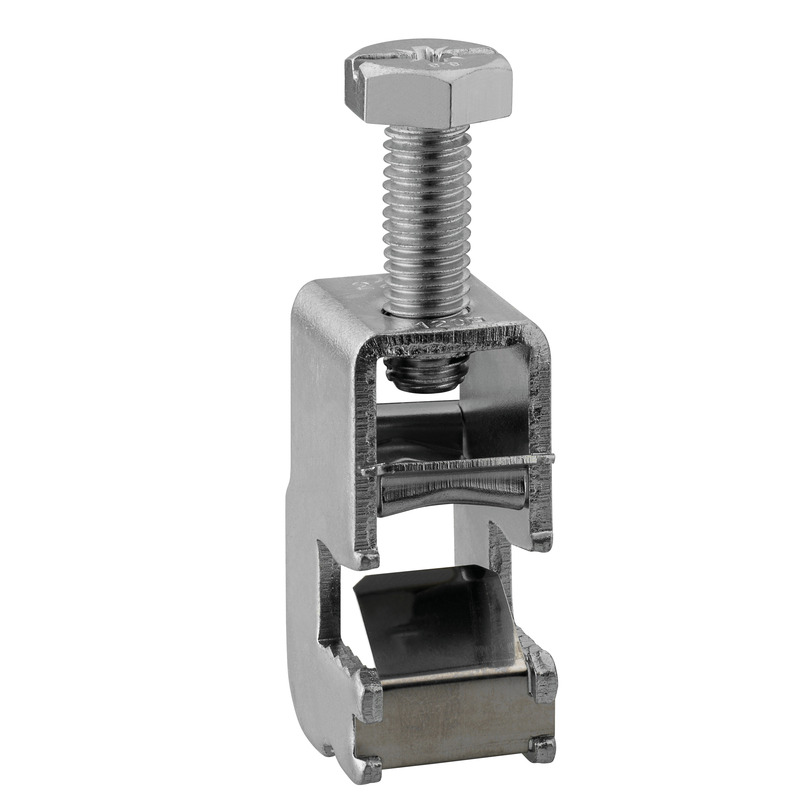

Busbar terminalSKL 112
