#40600001 | Dimensions: 127 x 127 x 75 mm
Junction box

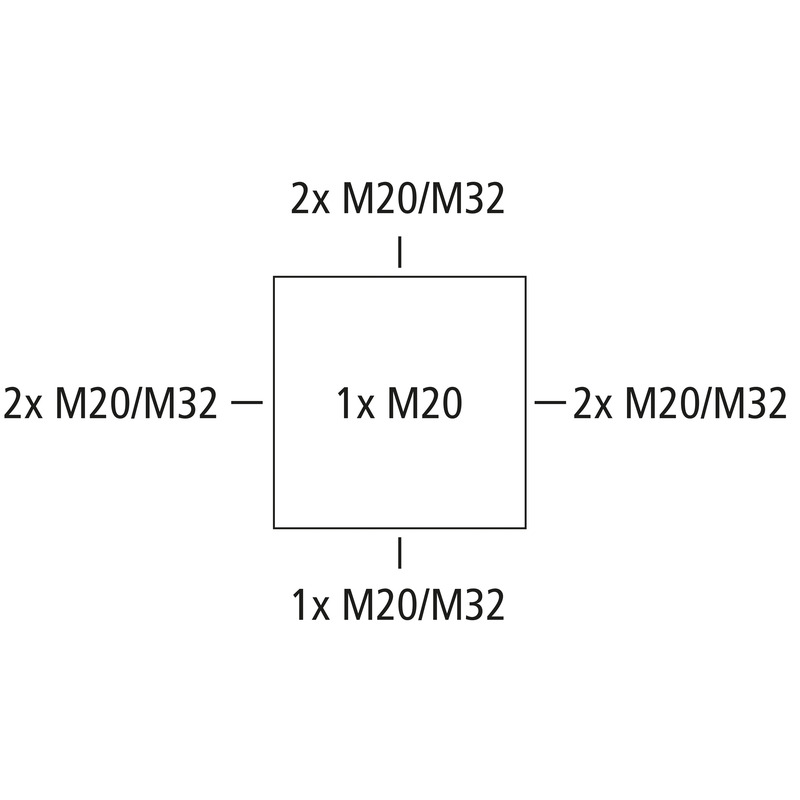

Junction box, protection class IP66/IP67/IP69, nominal cross-section 6 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M32, (1 rear, 7 side), internal fixing points, for installation in industrial environments and unprotected outdoor areas
black, Ui=1000 V AC, without terminals
Accessories supplied:
4 double membrane seals IP66 M32 sealing range 13 - 21 mm, cover retainer
| Rated insulation voltage AC | 1000 V |
|---|---|
| Rated insulation voltage DC | 1000 V |
| Max. conductor cross section | 6 mm² |
| Protection class | II |

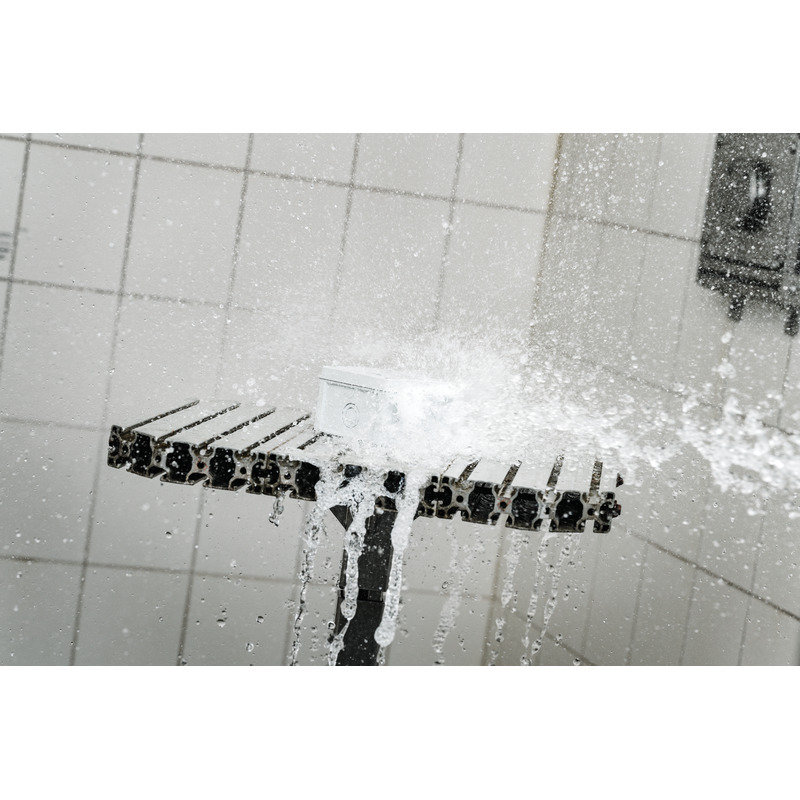

| Type of protection | IP66/IP67/IP69 |
| Terminal type | none |
| Base unit colour | black |
|---|---|
| Cover colour | black |
| Width | 127 mm |
|---|---|
| Length | 127 mm |
| Height | 75 mm |
| Inner length | 113 mm |
| Inner width | 113 mm |
| Inner height | 55 mm |
| Weight | 0.312 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V0 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| max. amount of terminals at 1,5² | 14 |
|---|---|
| max. amount of terminals at 2,5² | 10 |
| max. amount of terminals at 4² | 8 |
| max. amount of terminals at 6² | 5 |
| max. amount of wires at 1,5² | 40 |
|---|---|
| max. amount of wires at 2,5² | 30 |
| max. amount of wires at 4² | 24 |
| max. amount of wires at 10² | 15 |
| Impact strength | IK09 |
|---|---|
| Sealable | yes |
| Cover screw torque | 1.5 Nm |
| Type of fastening | Wall/ceiling mounting |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |

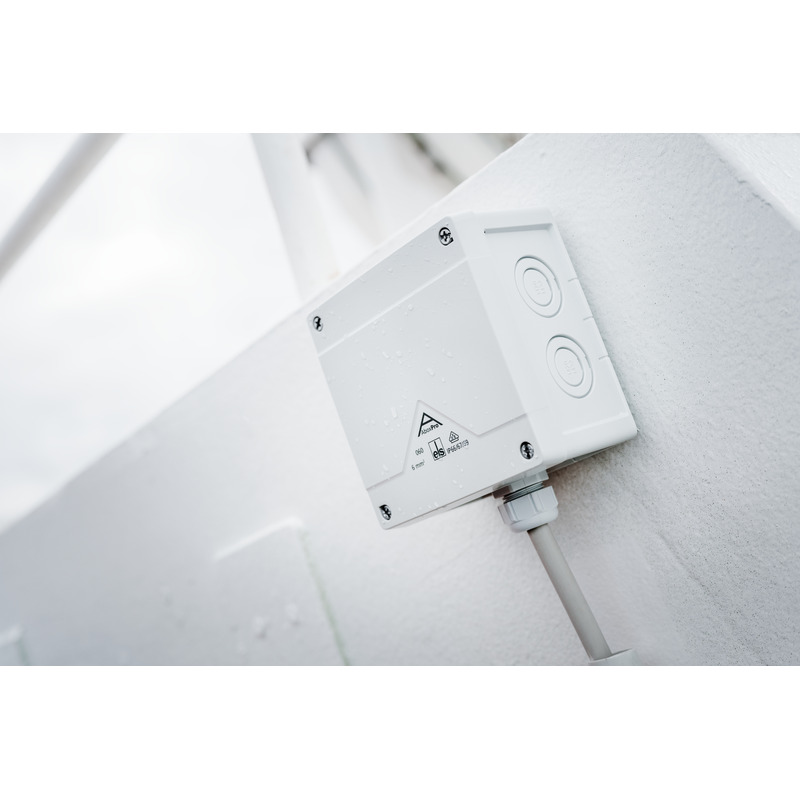

| Installation location | unprotected outdoor areas |
| EAN | 4013902664399 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
| Base unit material | Polycarbonate, glass-fibre reinforced |
|---|---|
| Cover material | Polycarbonate |
| Sealing material | Thermoplastic elastomer |
| Cover screw material | Stainless steel 1.4567 (V2A) |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|---|

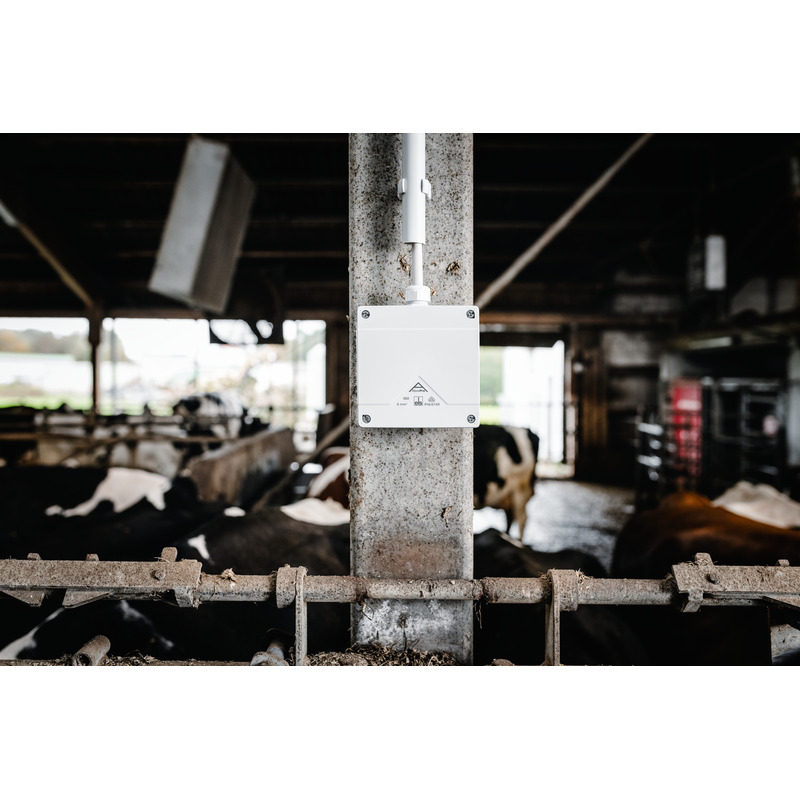

| Test mark | DLG (Ammonia resistance) |

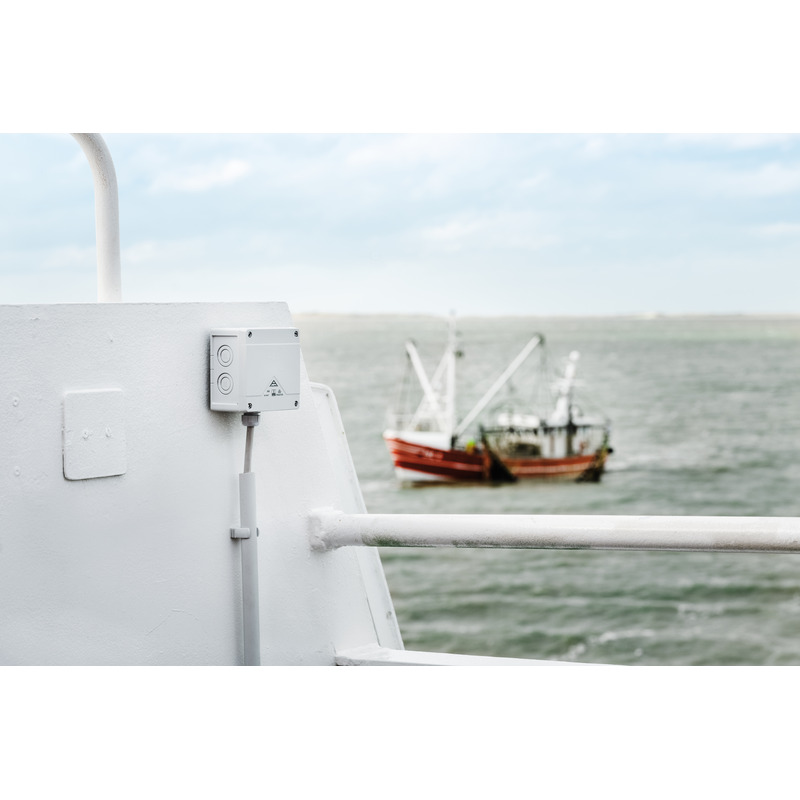

| Test mark | DNV (Class: Ships and Offshore Installations) |
| EAN / GTIN | 4013902664405 |
|---|---|
| Width | 0.507 m |
| Weight | 6.485 kg |
| Height | 0.277 m |
| Quantity | 20 pieces |
| Depth | 0.22 m |
| EAN / GTIN | 4013902664412 |
|---|---|
| Width | 0.8 m |
| Weight | 158.185 kg |
| Height | 0.981 m |
| Quantity | 420 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902664399 |
|---|---|
| Width | 0.127 m |
| Weight | 0.312 kg |
| Height | 0.075 m |
| Quantity | 1 pieces |
| Depth | 0.127 m |
Tender text
(40600001.TXT 1013 B)
Log in to download tender texts.
CAD-Data
(Download 3D-CAD-Data)
Log in to download tender texts.
Cable gland
KVR M20-MGM/sw
Productnumber 22702001
Sealing range 6 - 12 mm, Thread length 9 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69...
Cable gland
KVR M20-GDB/MGM/sw
Productnumber 22702101
Sealing range 7 - 14 mm, Thread length 9 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69...
Cable gland
KVR M32-MGM/sw
Productnumber 22703201
Sealing range 11 - 21 mm, Thread length 11 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69...
Double-membrane seals
DMS M20/sw
Productnumber 26002001
Sealing range 7 - 13 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M32/sw
Productnumber 26003201
Sealing range 13 - 21 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Mounting plate
Abox MPI 060
Productnumber 89510601
for Abox / Abox Pro 060
Mounting plate in melamine lined insulating material, 2.5 mm thickness, grey incl. fixing screws....
Standard rail
Abox 060 NS35
Productnumber 89530601
for Abox / Abox Pro 060
Standard rail in accordance with DIN EN 60715, 35 x 7.5 mm, incl. fixing screws. For mounting in...
Terminal holder
Abox 060 KH 221 4²
Productnumber 89600401
for position-fixed and elevated mounting of up to 6 terminals Wago...
Terminal holder incl. fixing material for mounting of Wago installation and terminal boxes in Abox...
Terminal block
Abox 060 KLS-6²
Productnumber 89640601
Screw terminal block for Abox/Abox Pro 060, 5-pole - 6 mm², In = 41 A,...
Connecting terminal in accordance with DIN EN 60998 (VDE 0613), Ui=690V. For assembly in junction...

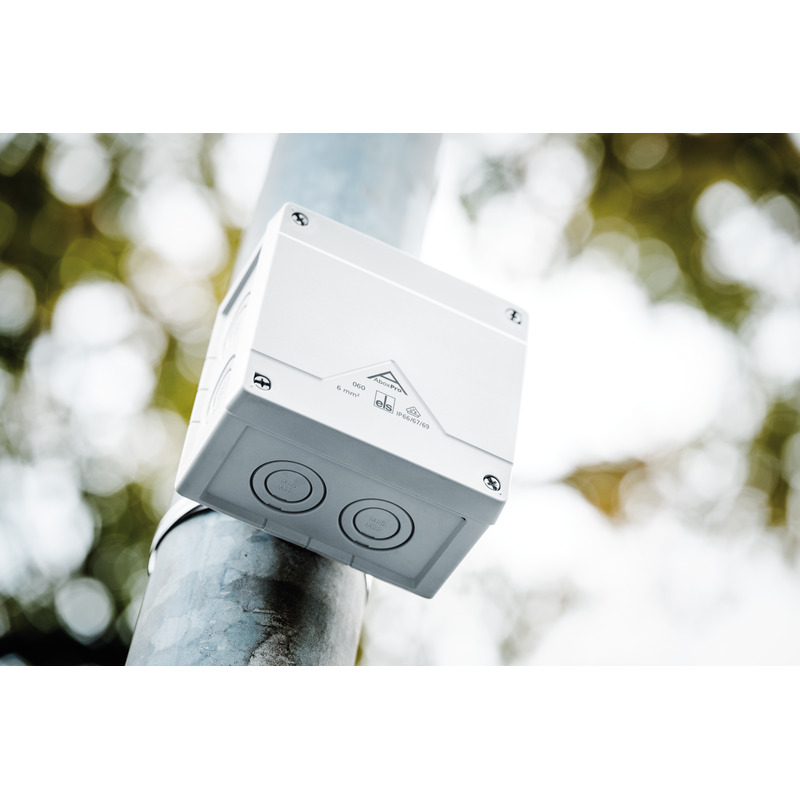

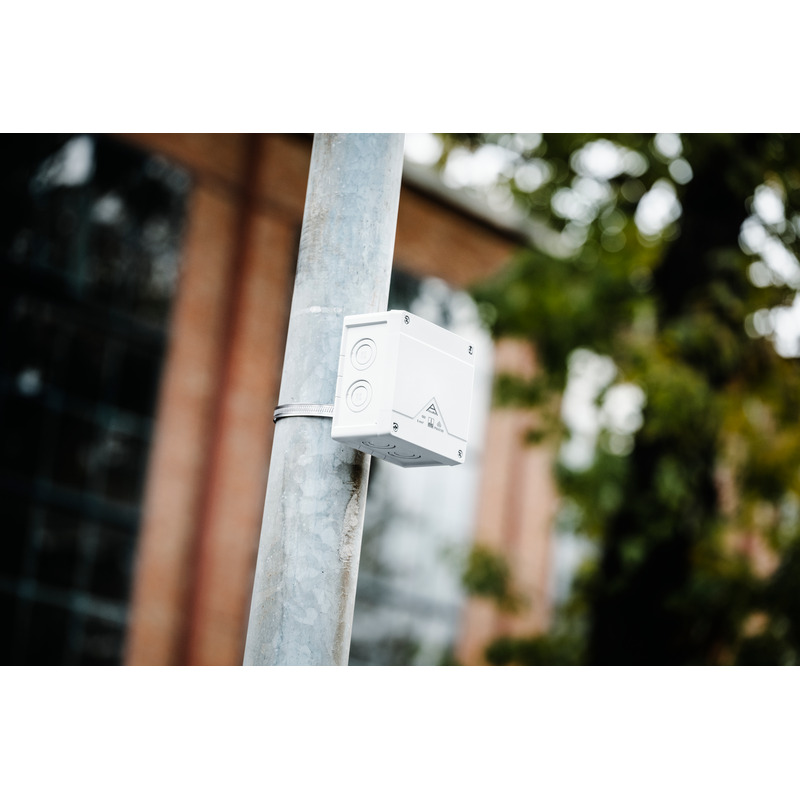

Mast/pipe fixing set
MABF 100-1
Productnumber 89602001
for junction boxes Abox / Abox Pro from 2024 onwards of the types Abox...
Mast/pipe fixing set in stainless steel V2A with fastening screws and quick release clamp for...
Cable tray fastening
KTB 1-100
Productnumber 89602901
Fixing element for mounting of enclosures on cable tray systems with elongated hole width of 7 mm...
Cover retainer
TG DVS-42
Productnumber 18200601
for TG 88, TG 1208, TG 1212, TG 1608, Abox Pro 025 - 350
spare cover retainer, Set = 10 pcs.

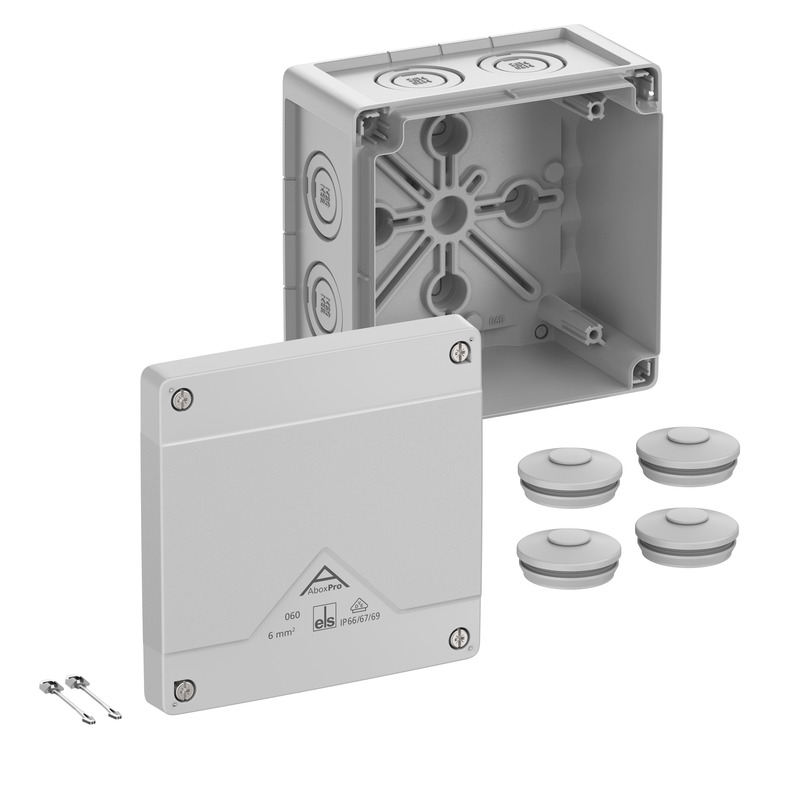

Junction box
Abox Pro 060-L
Productnumber 40640001
grey, Ui=1000 V AC, without terminals
Junction box, protection class IP66/IP67/IP69, nominal cross-section 6 mm², certified by VDE (DIN EN...

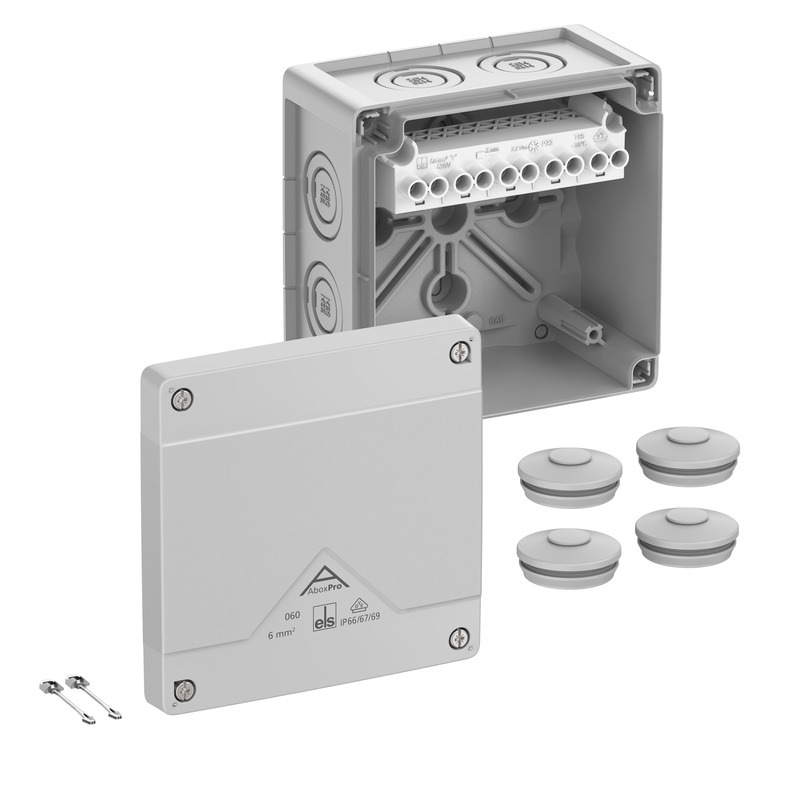

Junction box
Abox Pro 060-6²
Productnumber 40642001
grey, Ui=690 V AC, In=41 A, with raised screw terminal block, 5-pole,...
Junction box, protection class IP66/IP67/IP69, nominal cross-section 6 mm², certified by VDE (DIN EN...

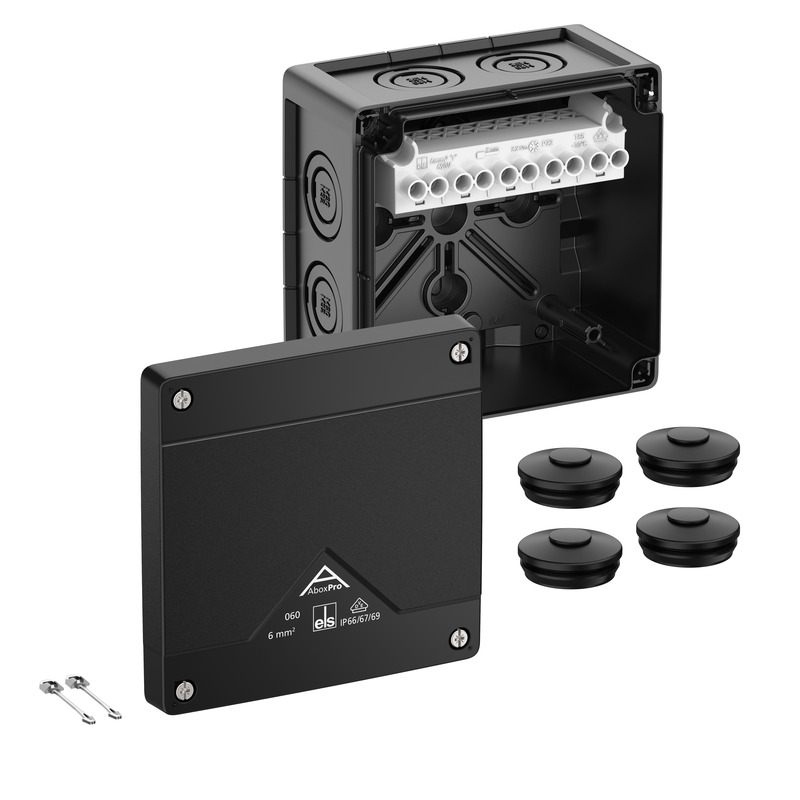

Junction box
